BOSCH

Bosch 0986479A78 Brake Disc

SKU: 0986479A78
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£48.11 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
1 (E87)
Description Cylinder Capacity Horse Power Year
130 i 2996 CCM 258 HP 03/2007 - 06/2011
130 i 2996 CCM 265 HP 09/2005 - 02/2007
1 (E81)
Description Cylinder Capacity Horse Power Year
130 i 2996 CCM 265 HP 09/2006 - 12/2011
123 d 1995 CCM 204 HP 03/2007 - 12/2011
130 i 2996 CCM 258 HP 09/2006 - 12/2011
3 (E90)
Description Cylinder Capacity Horse Power Year
330 i 2996 CCM 258 HP 12/2004 - 10/2011
3 Touring (E91)
Description Cylinder Capacity Horse Power Year
325 i 2996 CCM 211 HP 09/2007 - 06/2012
318 d 1995 CCM 136 HP 07/2007 - 06/2012
318 i 1995 CCM 136 HP 09/2007 - 03/2012
320 i 1995 CCM 150 HP 09/2005 - 06/2012
325 i 2497 CCM 218 HP 12/2004 - 08/2008
330 i 2996 CCM 258 HP 08/2005 - 08/2007
318 d 1995 CCM 122 HP 09/2005 - 08/2007
3 Coupe (E92)
Description Cylinder Capacity Horse Power Year
330 i 2996 CCM 272 HP 09/2006 - 02/2010
330 i 2996 CCM 258 HP 03/2010 - 06/2013
3 Convertible (E93)
Description Cylinder Capacity Horse Power Year
325 d 2993 CCM 204 HP 09/2009 - 09/2013
320 i 1995 CCM 170 HP 03/2007 - 10/2013
325 i 2996 CCM 218 HP 03/2007 - 12/2013
330 i 2996 CCM 272 HP 03/2007 - 10/2013
325 i 2497 CCM 218 HP 12/2006 - 02/2010
330 i 2996 CCM 258 HP 03/2010 - 10/2013
330 d 2993 CCM 245 HP 01/2009 - 09/2013
325 i 2996 CCM 211 HP 10/2006 - 12/2013

The Bosch 0986479A78 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 324 mm outer diameter, 22 mm brake disc thickness, 20.4 mm minimum thickness, and slotted/perforated and Vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

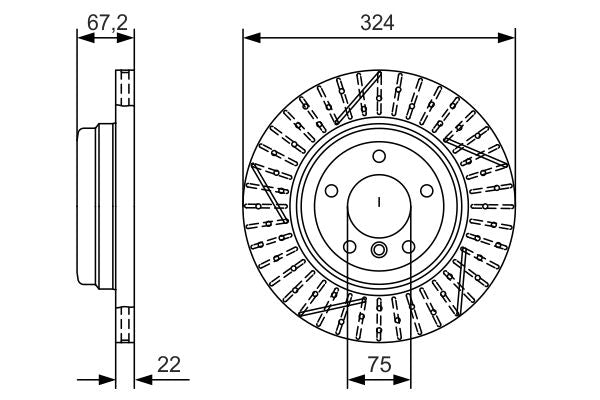

Function : Brake Disc
Outer Diameter [mm] : 324
Brake Disc Thickness [mm] : 22
Minimum thickness [mm] : 20.4
Height [mm] : 67.2
Bolt Hole Circle Ø [mm] : 120
Brake Disc Type : slotted/perforated
Brake Disc Type : Vented
Centering Diameter [mm] : 75
Number of Holes : 5
Surface : Coated
Machining : High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
Bore Diameter up to [mm] : 14.5
  • Vendor BOSCH
  • SKU 0986479A78
  • Barcode 4047025362849
  • BMW : 34 21 6 787 931 34 21 6 795 755
  • APEC : DSK3050
  • BLUE PRINT : ADB114396
  • BORG & BECK : BBD5266
  • BREMBO : 09.C246.11
  • DELPHI : BG4714C
  • FEBI BILSTEIN : 43800
  • FTE : 9071316
  • FTE : 9081266
  • HELLA : 8DD 355 123-031
  • MINTEX : MDC2716
  • TEXTAR : 92231203
  • BOSCH : BD2138
