BOSCH

Bosch 0986479A83 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986479A83

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock

Out of Stock

£69.32 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

SUBARU

BRZ (ZC6)

Description	Cylinder Capacity	Horse Power	Year
2.0 (ZC6)	1998 CCM	200 HP	From 06/2012

LEGACY V Estate (BR)

Description	Cylinder Capacity	Horse Power	Year
2.5 GT AWD (BR9)	2457 CCM	265 HP	07/2010 - 12/2014

LEGACY V (BM)

Description	Cylinder Capacity	Horse Power	Year
2.5 GT AWD (BM9)	2457 CCM	265 HP	07/2010 - 12/2014

OUTBACK (BR)

Description	Cylinder Capacity	Horse Power	Year
2.0 D AWD (BRD)	1998 CCM	150 HP	From 09/2009
2.5 i AWD (BR9)	2457 CCM	167 HP	From 09/2009
3.6 R AWD (BRF)	3630 CCM	260 HP	From 09/2009
2.5 i AWD	2457 CCM	170 HP	05/2009 - 12/2014
2.5 i AWD (BRM)	2498 CCM	173 HP	From 01/2013
2.5 i AWD	2457 CCM	175 HP	01/2012 - 12/2014

TOYOTA

GT 86 Coupe (ZN6_)

Description	Cylinder Capacity	Horse Power	Year
2.0 (ZN6AC_, ZN6BC_, ZN6K)	1998 CCM	200 HP	From 03/2012

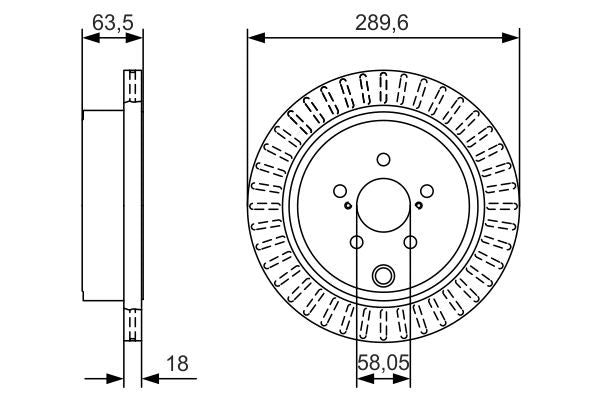

The Bosch 0986479A83 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 289.6 mm outer diameter, 18 mm brake disc thickness, 16 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 289.6

Brake Disc Thickness [mm] : 18

Minimum thickness [mm] : 16

Height [mm] : 63.5

Bolt Hole Circle Ø [mm] : 100

Brake Disc Type : Vented

Centering Diameter [mm] : 58.05

Number of Holes : 5

Surface : Oiled

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 13
