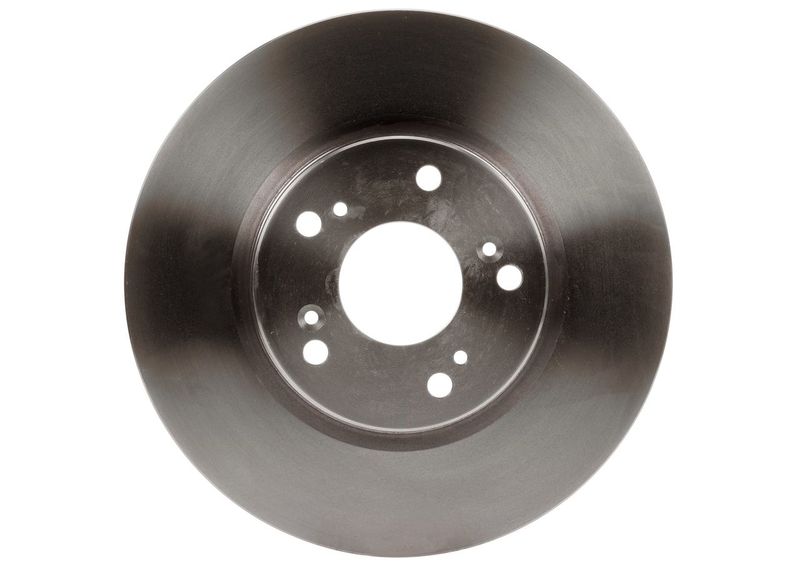

Bosch 0986479B02 Brake Disc - 1

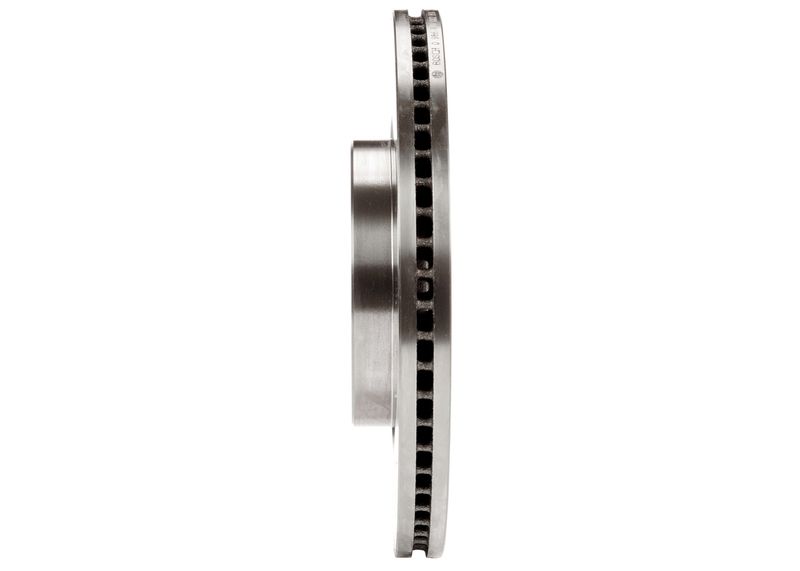

Bosch 0986479B02 Brake Disc - 2

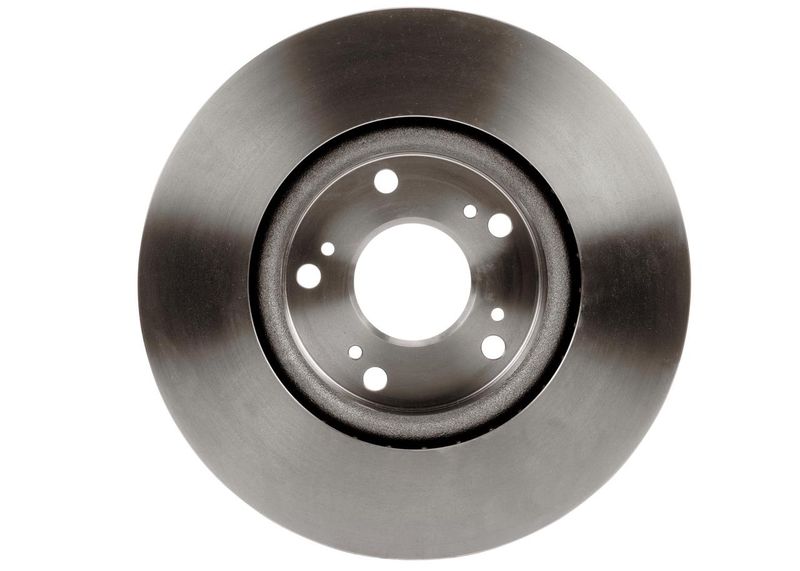

Bosch 0986479B02 Brake Disc - 3

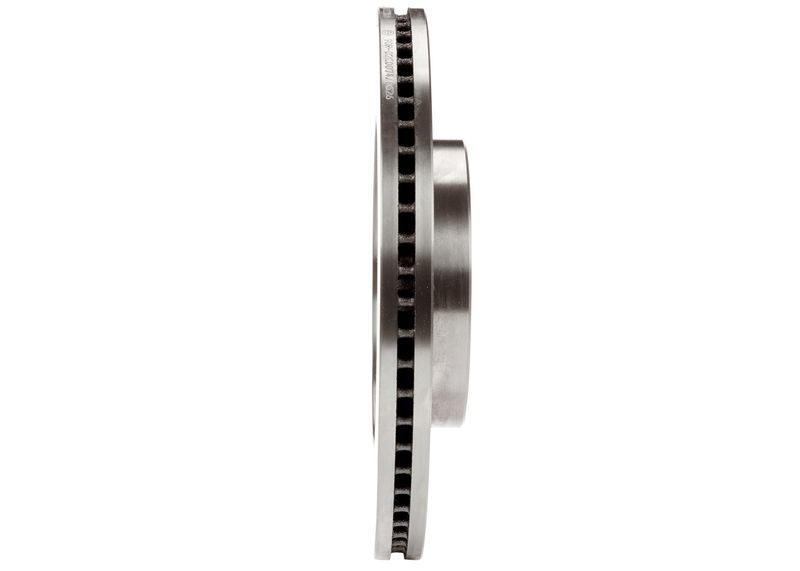

Bosch 0986479B02 Brake Disc - 4
Bosch 0986479B02 Brake Disc - 5

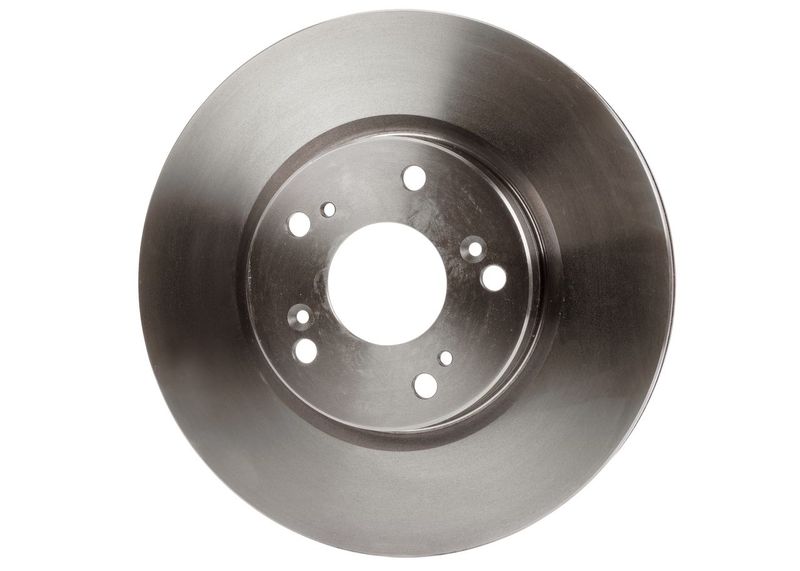

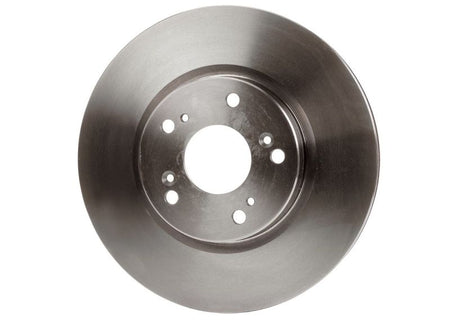

Bosch 0986479B02 Brake Disc - 6
Bosch 0986479B02 Brake Disc - 1
Bosch 0986479B02 Brake Disc - 2
Bosch 0986479B02 Brake Disc - 3
Bosch 0986479B02 Brake Disc - 4
Bosch 0986479B02 Brake Disc - 5
Bosch 0986479B02 Brake Disc - 6
BOSCH

Bosch 0986479B02 Brake Disc

SKU: 0986479B02
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£81.66 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HONDA
CIVIC IX (FK)
Description Cylinder Capacity Horse Power Year
1.8 i-VTEC (FK2) 1798 CCM 141 HP 02/2012 - 12/2016
2.2 i-DTEC (FK3) 2199 CCM 150 HP 02/2012 - 12/2016
1.6 i-DTEC (FK3) 1597 CCM 120 HP 02/2013 - 12/2016
CIVIC IX Tourer (FK)
Description Cylinder Capacity Horse Power Year
1.6 i-DTEC (FK3) 1597 CCM 120 HP 01/2014 - 12/2016
1.8 i-VTEC (FK2) 1798 CCM 141 HP 01/2014 - 12/2016
CIVIC X Saloon (FC_)
Description Cylinder Capacity Horse Power Year
1.5 VTEC (FC1) 1498 CCM 182 HP 08/2016 - 12/2022
1.6 i-DTEC (FC8) 1597 CCM 120 HP 05/2018 - 12/2022
CIVIC X Hatchback (FC_, FK_)
Description Cylinder Capacity Horse Power Year
1.5 VTEC (FK7) 1498 CCM 182 HP 02/2017 - 12/2022
1.0 VTEC (FK6) 988 CCM 129 HP 02/2017 - 12/2022
1.6 i-DTEC (FK9) 1597 CCM 120 HP 01/2018 - 12/2022
1.0 VTEC 988 CCM 126 HP 07/2018 - 12/2022

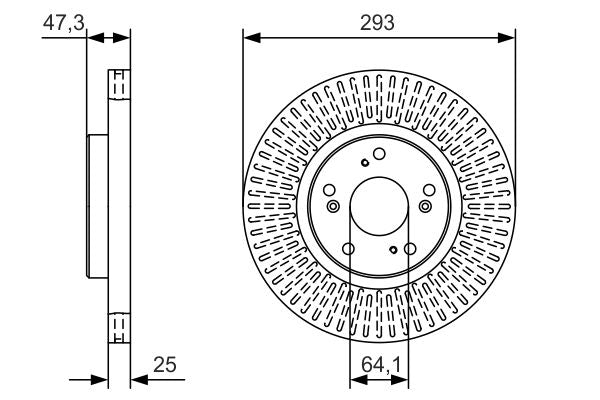

The Bosch 0986479B02 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 293 mm outer diameter, 25 mm brake disc thickness, 23 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 293
Brake Disc Thickness [mm] : 25
Minimum thickness [mm] : 23
Height [mm] : 47.3
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 64.1
Number of Holes : 5
Surface : Oiled
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.7
  • Vendor BOSCH
  • SKU 0986479B02
  • Barcode 4047025363013
  • HONDA : 45251-TBA-A00 45251-TGL-E00 45251-TGN-E00 45251-TV2-E00 45251-TV2-E01 45251-TV2-E02
  • APEC : DSK3004
  • APEC : SDK6752
  • BLUE PRINT : ADH243122
  • BORG & BECK : BBD5320
  • BORG & BECK : BBD5593
  • BREMBO : 09.C313.11
  • BREMBO : 09.D881.11
  • DELPHI : BG4698C
  • Fahren : FBD6752
  • FEBI BILSTEIN : 108477
  • FTE : 9071324
  • FTE : 9081130
  • FTE : 9082804
  • HELLA : 8DD 355 119-571
  • MEYLE : 31-15 521 0059
  • MINTEX : MDC2535
  • NAPA : NBD5230
  • National : NBD1862
  • SKF : VKBD 80289 V2
  • TEXTAR : 92257303
  • TRW : DF6689
  • VALEO : 673358
  • BOSCH : BD2003
