Bosch 0986479B09 Brake Disc
Your selected vehicle
Regular price
£49.75
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

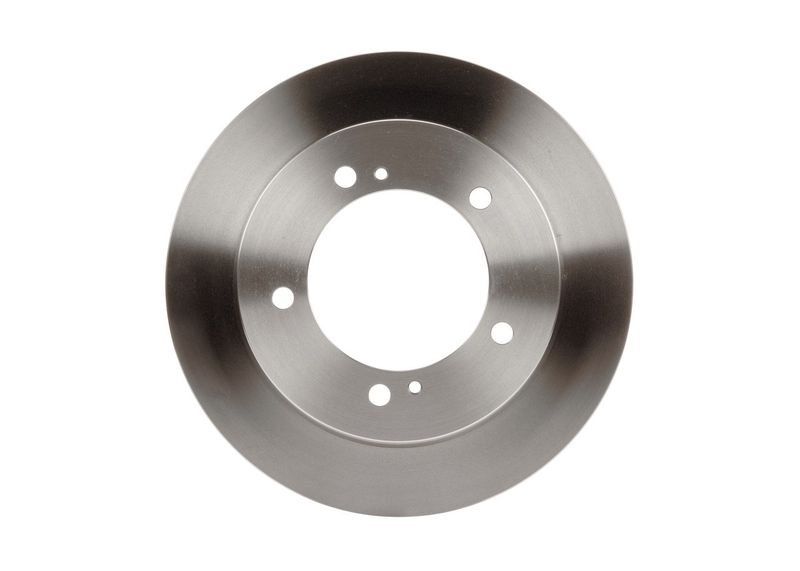

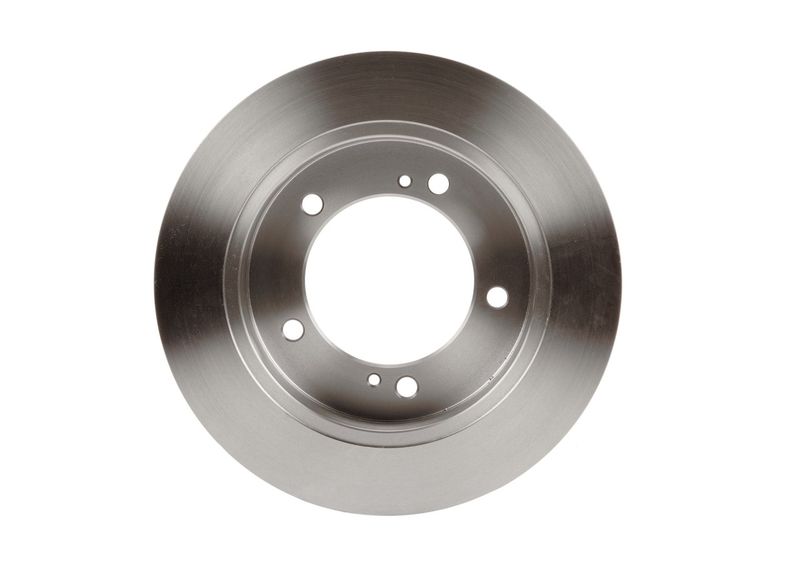

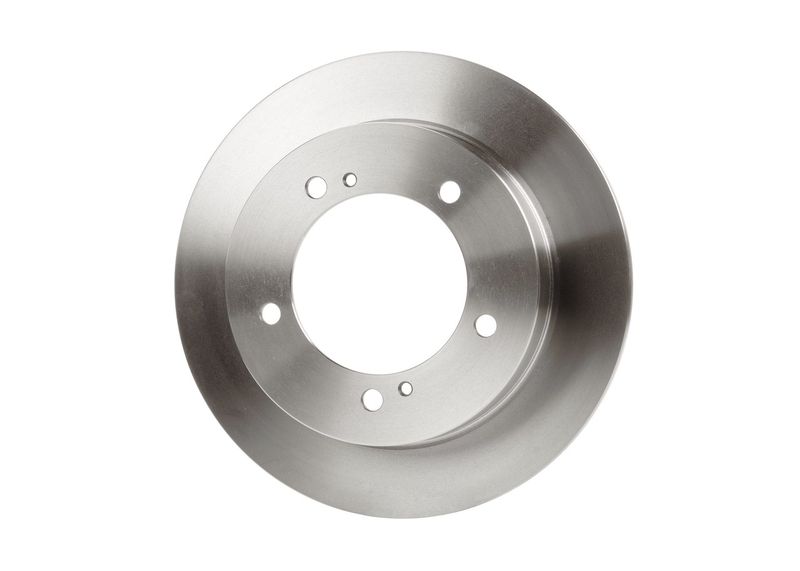

The Bosch 0986479B09 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 289.6 mm outer diameter, 10 mm brake disc thickness, 8 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc

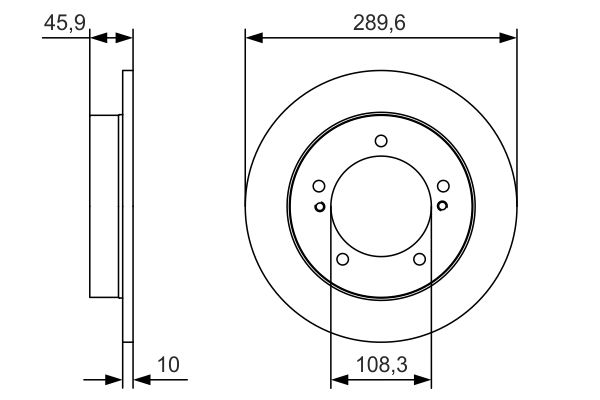

Outer Diameter [mm] :
289.6
Brake Disc Thickness [mm] :
10
Minimum thickness [mm] :
8
Height [mm] :
45.9
Bolt Hole Circle Ø [mm] :
139.7
Brake Disc Type :
solid
Centering Diameter [mm] :
108.3
Number of Holes :
5
Surface :
Oiled
Bore Diameter up to [mm] :
12.8
- Vendor BOSCH
- SKU 0986479B09
- SUZUKI : 55211-76J00 55211-76J01 55211-76J02
- APEC : DSK2941
- APEC : SDK6713
- BLUE PRINT : ADK84325
- BORG & BECK : BBD5251
- BREMBO : 08.B304.10
- DELPHI : BG4289
- Fahren : FBD6713
- FEBI BILSTEIN : 108403
- FTE : 9072362
- FTE : 9082899
- HELLA : 8DD 355 117-941
- MINTEX : MDC2337
- NAPA : NBD5642
- SKF : VKBD 80468 S2
- TEXTAR : 92237300
- TRW : DF7839
- VALEO : 673720
- BOSCH : BD2010
