Bosch 0986479B15 Brake Disc

5.0/5 78 reviews
SKU: 0986479B15

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock
Out of Stock
£103.92 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

MAZDA
6 Estate (GJ, GL)
Description Cylinder Capacity Horse Power Year
2.2 D (GJ2FW, GJ692) 2191 CCM 175 HP 08/2012 - 02/2018
2.0 (GJEFW) 1998 CCM 146 HP From 01/2013
2.0 (GJEFW) 1998 CCM 165 HP From 01/2013
2.2 D 2191 CCM 150 HP 10/2012 - 12/2020
2.5 2488 CCM 192 HP From 12/2012
2.2 D AWD 2191 CCM 175 HP From 02/2015
2.2 D AWD 2191 CCM 150 HP 12/2012 - 12/2020
2.5 2488 CCM 194 HP From 03/2018
6 Saloon (GJ, GL)
Description Cylinder Capacity Horse Power Year
2.2 D (GJ2FP, GJ1021, GJ1022, GL1021) 2191 CCM 175 HP From 12/2012
2.0 (GJ2, GL2, GL6) 1998 CCM 146 HP From 01/2013
2.0 (GJEFP) 1998 CCM 165 HP From 01/2013
2.5 (GJ5FP, GL1032, GL1033) 2488 CCM 192 HP From 01/2013
2.2 D (GJ2FP) 2191 CCM 150 HP 12/2012 - 11/2020
2.0 1998 CCM 150 HP 12/2012 - 02/2018
2.5 2488 CCM 194 HP From 03/2018
2.5 (GJ5FP, GL1032, GL1033) 2488 CCM 231 HP From 03/2018
2.5 (GJ5FP, GL1032, GL1033) 2488 CCM 190 HP From 03/2018
CX-5 (KE, GH)
Description Cylinder Capacity Horse Power Year
2.0 (KEEFW) 1998 CCM 165 HP 11/2011 - 02/2017
2.0 AWD (KEEAW) 1998 CCM 160 HP 11/2011 - 02/2017
2.2 D (KE2FW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE2AW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE102) 2191 CCM 175 HP 04/2012 - 02/2017
2.5 AWD 2488 CCM 192 HP 02/2015 - 02/2017
CX-5 (KF)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 165 HP From 05/2017
2.0 AWD 1998 CCM 160 HP From 05/2017
2.5 AWD 2488 CCM 194 HP From 05/2017
2.2 D (KF6W) 2191 CCM 150 HP 05/2017 - 12/2024
2.2 D AWD (KFGW) 2191 CCM 150 HP 05/2017 - 12/2024
2.2 D AWD (KF4W2) 2191 CCM 175 HP 05/2017 - 02/2018
2.0 AWD 1998 CCM 165 HP From 06/2018
2.0 1998 CCM 150 HP From 03/2018
2.0 AWD 1998 CCM 150 HP From 03/2018
2.5 2488 CCM 194 HP 03/2019 - 11/2022
2.0 SKYACTIV-G 1998 CCM 163 HP From 03/2018
2.0 SKYACTIV-G AWD 1998 CCM 163 HP From 03/2018

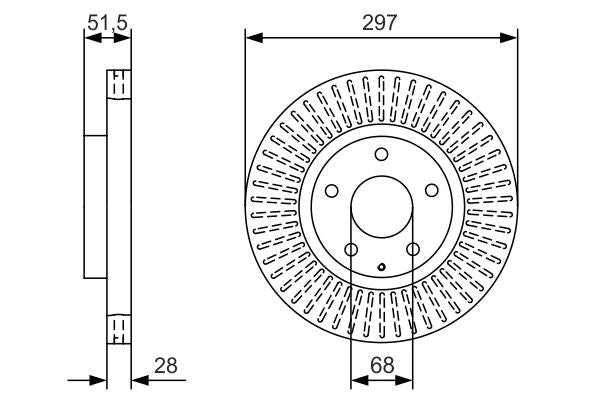

The Bosch 0986479B15 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 297 mm outer diameter, 28 mm brake disc thickness, 26 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 297
Brake Disc Thickness [mm] : 28
Minimum thickness [mm] : 26
Height [mm] : 51.5
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 68
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.4
  • Vendor BOSCH
  • SKU 0986479B15
  • Barcode 4047025363099
  • MAZDA : GBFT-33-251A GHP9-33-251A GHR1-33-251 GHR1-33-251A KD45-33-251 K011-33-251A K011-33-251B
  • APEC : DSK3023
  • APEC : DSK3365
  • APEC : SDK6763
  • APEC : SDK6940
  • BLUE PRINT : ADM543123
  • BORG & BECK : BBD5302
  • BORG & BECK : BBD5519
  • BREMBO : 09.C421.11
  • BREMBO : 09.C654.11
  • BREMBO : 09.C654.75
  • DELPHI : BG4562C
  • Fahren : FBD6763
  • FEBI BILSTEIN : 108417
  • FTE : 9071156
  • FTE : 9081123
  • HELLA : 8DD 355 119-581
  • MEYLE : 35-15 521 0025/PD
  • MEYLE : 35-83 521 0044/PD
  • MINTEX : MDC2536
  • NAPA : NBD5210
  • NAPA : NBD5556
  • SKF : VKBD 80147 V2
  • TEXTAR : 92257403
  • TEXTAR : 92257405
  • TRW : DF8052
  • VALEO : 672841
  • BOSCH : BD2016
  • BOSCH : E1 90R-02C0349/1225
