BOSCH

Bosch 0986479B18 Brake Disc

SKU: 0986479B18
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£76.13 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

LAND ROVER
RANGE ROVER SPORT I (L320)
Description Cylinder Capacity Horse Power Year
5.0 4x4 4999 CCM 506 HP 04/2009 - 03/2013
5.0 4x4 4999 CCM 510 HP 09/2009 - 03/2013
RANGE ROVER IV (L405)
Description Cylinder Capacity Horse Power Year
3.0 SDV6 4x4 2993 CCM 249 HP 08/2012 - 01/2016
3.0 TDV6 4x4 2993 CCM 258 HP 08/2012 - 09/2021
4.4 SDV8 4x4 4367 CCM 340 HP 08/2012 - 09/2021
5.0 SCV8 4x4 5000 CCM 510 HP 08/2012 - 09/2021
3.0 SCV6 4x4 2995 CCM 340 HP 10/2013 - 09/2021
3.0 TDV6 4x4 2993 CCM 211 HP 10/2013 - 01/2016
3.0 SDV6 Hybrid 4x4 2993 CCM 340 HP 10/2013 - 09/2021
5.0 V8 4x4 5000 CCM 375 HP 12/2013 - 01/2016
4.4 SDV8 4x4 4367 CCM 313 HP 08/2013 - 09/2021
5.0 SCV8 4x4 5000 CCM 550 HP 06/2015 - 09/2021
3.0 SCV6 4x4 2995 CCM 380 HP 06/2015 - 09/2021
3.0 SDV6 Hybrid 4x4 2993 CCM 354 HP 06/2015 - 09/2021
RANGE ROVER SPORT II (L494)
Description Cylinder Capacity Horse Power Year
5.0 SCV8 4x4 4999 CCM 510 HP 04/2013 - 12/2018
3.0 SCV6 4x4 2995 CCM 340 HP 04/2013 - 12/2019
3.0 SDV6 4x4 2993 CCM 292 HP 04/2013 - 12/2016
4.4 SDV8 4x4 4367 CCM 340 HP 10/2013 - 03/2022
3.0 SDV6 Hybrid 4x4 2993 CCM 340 HP 10/2013 - 03/2022
3.0 SDV6 4x4 2993 CCM 306 HP 09/2014 - 03/2022
3.0 SCV6 4x4 2995 CCM 380 HP 06/2015 - 12/2018
3.0 SDV6 Hybrid 4x4 2993 CCM 354 HP 06/2015 - 12/2017

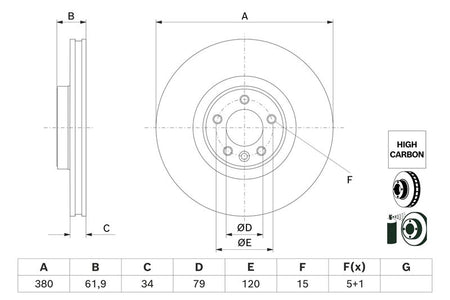

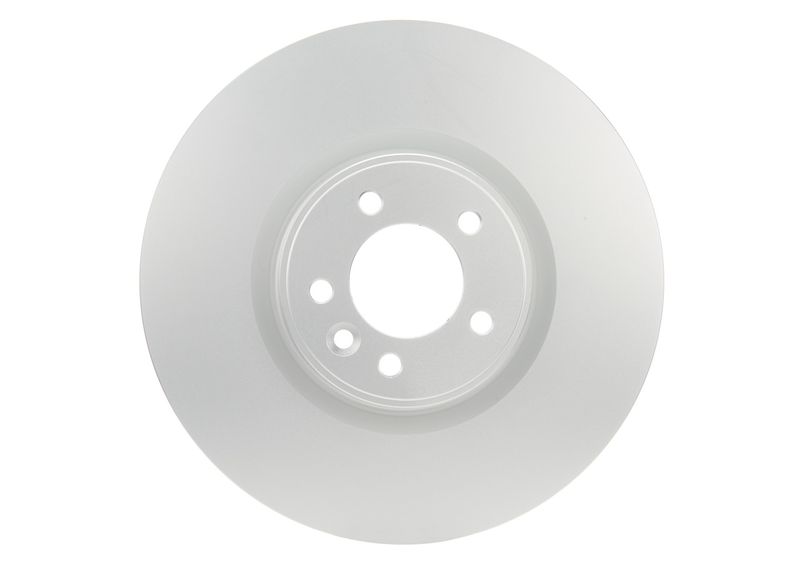

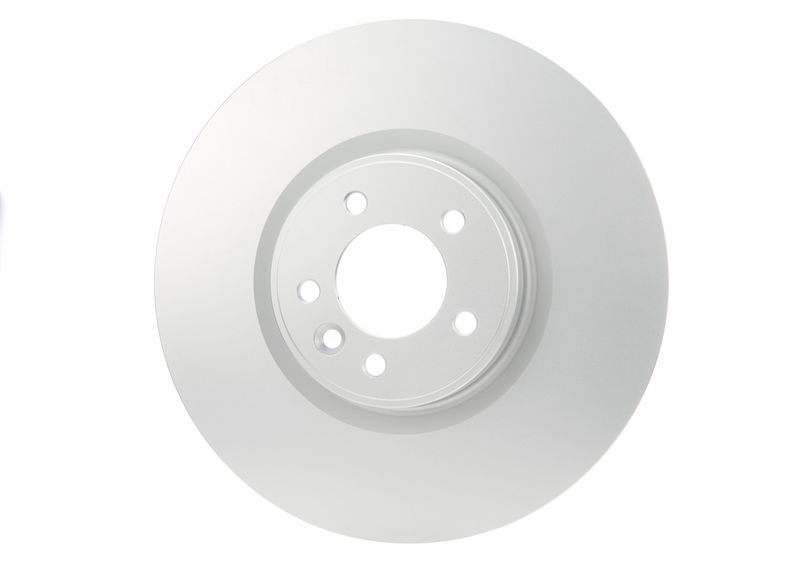

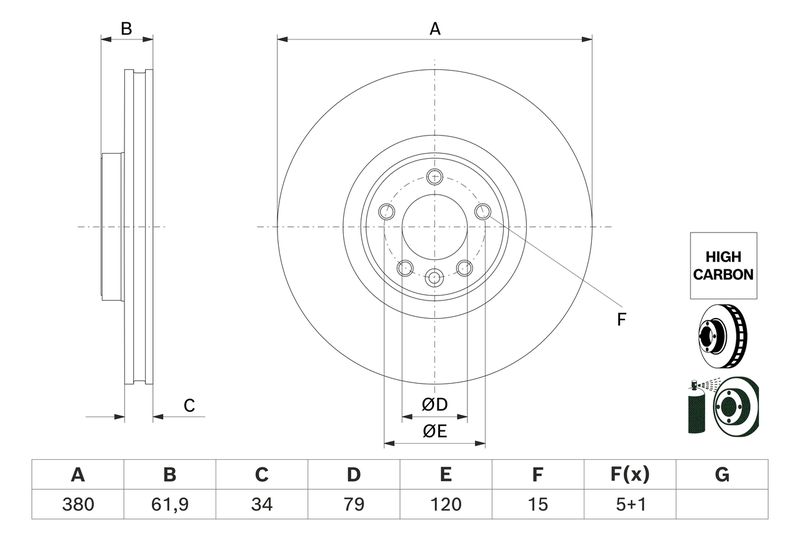

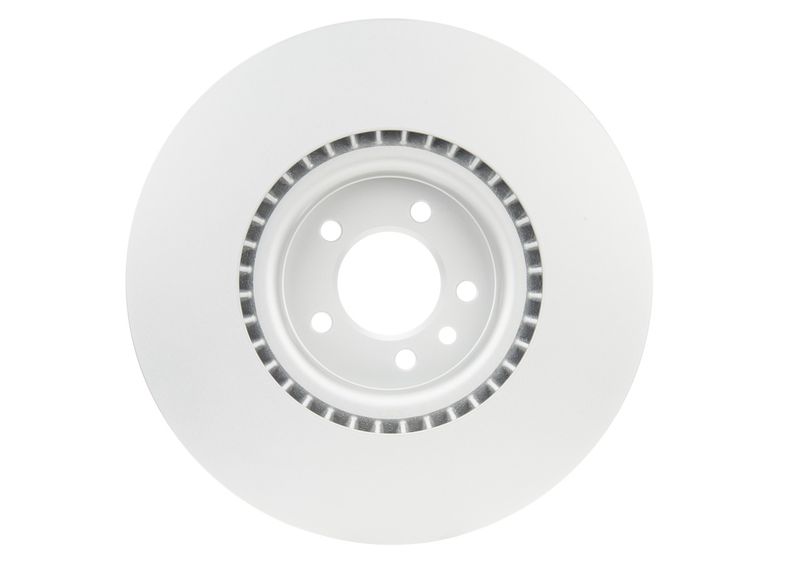

The Bosch 0986479B18 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 380 mm outer diameter, 34 mm brake disc thickness, 31 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 380
Brake Disc Thickness [mm] : 34
Minimum thickness [mm] : 31
Height [mm] : 61.9
Bolt Hole Circle Ø [mm] : 120
Brake Disc Type : Vented
Centering Diameter [mm] : 79
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15
  • Vendor BOSCH
  • SKU 0986479B18
  • Barcode 4047025363129
  • ROVER : LR016176
  • LAND ROVER : LR016176
  • APEC : DSK2835
  • APEC : SDK6660
  • BLUE PRINT : ADJ134305
  • BORG & BECK : BBD5967S
  • BREMBO : 09.A773.11
  • BREMBO : 09.A773.1S
  • BREMBO : 09.A773.1X
  • DELPHI : BG9079C
  • Fahren : FBD6660
  • FEBI BILSTEIN : 108529
  • MEYLE : 53-15 521 0009/PD
  • MINTEX : MDC2334C
  • NAPA : NBD5638
  • National : NBD2004
  • SKF : VKBD 80369 V1
  • TEXTAR : 92235603
  • TEXTAR : 92235605
  • TRW : DF6508S
  • BOSCH : BD2019
