BOSCH

Bosch 0986479C22 Brake Disc

SKU: 0986479C22
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£51.75 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
6 Estate (GJ, GL)
Description Cylinder Capacity Horse Power Year
2.2 D (GJ2FW, GJ692) 2191 CCM 175 HP 08/2012 - 02/2018
2.0 (GJEFW) 1998 CCM 146 HP From 01/2013
2.0 (GJEFW) 1998 CCM 165 HP From 01/2013
2.2 D 2191 CCM 150 HP 10/2012 - 12/2020
2.5 2488 CCM 192 HP From 12/2012
2.2 D AWD 2191 CCM 175 HP From 02/2015
2.2 D AWD 2191 CCM 150 HP 12/2012 - 12/2020
2.5 2488 CCM 194 HP From 03/2018
2.2 D 2191 CCM 184 HP 03/2018 - 12/2020
2.2 D AWD 2191 CCM 184 HP 03/2018 - 12/2020
6 Saloon (GJ, GL)
Description Cylinder Capacity Horse Power Year
2.2 D (GJ2FP, GJ1021, GJ1022, GL1021) 2191 CCM 175 HP From 12/2012
2.0 (GJ2, GL2, GL6) 1998 CCM 146 HP From 01/2013
2.0 (GJEFP) 1998 CCM 165 HP From 01/2013
2.5 (GJ5FP, GL1032, GL1033) 2488 CCM 192 HP From 01/2013
2.2 D (GJ2FP) 2191 CCM 150 HP 12/2012 - 11/2020
2.0 1998 CCM 150 HP 12/2012 - 02/2018
2.5 2488 CCM 194 HP From 03/2018
2.2 D 2191 CCM 184 HP 03/2018 - 11/2020
2.5 (GJ5FP, GL1032, GL1033) 2488 CCM 231 HP From 03/2018
2.5 (GJ5FP, GL1032, GL1033) 2488 CCM 190 HP From 03/2018

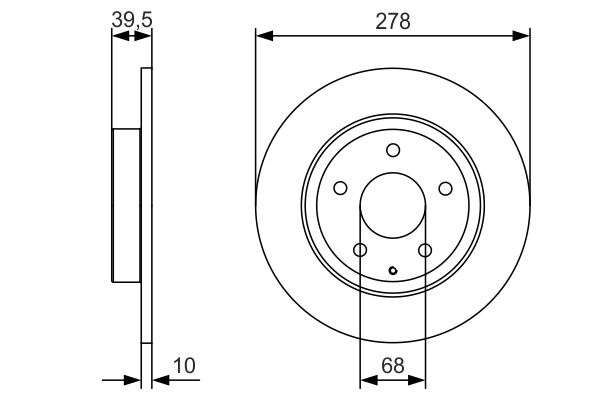

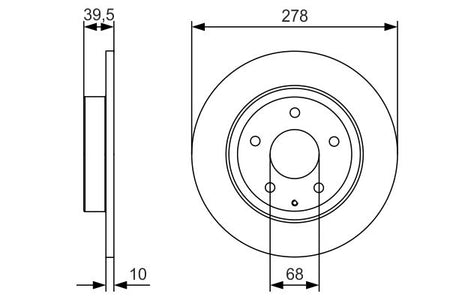

The Bosch 0986479C22 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 278 mm outer diameter, 10 mm brake disc thickness, 8 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 278
Brake Disc Thickness [mm] : 10
Minimum thickness [mm] : 8
Height [mm] : 39.5
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : solid
Centering Diameter [mm] : 68
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.3
  • Vendor BOSCH
  • SKU 0986479C22
  • Barcode 4047025471831
  • MAZDA : GHT2-26-251
  • APEC : DSK3020
  • APEC : SDK6761
  • BLUE PRINT : ADM543127
  • BORG & BECK : BBD5332
  • BREMBO : 08.C423.11
  • DELPHI : BG4534C
  • Fahren : FBD6761
  • FEBI BILSTEIN : 108480
  • FTE : 9072496
  • FTE : 9082235
  • HELLA : 8DD 355 119-391
  • MEYLE : 35-15 523 0018/PD
  • MINTEX : MDC2518
  • NAPA : NBD5651
  • National : NBD1904
  • SKF : VKBD 91062 S2
  • TEXTAR : 92254703
  • TRW : DF8115
  • VALEO : 673299
  • BOSCH : BD2161
