BOSCH

Bosch 0986479C23 Brake Disc

SKU: 0986479C23
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£45.78 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

PEUGEOT
308 II (LB_, LP_, LW_, LH_, L3_)
Description Cylinder Capacity Horse Power Year
1.6 THP 1598 CCM 156 HP 09/2013 - 06/2021
1.6 THP 125 1598 CCM 125 HP 09/2013 - 06/2021
1.2 VTi 72 1199 CCM 82 HP 09/2013 - 06/2021
1.6 HDi 1560 CCM 92 HP 09/2013 - 06/2021
1.6 HDi / BlueHDi 115 1560 CCM 115 HP 09/2013 - 06/2021
1.2 THP 110 1199 CCM 110 HP 11/2013 - 06/2021
1.2 THP 130 1199 CCM 131 HP 11/2013 - 06/2021
1.6 BlueHDi 120 1560 CCM 120 HP 11/2013 - 06/2021
2.0 BlueHDi 150 1997 CCM 150 HP 11/2013 - 06/2021
1.6 HDi 100 1560 CCM 99 HP 04/2014 - 06/2021
1.6 GT 205 1598 CCM 205 HP 06/2014 - 06/2021
2.0 GT BlueHDi 180 1997 CCM 181 HP 06/2014 - 06/2021
1.6 THP 150 1598 CCM 150 HP 03/2014 - 06/2021
1.6 THP 163 1598 CCM 163 HP 06/2014 - 06/2021
1.6 GTi (L35GNH) 1598 CCM 272 HP 06/2015 - 06/2021
308 SW II (LC_, LJ_, LR_, LX_, L4_)
Description Cylinder Capacity Horse Power Year
1.2 THP 130 1199 CCM 131 HP 03/2014 - 06/2021
1.6 THP 155 1598 CCM 156 HP 03/2014 - 06/2021
1.6 HDi 92 1560 CCM 92 HP 03/2014 - 06/2021
1.6 HDi / BlueHDi 115 (LCBHXM, LCBHXT) 1560 CCM 115 HP 03/2014 - 06/2021
2.0 BlueHDi 150 1997 CCM 150 HP 03/2014 - 06/2021
1.2 THP 110 1199 CCM 110 HP 03/2014 - 06/2021
1.6 BlueHDi 120 1560 CCM 120 HP 03/2014 - 06/2021
1.6 BlueHDi 100 1560 CCM 99 HP 04/2014 - 06/2021
1.6 GT 205 1598 CCM 205 HP 02/2015 - 06/2021
2.0 GT HDi 180 / BlueHDi 180 1997 CCM 181 HP 06/2014 - 06/2021
1.6 VTi (LWNFPA) 1587 CCM 115 HP 03/2014 - 06/2021
1.6 THP 125 1598 CCM 125 HP 03/2014 - 06/2021
1.6 THP 150 (L45GXA) 1598 CCM 150 HP 03/2014 - 06/2021
2.0 GT BlueHDi 180 1997 CCM 179 HP 06/2017 - 06/2021
2.0 GT BlueHDi 180 1997 CCM 177 HP 06/2017 - 06/2021

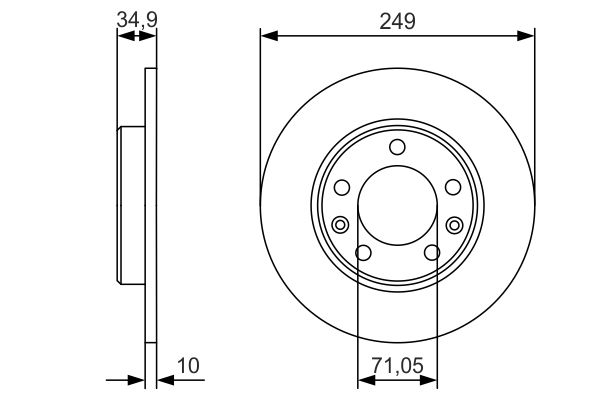

The Bosch 0986479C23 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 249 mm outer diameter, 10 mm brake disc thickness, 8 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 249
Brake Disc Thickness [mm] : 10
Minimum thickness [mm] : 8
Height [mm] : 34.9
Bolt Hole Circle Ø [mm] : 108
Brake Disc Type : solid
Centering Diameter [mm] : 71.05
Number of Holes : 5
Surface : Coated
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.3
  • Vendor BOSCH
  • SKU 0986479C23
  • Barcode 4047025471923
  • PEUGEOT : 16 107 619 80
  • APEC : DSK3259
  • APEC : SDK6856
  • BLUE PRINT : ADP154362
  • BORG & BECK : BBD5358
  • BREMBO : 08.C659.11
  • DELPHI : BG4670C
  • FEBI BILSTEIN : 107710
  • FTE : 9072137
  • FTE : 9082308
  • HELLA : 8DD 355 120-581
  • MEYLE : 11-15 523 0016
  • MEYLE : 11-15 523 0016/PD
  • MINTEX : MDC2617
  • NAPA : NBD5540
  • National : NBD1872
  • TEXTAR : 92269103
  • TRW : DF6910
  • VALEO : 673053
  • BOSCH : BD2162
