BOSCH

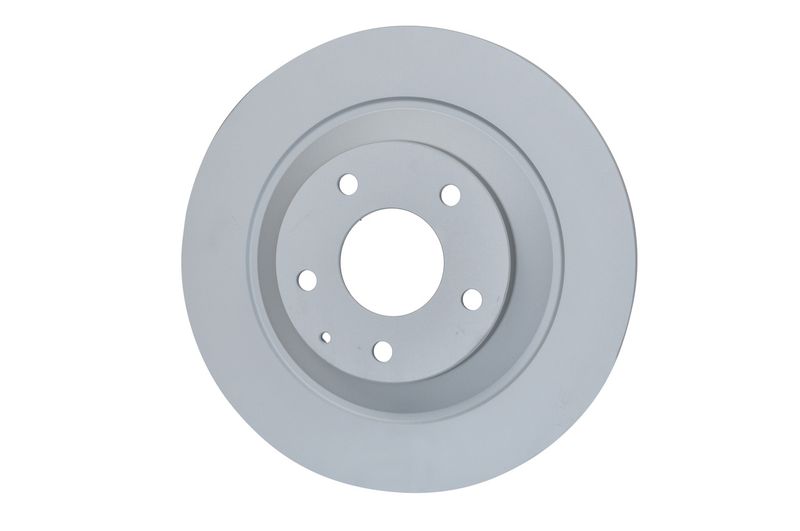

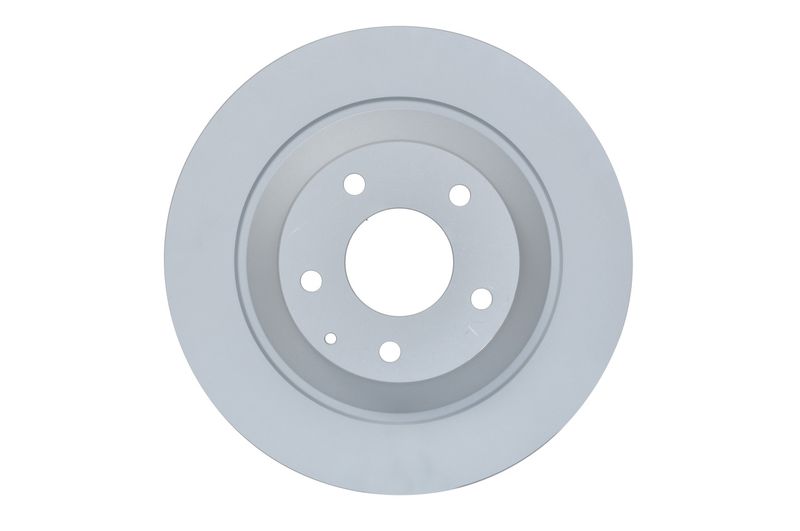

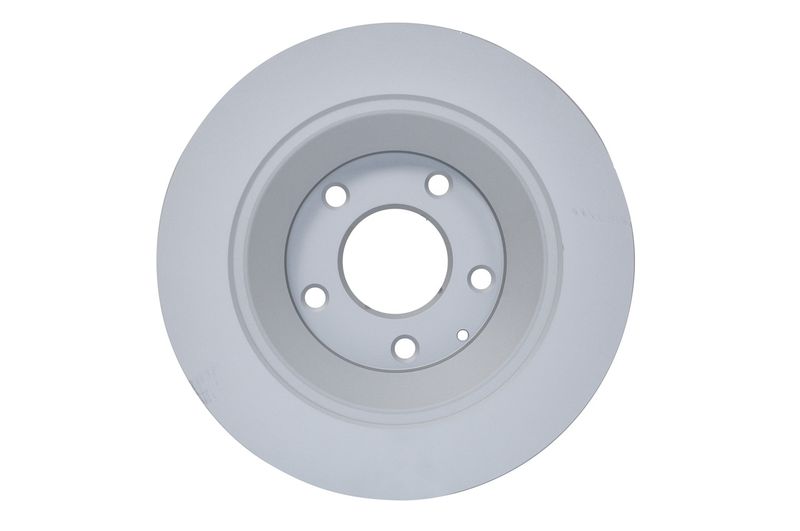

Bosch 0986479C28 Brake Disc

SKU: 0986479C28
Out of stock
Out of Stock
£53.69 inc. VAT
Pay in 3 interest-free payments with Klarna

Free UK delivery

Free shipping available on all orders across the UK.

  • Royal Mail Tracked 48 = Free
  • Royal Mail Tracked 24 = £2.99
  • FedEx Next Day = £4.99
MAZDA
CX-5 (KE, GH)
Description Cylinder Capacity Horse Power Year
2.0 (KEEFW) 1998 CCM 165 HP 11/2011 - 02/2017
2.0 AWD (KEEAW) 1998 CCM 160 HP 11/2011 - 02/2017
2.2 D (KE2FW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE2AW) 2191 CCM 150 HP 04/2012 - 02/2017
2.2 D AWD (KE102) 2191 CCM 175 HP 04/2012 - 02/2017
2.5 AWD 2488 CCM 192 HP 02/2015 - 02/2017
CX-5 (KF)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 165 HP From 05/2017
2.0 AWD 1998 CCM 160 HP From 05/2017
2.5 AWD 2488 CCM 194 HP From 05/2017
2.2 D (KF6W) 2191 CCM 150 HP 05/2017 - 12/2024
2.2 D AWD (KFGW) 2191 CCM 150 HP 05/2017 - 12/2024
2.2 D AWD (KF4W2) 2191 CCM 175 HP 05/2017 - 02/2018
2.2 D AWD 2191 CCM 188 HP From 03/2018
2.2 D AWD 2191 CCM 184 HP From 06/2018
2.0 AWD 1998 CCM 165 HP From 06/2018
2.0 1998 CCM 150 HP From 03/2018
2.0 AWD 1998 CCM 150 HP From 03/2018
2.5 2488 CCM 194 HP 03/2019 - 11/2022
2.0 SKYACTIV-G 1998 CCM 163 HP From 03/2018
2.0 SKYACTIV-G AWD 1998 CCM 163 HP From 03/2018
2.2 SKYACTIV-D 2191 CCM 184 HP From 02/2021
CX-30 (DM, DT, ED)
Description Cylinder Capacity Horse Power Year
SKYACTIV-G M Hybrid AWD 1998 CCM 122 HP From 07/2019
SKYACTIV-X M Hybrid AWD (DM4W7, DMFP) 1998 CCM 179 HP From 07/2019
1.8 SKYACTIV-D AWD 1759 CCM 116 HP From 07/2019
SKYACTIV-G M Hybrid AWD (DMEW, DMFW) 1998 CCM 150 HP From 01/2020
e-SKYACTIV-X M Hybrid AWD 1998 CCM 186 HP From 06/2021
MX-30 (DR)
Description Cylinder Capacity Horse Power Year
e-SKYACTIV (DR1W) 145 HP From 05/2020
e-SKYACTIV 143 HP From 05/2020
e-SKYACTIV R-EV 830 CCM 170 HP From 02/2023

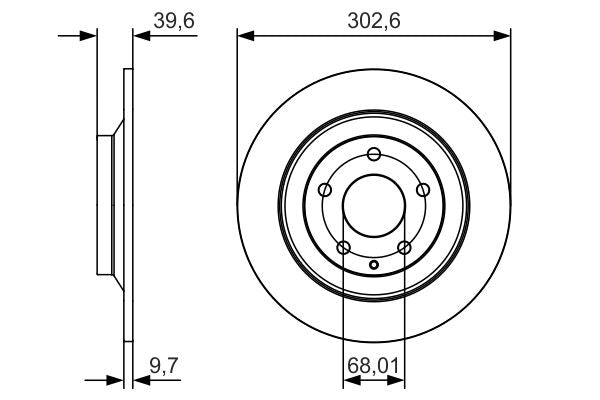

Function : Brake Disc
Outer Diameter [mm] : 303
Brake Disc Thickness [mm] : 10
Minimum thickness [mm] : 8
Height [mm] : 39.5
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : solid
Centering Diameter [mm] : 68
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.1
  • Vendor BOSCH
  • SKU 0986479C28
  • Barcode 4047025472036
  • MAZDA : K011-26-251B K011-26-251C
  • APEC : DSK3010
  • APEC : SDK6755
  • BLUE PRINT : ADM543124
  • BORG & BECK : BBD5303
  • BREMBO : 08.C425.11
  • BREMBO : 08.C425.1X
  • BREMBO : 08.C425.75
  • DELPHI : BG4567C
  • Fahren : FBD6755
  • FEBI BILSTEIN : 108430
  • FTE : 9072327
  • HELLA : 8DD 355 118-541
  • MEYLE : 35-15 523 0017/PD
  • MINTEX : MDC2388
  • NAPA : NBD5177
  • SKF : VKBD 91061 S2
  • TEXTAR : 92242703
  • TRW : DF8053
  • VALEO : 673089
  • BOSCH : BD2167
  • BOSCH : E1 90R-02C0341/0215
