Bosch 0986479C30 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986479C30

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£105.35 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MAZDA

CX-7 (ER)

Description	Cylinder Capacity	Horse Power	Year
2.2 MZR-CD AWD (ER10A)	2184 CCM	163 HP	01/2012 - 03/2013
2.2 MZR-CD AWD (ER10A)	2184 CCM	173 HP	07/2009 - 03/2013

CX-9 (TB)

Description	Cylinder Capacity	Horse Power	Year
3.7 AWD (TB10A)	3726 CCM	277 HP	From 01/2007

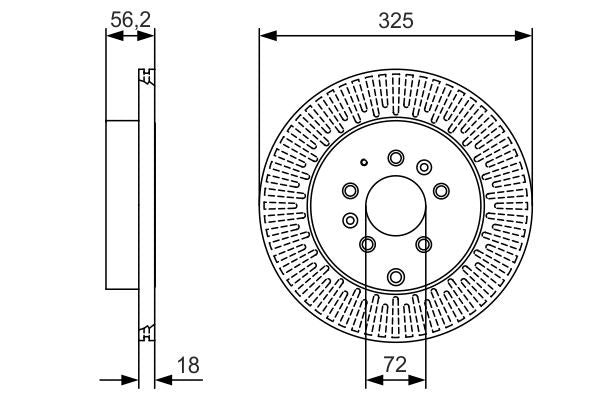

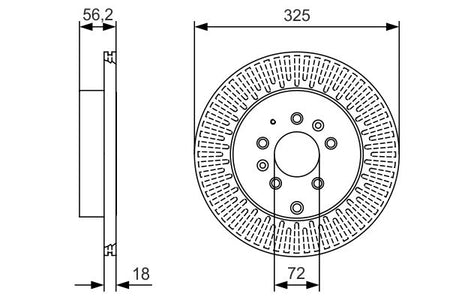

The Bosch 0986479C30 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 325 mm outer diameter, 18 mm brake disc thickness, 16 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 325

Brake Disc Thickness [mm] : 18

Minimum thickness [mm] : 16

Height [mm] : 56.9

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : Vented

Centering Diameter [mm] : 72

Number of Holes : 5

Surface : Oiled

Supplementary Article/Supplementary Info 2 : with bolts/screws

fulfils ECE standard : ECE-R90
