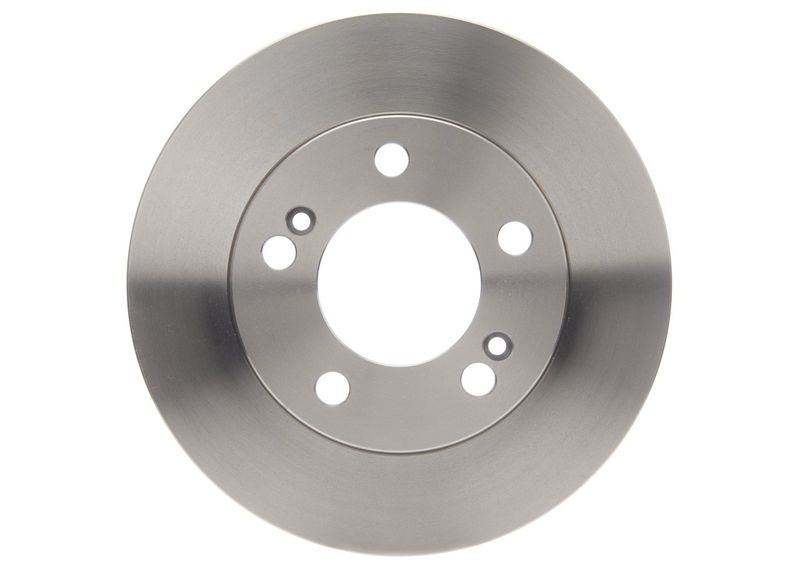

Bosch 0986479C31 Brake Disc - 1

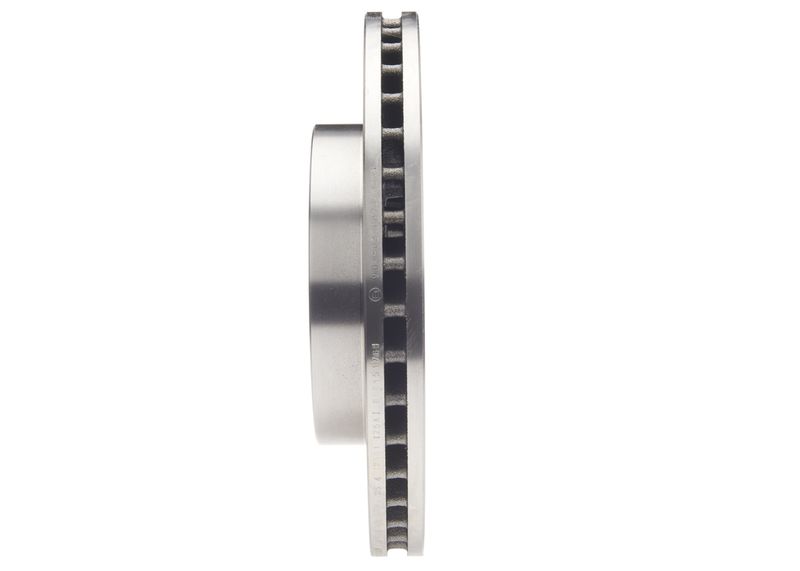

Bosch 0986479C31 Brake Disc - 2

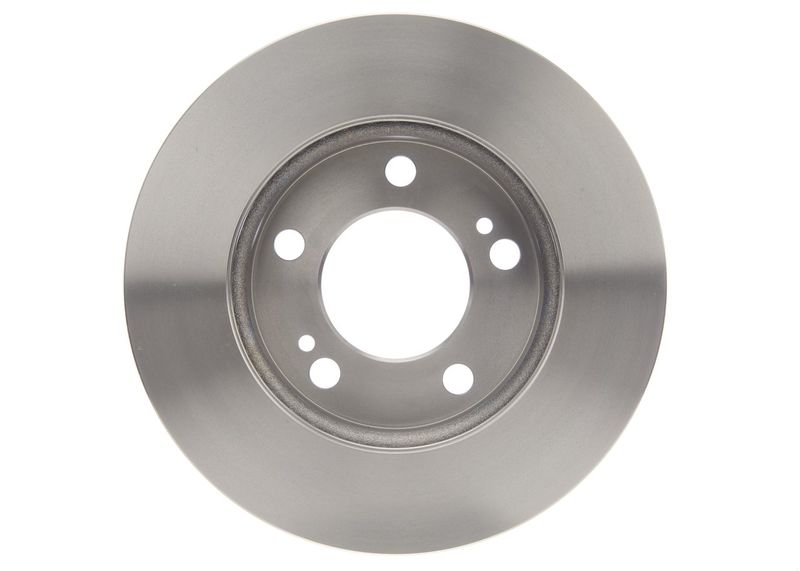

Bosch 0986479C31 Brake Disc - 3
Bosch 0986479C31 Brake Disc - 4
Bosch 0986479C31 Brake Disc - 5

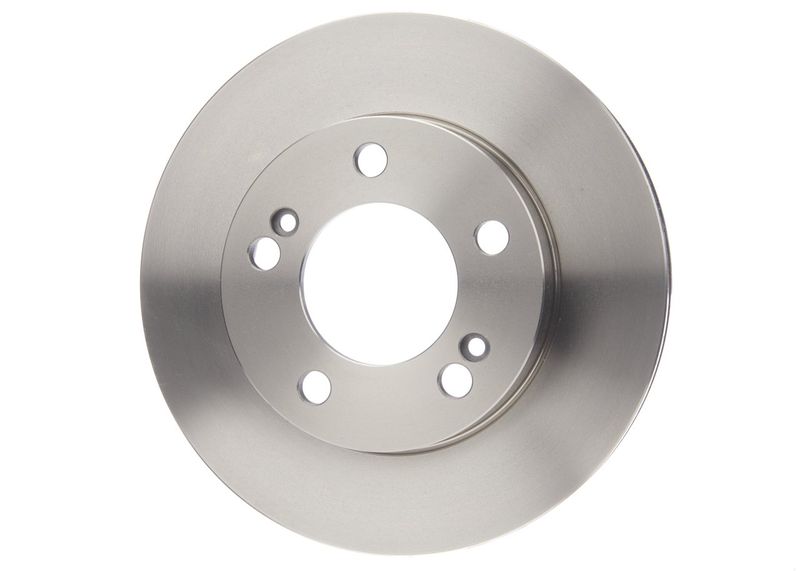

Bosch 0986479C31 Brake Disc - 6
Bosch 0986479C31 Brake Disc - 1
Bosch 0986479C31 Brake Disc - 2
Bosch 0986479C31 Brake Disc - 3
Bosch 0986479C31 Brake Disc - 4
Bosch 0986479C31 Brake Disc - 5
Bosch 0986479C31 Brake Disc - 6
BOSCH

Bosch 0986479C31 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479C31

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£94.12 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

SSANGYONG
ACTYON I
Description Cylinder Capacity Horse Power Year
2.0 Xdi 1998 CCM 136 HP 07/2007 - 06/2013
200 Xdi 4WD 1998 CCM 136 HP 07/2007 - 06/2013
200 Xdi 4WD 1998 CCM 141 HP From 10/2006
2.3 4x4 2295 CCM 150 HP From 11/2006
2.0 Xdi 1998 CCM 141 HP From 11/2005
ACTYON SPORTS I (QJ)
Description Cylinder Capacity Horse Power Year
2.0 Xdi 4WD 1998 CCM 155 HP From 09/2011
2.0 Xdi 4WD 1998 CCM 141 HP From 04/2007
2.0 Xdi 1998 CCM 155 HP From 09/2011
2.0 Xdi 1998 CCM 141 HP From 04/2007
ACTYON II
Description Cylinder Capacity Horse Power Year
2.0 XDi 1998 CCM 150 HP From 08/2012
2.0 XDi 4x4 1998 CCM 150 HP From 08/2012
KYRON
Description Cylinder Capacity Horse Power Year
2.7 Xdi 4x4 2696 CCM 163 HP 03/2006 - 12/2014
2.3 2295 CCM 150 HP 01/2010 - 12/2014
2.0 Xdi 1998 CCM 136 HP 01/2010 - 12/2014
2.0 Xdi 4x4 1998 CCM 136 HP 01/2010 - 12/2014
2.0 Xdi 4x4 1998 CCM 141 HP 05/2005 - 12/2014
2.0 Xdi 1998 CCM 141 HP 05/2005 - 12/2014
2.7 Xdi 4x4 2696 CCM 165 HP 05/2005 - 12/2014
2.0 Xdi 4x4 1998 CCM 138 HP 05/2005 - 12/2014
2.0 Xdi 1998 CCM 137 HP 05/2005 - 12/2014
MUSSO II
Description Cylinder Capacity Horse Power Year
2.0 Xdi 1998 CCM 155 HP From 01/2012
2.0 Xdi 4WD 1998 CCM 155 HP From 01/2012
REXTON / REXTON II (GAB_)
Description Cylinder Capacity Horse Power Year
2.9 TD 2874 CCM 120 HP 04/2002 - 08/2006
3.2 RX320 4x4 3199 CCM 220 HP From 04/2002
2.7 Xdi 2696 CCM 163 HP From 08/2004
2.7 Xdi 4x4 2696 CCM 165 HP 05/2004 - 05/2012

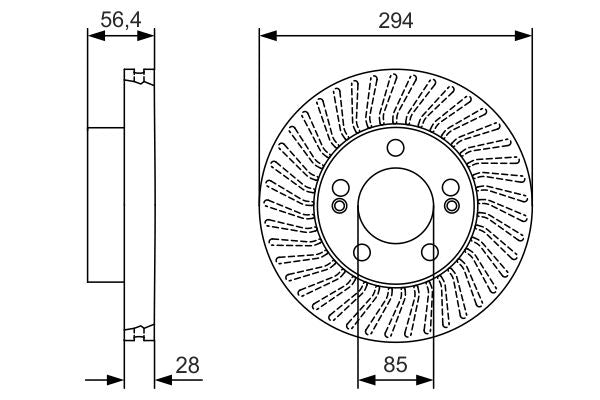

The Bosch 0986479C31 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 294 mm outer diameter, 28 mm brake disc thickness, 25.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 294
Brake Disc Thickness [mm] : 28
Minimum thickness [mm] : 25.4
Height [mm] : 56.4
Bolt Hole Circle Ø [mm] : 130
Brake Disc Type : Vented
Centering Diameter [mm] : 85
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 17.3
  • Vendor BOSCH
  • SKU 0986479C31
  • Barcode 4047025471862
  • SSANGYONG : 414 410 90 00 414 410 91 00 414 410 91 10
  • APEC : DSK2711
  • BLUE PRINT : ADG043113
  • BLUE PRINT : ADG043116
  • BORG & BECK : BBD4681
  • BREMBO : 09.B974.10
  • BREMBO : 09.B974.11
  • DELPHI : BG4206
  • FEBI BILSTEIN : 170607
  • FTE : 9071248
  • FTE : 9081205
  • HELLA : 8DD 355 116-471
  • MINTEX : MDC2211
  • NAPA : NBD5797
  • TEXTAR : 92203203
  • TRW : DF6205
  • BOSCH : BD2170
