BOSCH

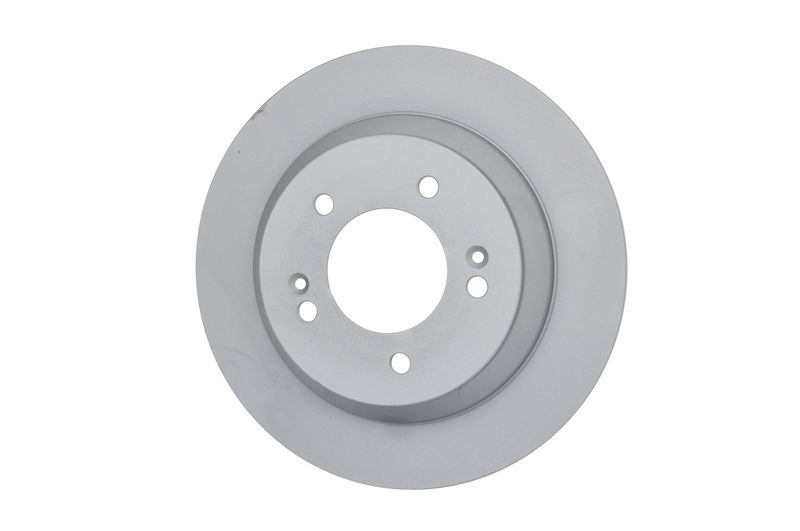

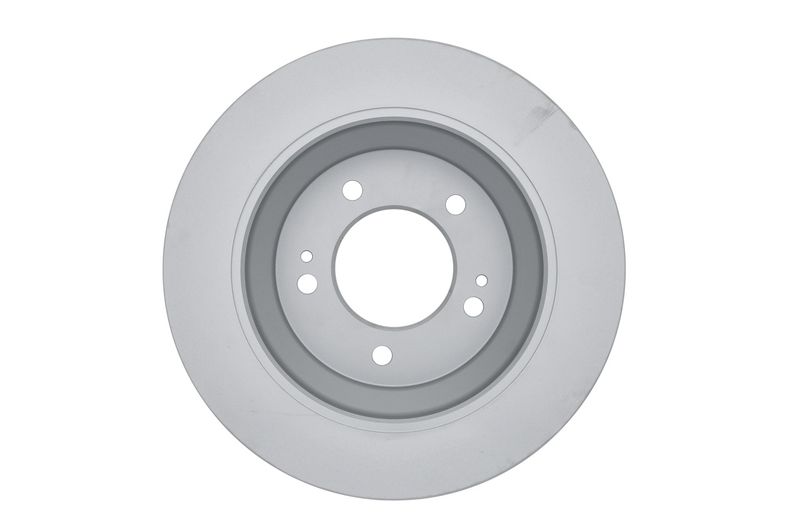

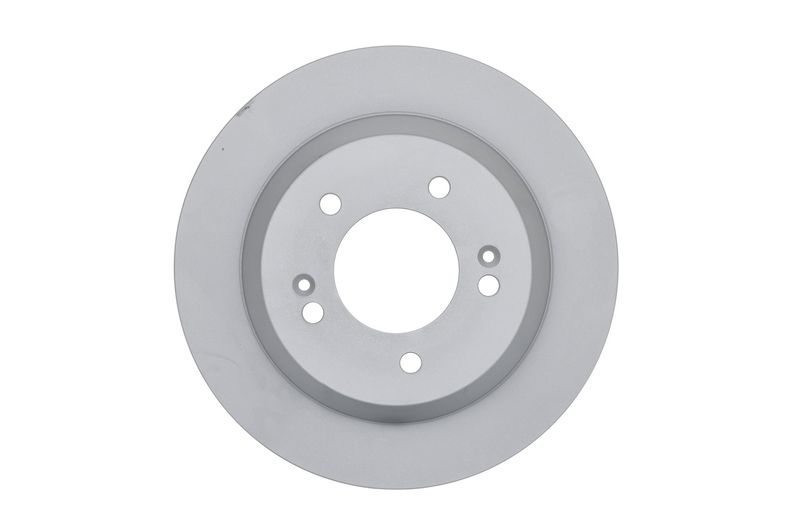

Bosch 0986479C39 Brake Disc

SKU: 0986479C39

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£69.08 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

KIA

CARENS IV

Description	Cylinder Capacity	Horse Power	Year
1.6 GDi	1591 CCM	135 HP	03/2013 - 08/2016
2.0 GDi	1999 CCM	177 HP	From 03/2013
1.7 CRDi	1685 CCM	116 HP	03/2013 - 08/2016
1.7 CRDi	1685 CCM	136 HP	03/2013 - 08/2016
2.0 GDi	1999 CCM	166 HP	03/2013 - 08/2016
1.7 CRDi	1685 CCM	141 HP	07/2015 - 08/2016
2.0 MPI	1999 CCM	150 HP	03/2013 - 08/2016
2.0 GDi	1999 CCM	165 HP	06/2016 - 08/2016

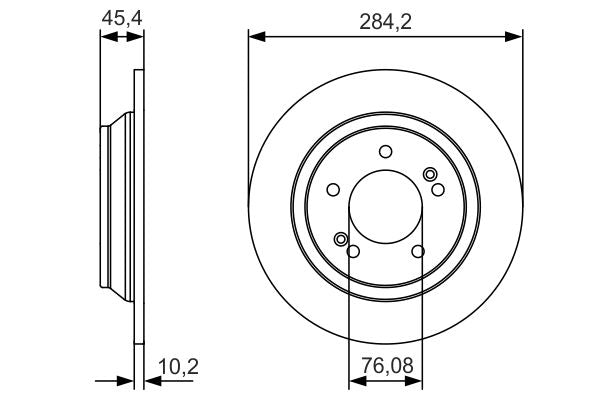

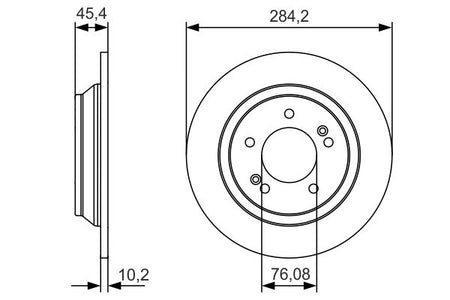

The Bosch 0986479C39 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 284 mm outer diameter, 10 mm brake disc thickness, 8.4 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 284

Brake Disc Thickness [mm] : 10

Minimum thickness [mm] : 8.4

Height [mm] : 45

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : solid

Centering Diameter [mm] : 76

Number of Holes : 5

Surface : Coated

Machining : High-carbon

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.5

APEC : DSK3074
APEC : SDK6787
BLUE PRINT : ADG043210
BORG & BECK : BBD5398
BREMBO : 08.C823.11
DELPHI : BG4708C
Fahren : FBD6787
FEBI BILSTEIN : 108550
FTE : 9072416
FTE : 9082275
HELLA : 8DD 355 120-471
MEYLE : 28-15 523 0026/PD
MINTEX : MDC2606
NAPA : NBD5659
National : NBD1911
TEXTAR : 92267803
TRW : DF3945
VALEO : 672847
VALEO : 673001

Bosch 0986479C39 Brake Disc
