BOSCH

Bosch 0986479C40 Brake Disc

SKU: 0986479C40

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£78.49 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SUZUKI

S-CROSS

Description	Cylinder Capacity	Horse Power	Year
1.4 Smart Hybrid AllGrip (AKP414, AKK414)	1373 CCM	129 HP	From 01/2022
1.4 Smart Hybrid (AKP414, AKK414)	1373 CCM	129 HP	From 01/2022
1.5 Hybrid (AKK415)	1462 CCM	116 HP	From 01/2022
1.5 Hybrid AllGrip (AKK415)	1462 CCM	116 HP	From 01/2022
1.4 Smart Hybrid (AKP414)	1373 CCM	110 HP	From 07/2025
1.4 Smart Hybrid AllGrip (AKP414)	1373 CCM	110 HP	From 07/2025

SX4 S-CROSS (JY)

Description	Cylinder Capacity	Horse Power	Year
1.6 AllGrip (AKK 416)	1586 CCM	120 HP	08/2013 - 06/2022
1.6 DDiS (AKK 416D)	1598 CCM	120 HP	08/2013 - 06/2022
1.6 DDiS AllGrip (AKK 416D)	1598 CCM	120 HP	08/2013 - 06/2022
1.6 (AKK 416)	1586 CCM	120 HP	08/2013 - 06/2022
1.6 (AKK416, YA22S)	1586 CCM	117 HP	12/2013 - 06/2022
1.6 AllGrip (AKK416, YB22S)	1586 CCM	117 HP	12/2013 - 06/2022
1.4 T (AKK414)	1373 CCM	140 HP	08/2016 - 06/2022
1.4 T AllGrip (AKK414)	1373 CCM	140 HP	08/2016 - 06/2022
1.0 (AKK 310)	998 CCM	111 HP	08/2016 - 06/2022
1.0 AllGrip (AKK 310)	998 CCM	111 HP	08/2016 - 06/2022
1.4 Hybrid (Mild Hybrid) AllGrip (AKK 414)	1373 CCM	129 HP	08/2019 - 06/2022
1.4 Hybrid (Mild Hybrid) (AKK 414)	1373 CCM	129 HP	08/2019 - 06/2022

VITARA (LY)

Description	Cylinder Capacity	Horse Power	Year
1.6 (APK 416)	1586 CCM	120 HP	From 02/2015
1.6 AllGrip (APK 416)	1586 CCM	120 HP	From 02/2015
1.6 DDiS (APK 416D)	1598 CCM	120 HP	From 02/2015
1.6 DDiS AllGrip (APK416D)	1598 CCM	120 HP	From 02/2015
1.4 T (APK414)	1373 CCM	140 HP	From 09/2015
1.4 T AllGrip (APK414)	1373 CCM	140 HP	From 09/2015
1.6 (APK416, YD21S)	1586 CCM	117 HP	From 05/2015
1.6 AllGrip (APK416, YE21S)	1586 CCM	117 HP	From 05/2015
1.6 AllGrip	1586 CCM	118 HP	From 02/2015
1.6	1586 CCM	118 HP	From 02/2015
1.0 (APK 310)	998 CCM	111 HP	From 10/2018
1.0 AllGrip (APK 310)	998 CCM	111 HP	From 10/2018
1.4 Hybrid (Mild Hybrid) AllGrip (APK414)	1373 CCM	129 HP	From 07/2019
1.4 Hybrid (Mild Hybrid) (APK414)	1373 CCM	129 HP	From 07/2019
1.5 Hybrid AllGrip	1462 CCM	116 HP	From 01/2022

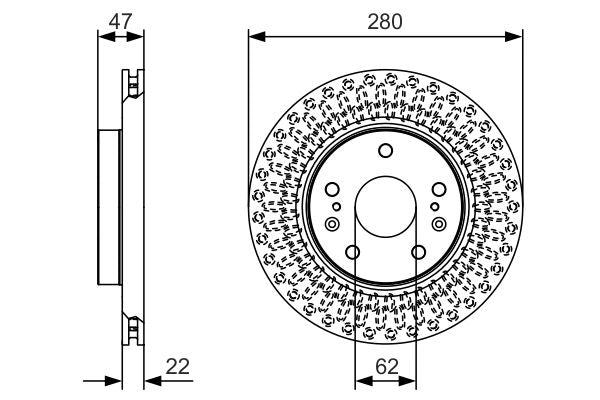

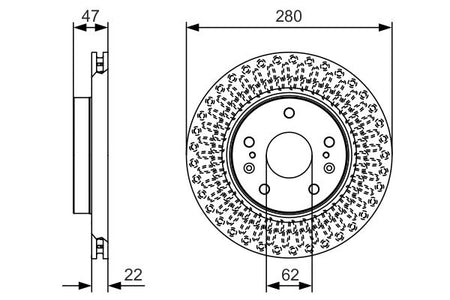

The Bosch 0986479C40 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 280 mm outer diameter, 22 mm brake disc thickness, 20 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 280

Brake Disc Thickness [mm] : 22

Minimum thickness [mm] : 20

Height [mm] : 47

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : Vented

Centering Diameter [mm] : 62

Number of Holes : 5

Surface : Coated

Machining : High-carbon

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.7

APEC : DSK3080
APEC : SDK6792
BLUE PRINT : ADK84346
BORG & BECK : BBD5400
BREMBO : 09.C047.11
DELPHI : BG4093
DELPHI : BG4093C
DELPHI : BG5283C
Fahren : FBD6792
FEBI BILSTEIN : 108472
FTE : 9072835
FTE : 9082299
FTE : 9082802
HELLA : 8DD 355 120-521
MEYLE : 33-15 521 0019/PD
MINTEX : MDC2611
NAPA : NBD5001
SKF : VKBD 81141 V2
TEXTAR : 92268303
TRW : DF6703
VALEO : 672997
