BOSCH

Bosch 0986479C89 Brake Disc

SKU: 0986479C89

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£85.14 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI

A8 D3 (4E2, 4E8)

Description	Cylinder Capacity	Horse Power	Year
4.2 quattro	4172 CCM	335 HP	10/2002 - 07/2010
3.7 quattro	3697 CCM	280 HP	10/2002 - 05/2006
4.0 TDI quattro	3936 CCM	275 HP	05/2003 - 07/2005
3.0	2976 CCM	220 HP	07/2003 - 05/2005
3.0 TDI quattro	2967 CCM	233 HP	08/2003 - 07/2010
3.2 FSI	3123 CCM	260 HP	06/2005 - 07/2010
3.2 FSI quattro	3123 CCM	260 HP	06/2005 - 07/2010
3.0	2976 CCM	218 HP	07/2003 - 05/2006
3.0 TDI quattro	2967 CCM	211 HP	11/2003 - 07/2010
2.8 FSI	2773 CCM	210 HP	08/2007 - 07/2010

PHAETON (3D1, 3D2, 3D3, 3D4, 3D6, 3D7, 3D8, 3D9)

Description	Cylinder Capacity	Horse Power	Year
6.0 W12 4motion	5998 CCM	420 HP	04/2002 - 12/2005
3.2 V6	3189 CCM	241 HP	04/2002 - 05/2005
5.0 V10 TDI 4motion	4921 CCM	313 HP	11/2002 - 10/2006
4.2 V8 4motion	4172 CCM	335 HP	05/2003 - 03/2016
3.2 V6 4motion	3189 CCM	241 HP	02/2004 - 11/2008
3.0 V6 TDI 4motion	2967 CCM	224 HP	09/2004 - 05/2007
6.0 W12 4motion	5998 CCM	450 HP	05/2005 - 03/2016
3.6 V6 4motion	3597 CCM	280 HP	11/2008 - 03/2016
3.0 V6 TDI 4motion	2967 CCM	240 HP	11/2008 - 03/2016
3.0 V6 TDI 4motion	2967 CCM	233 HP	06/2007 - 11/2008
3.0 V6 TDI 4motion	2967 CCM	245 HP	11/2013 - 03/2016

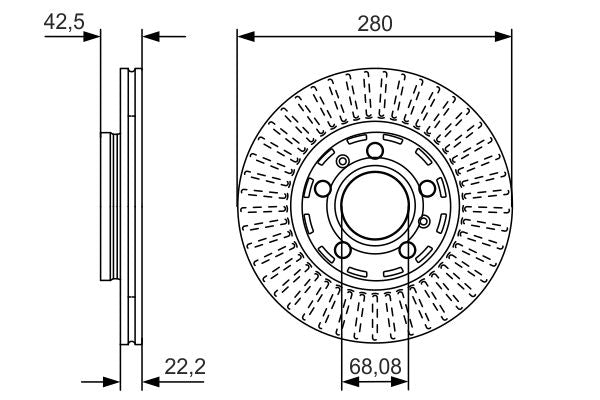

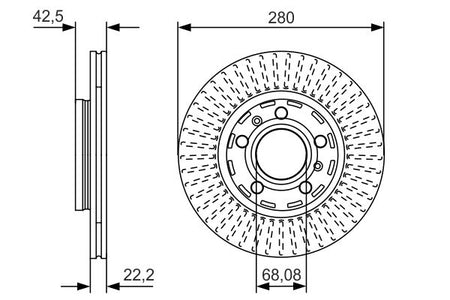

The Bosch 0986479C89 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 280 mm outer diameter, 22 mm brake disc thickness, 20 mm minimum thickness, and vented and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 280

Brake Disc Thickness [mm] : 22

Minimum thickness [mm] : 20

Height [mm] : 42.4

Bolt Hole Circle Ø [mm] : 112

Brake Disc Type : Vented

Centering Diameter [mm] : 68

Number of Holes : 5

Surface : Coated

Machining : High-carbon

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 15.3

Brake Disc Type : internally vented

APEC : DSK2519
BLUE PRINT : ADV1843105
BORG & BECK : BBD4615
BREMBO : 09.9908.21
FEBI BILSTEIN : 22878
FEBI BILSTEIN : 43921
HELLA : 8DD 355 113-321
MINTEX : MDC1758
TEXTAR : 92152203
TRW : DF6670
VALEO : 673708
