BOSCH

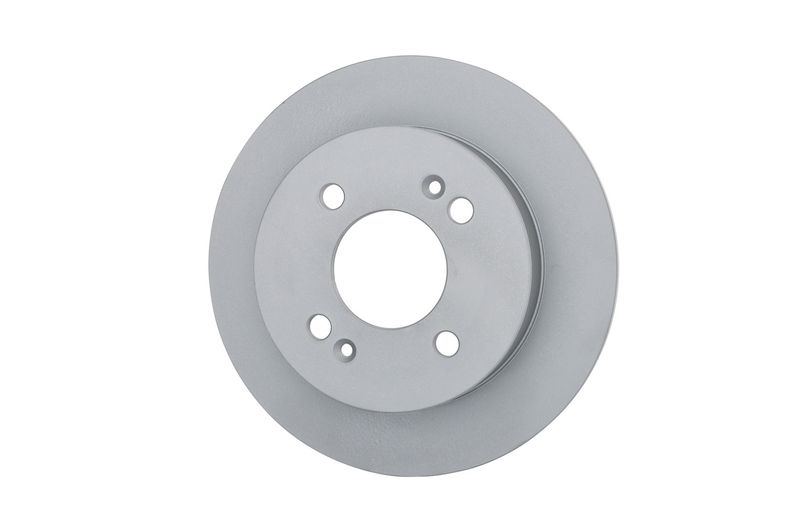

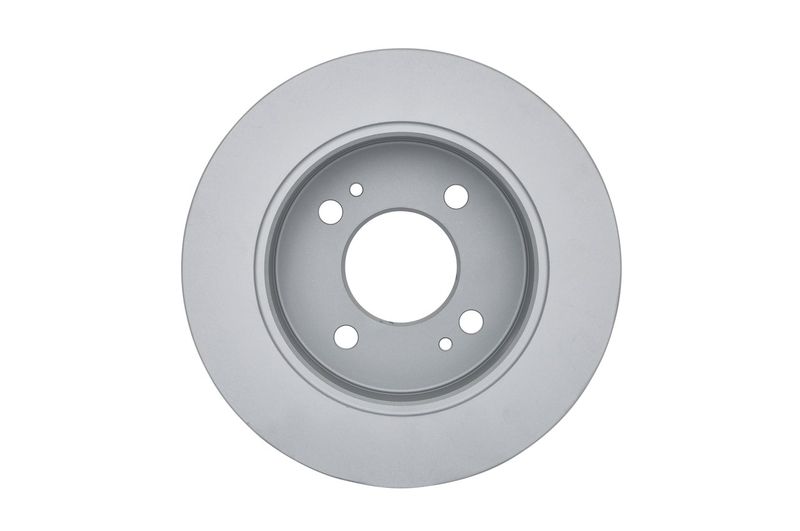

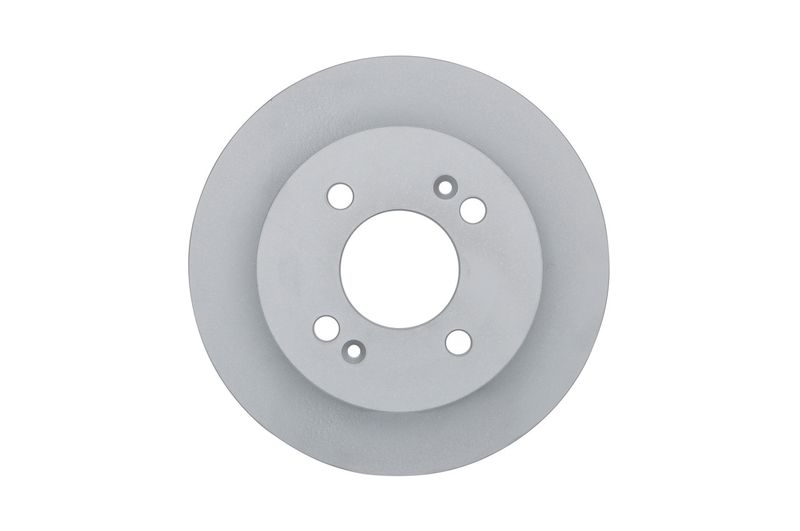

Bosch 0986479D02 Brake Disc

SKU: 0986479D02

Your selected vehicle

Only 3 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£41.78 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI

i10 II (BA, IA)

Description	Cylinder Capacity	Horse Power	Year
1.0	998 CCM	67 HP	08/2013 - 12/2019
1.2	1248 CCM	87 HP	12/2013 - 12/2019

i10 III (AC3, AI3)

Description	Cylinder Capacity	Horse Power	Year
1.2 MPi	1197 CCM	84 HP	From 09/2019
1.0 MPi	998 CCM	67 HP	From 09/2019
1.0 T-GDi	998 CCM	100 HP	From 02/2020
1.0 MPi	998 CCM	63 HP	From 03/2024
1.2 MPi	1197 CCM	79 HP	From 03/2024
1.0 T-GDi	998 CCM	90 HP	From 03/2024

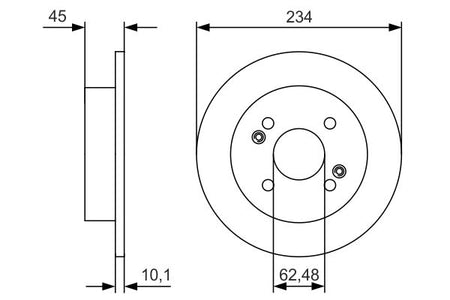

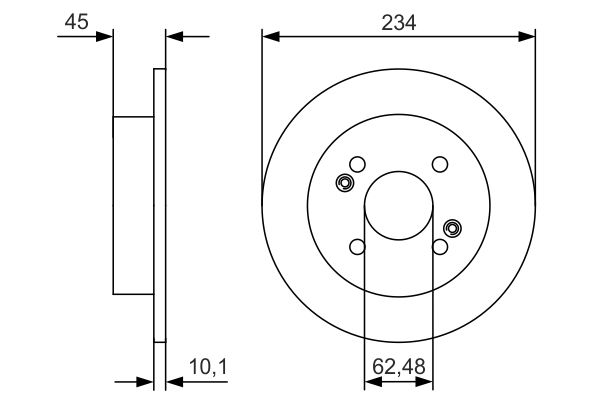

The Bosch 0986479D02 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 234 mm outer diameter, 10 mm brake disc thickness, 8.4 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 234

Brake Disc Thickness [mm] : 10

Minimum thickness [mm] : 8.4

Height [mm] : 44.7

Bolt Hole Circle Ø [mm] : 100

Brake Disc Type : solid

Centering Diameter [mm] : 62.5

Number of Holes : 4

Surface : Coated

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.5

APEC : DSK3216
APEC : SDK6842
BLUE PRINT : ADG043211
BORG & BECK : BBD5443
BREMBO : 08.C650.11
DELPHI : BG4917C
Fahren : FBD6842
FEBI BILSTEIN : 108439
FTE : 9082268
HELLA : 8DD 355 112-801
MEYLE : 37-15 523 0046
MINTEX : MDC1726
NAPA : NBD5187
National : NBD1973
SKF : VKBD 91088 S2
TEXTAR : 92147200
TEXTAR : 92147203
TRW : DF6949
VALEO : 673144

Bosch 0986479D02 Brake Disc
