BOSCH

Bosch 0986479D16 Brake Disc

SKU: 0986479D16

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£49.54 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN

LEAF (ZE0)

Description	Cylinder Capacity	Horse Power	Year
Electric		109 HP	11/2010 - 12/2017

QASHQAI II (J11, J11_)

Description	Cylinder Capacity	Horse Power	Year
1.2 DIG-T	1197 CCM	116 HP	From 11/2013
1.5 dCi	1461 CCM	110 HP	From 11/2013
1.6 dCi	1598 CCM	130 HP	From 11/2013
1.6 dCi ALL MODE 4x4-i	1598 CCM	130 HP	From 11/2013
2.0 (J11E)	1997 CCM	144 HP	From 06/2014
1.6 DIG-T	1618 CCM	163 HP	From 02/2014
2.0 ALL MODE 4x4-i (J11R)	1997 CCM	144 HP	From 12/2013
1.3 DIG-T	1332 CCM	140 HP	From 08/2018
1.3 DIG-T	1332 CCM	160 HP	From 08/2018
1.5 dCi	1461 CCM	116 HP	From 06/2018
1.7 dCi	1749 CCM	150 HP	From 01/2019
1.7 dCi ALL MODE 4x4-i	1749 CCM	150 HP	From 01/2019
1.3 DIG-T	1332 CCM	158 HP	From 10/2020

QASHQAI II VAN (J11_)

Description	Cylinder Capacity	Horse Power	Year
1.5 dCi	1461 CCM	110 HP	From 05/2015
1.5 dCi	1461 CCM	116 HP	From 06/2018

X-TRAIL III (T32_, T32R, T32RR)

Description	Cylinder Capacity	Horse Power	Year
1.6 dCi (T32)	1598 CCM	130 HP	From 04/2014
1.6 dCi ALL MODE 4x4-i (NT32)	1598 CCM	130 HP	From 04/2014
2.5 ALL MODE 4x4-i (NT32)	2488 CCM	171 HP	From 12/2013
2.0 (T32)	1997 CCM	144 HP	From 02/2014
1.6 DIG-T (T32)	1618 CCM	163 HP	From 06/2015
2.0 ALL MODE 4x4-i (NT32)	1997 CCM	144 HP	From 09/2014
1.3 DIG-T	1332 CCM	160 HP	From 04/2019

X-TRAIL VAN (T32)

Description	Cylinder Capacity	Horse Power	Year
dCi	1598 CCM	131 HP	From 04/2014
dCi 4x4	1598 CCM	131 HP	From 04/2014

RENAULT

KADJAR (HA_, HL_)

Description	Cylinder Capacity	Horse Power	Year
1.5 dCi 110 (HLA3)	1461 CCM	110 HP	From 06/2015
1.6 dCi 130 (HLA4)	1598 CCM	130 HP	From 06/2015
1.6 dCi 130 4x4 (HLA4)	1598 CCM	130 HP	From 06/2015
1.2 TCe 130 (HLMR)	1197 CCM	130 HP	From 06/2015
1.6 TCe 165 (HLMH)	1618 CCM	163 HP	From 11/2016
1.3 TCe 140 (HLNB, HLN1)	1332 CCM	140 HP	From 08/2018
1.5 BLUE dCi 115 (HLA6)	1461 CCM	116 HP	From 08/2018
1.3 TCe 160 (HLNC)	1332 CCM	160 HP	From 08/2018
1.7 Blue dCi 150 4WD (HLA7)	1749 CCM	150 HP	From 08/2018
1.7 Blue dCi 150 (HLA7)	1749 CCM	150 HP	From 08/2018
1.3 TCe 160 (HLN2)	1332 CCM	158 HP	From 07/2021

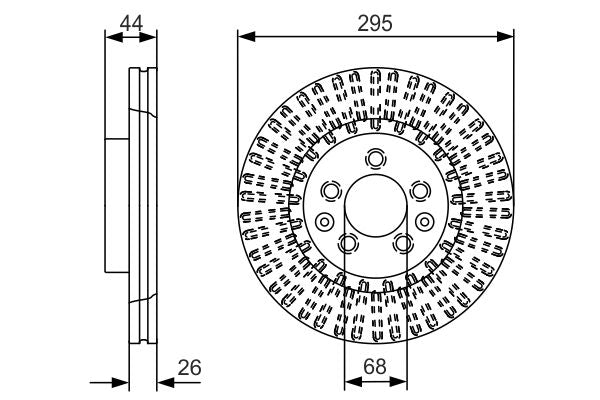

The Bosch 0986479D16 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 295 mm outer diameter, 26 mm brake disc thickness, 24 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 295

Brake Disc Thickness [mm] : 26

Minimum thickness [mm] : 24

Height [mm] : 44

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : Vented

Centering Diameter [mm] : 68

Number of Holes : 5

Surface : Coated

Machining : High-carbon

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.8

APEC : DSK3081
APEC : SDK6793
BLUE PRINT : ADN143176
BORG & BECK : BBD5363
BREMBO : 09.C545.11
DELPHI : BG4770C
Fahren : FBD6793
FEBI BILSTEIN : 108392
FEBI BILSTEIN : 108604
FTE : 9071054
FTE : 9081141
HELLA : 8DD 355 122-791
MEYLE : 36-15 521 0074/PD
MINTEX : MDC2695
NAPA : NBD5199
National : NBD1883
SKF : VKBD 80047 V2
TEXTAR : 92274203
TRW : DF6786
TRW : DF6787

Bosch 0986479D16 Brake Disc
