BOSCH

Bosch 0986479D19 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service

SKU: 0986479D19

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 1 left

Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day

£94.10 inc. VAT

Pay in 3 interest-free payments with Klarna

Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

NISSAN

X-TRAIL III (T32_, T32R, T32RR)

Description	Cylinder Capacity	Horse Power	Year
1.6 dCi (T32)	1598 CCM	130 HP	From 04/2014
1.6 dCi ALL MODE 4x4-i (NT32)	1598 CCM	130 HP	From 04/2014
1.6 DIG-T (T32)	1618 CCM	163 HP	From 06/2015
2.0 dCi (T32)	1995 CCM	177 HP	From 10/2016
2.0 dCi ALL MODE 4x4-i (NT32)	1995 CCM	177 HP	From 10/2016
1.7 dCi	1749 CCM	150 HP	From 04/2019
1.7 dCi ALL MODE 4x4-i	1749 CCM	150 HP	From 04/2019
1.3 DIG-T	1332 CCM	160 HP	From 04/2019
1.7 dCi	1749 CCM	131 HP	From 04/2019
1.7 dCi ALL MODE 4x4-i	1749 CCM	131 HP	From 04/2019
1.7 dCi	1749 CCM	163 HP	From 04/2019
1.7 dCi ALL MODE 4x4-i	1749 CCM	163 HP	From 04/2019

X-TRAIL VAN (T32)

Description	Cylinder Capacity	Horse Power	Year
dCi	1598 CCM	131 HP	From 04/2014
dCi 4x4	1598 CCM	131 HP	From 04/2014

RENAULT

KOLEOS II (HC_)

Description	Cylinder Capacity	Horse Power	Year
2.0 dCi 175 4WD	1995 CCM	177 HP	From 04/2016
2.0 dCi 175 (HCAK)	1995 CCM	177 HP	From 04/2016
1.7 BLUE dCi 150 (HCA7)	1749 CCM	150 HP	From 06/2019
2.0 BLUE dCi 190 4WD (HCAN)	1997 CCM	190 HP	From 06/2019
2.0 BLUE DCI 185 (HCAN)	1997 CCM	184 HP	From 01/2020
2.0 BLUE DCI 185 4WD (HCAN)	1997 CCM	184 HP	From 01/2020

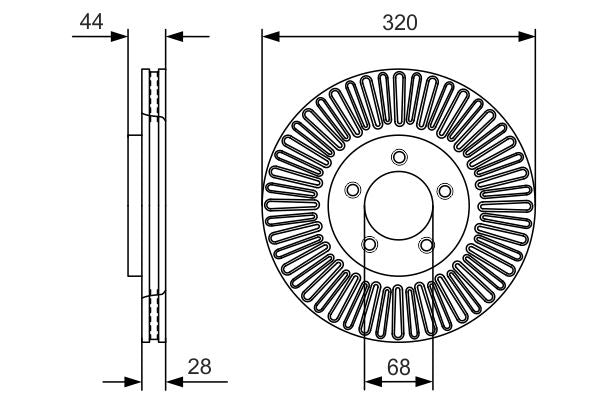

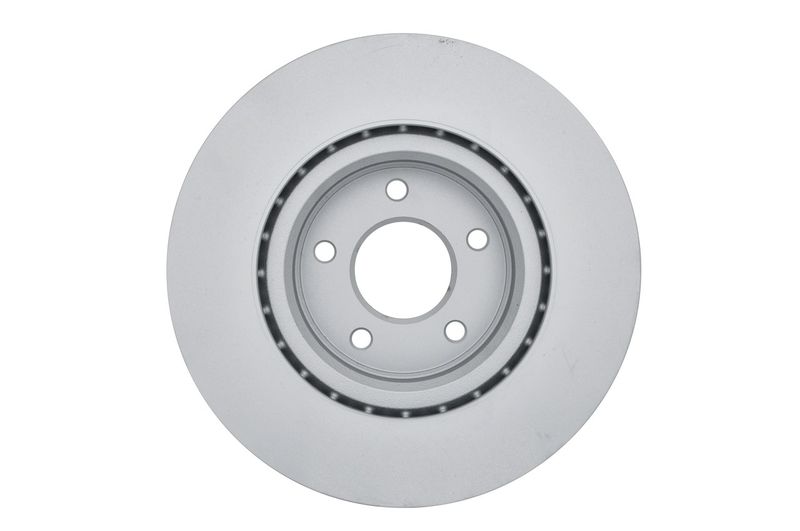

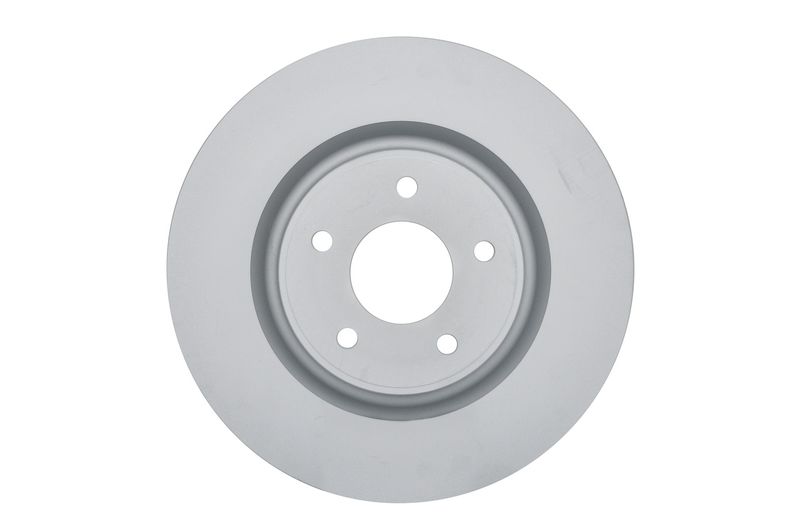

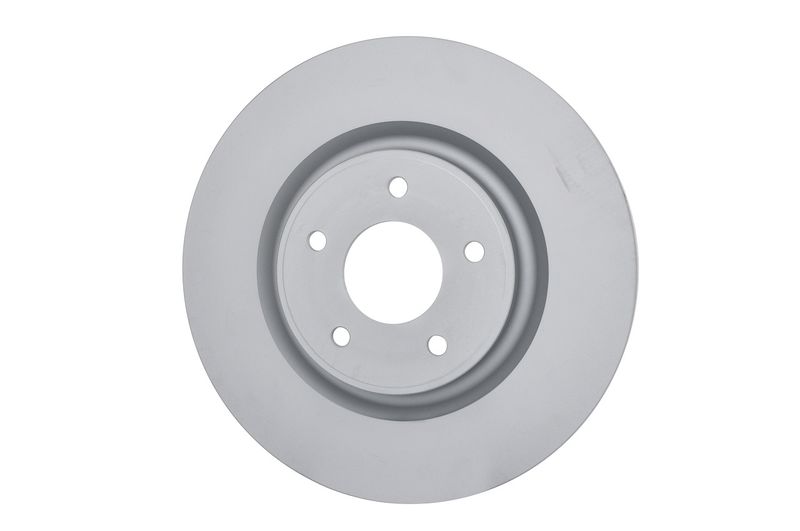

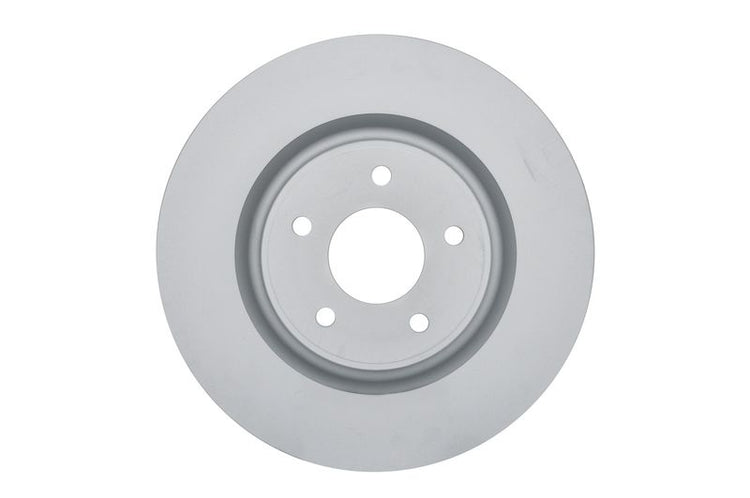

The Bosch 0986479D19 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 320 mm outer diameter, 28 mm brake disc thickness, 26 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 320

Brake Disc Thickness [mm] : 28

Minimum thickness [mm] : 26

Height [mm] : 44

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : Vented

Centering Diameter [mm] : 68

Number of Holes : 5

Surface : Coated

Machining : High-carbon

fulfils ECE standard : ECE-R90
