BOSCH

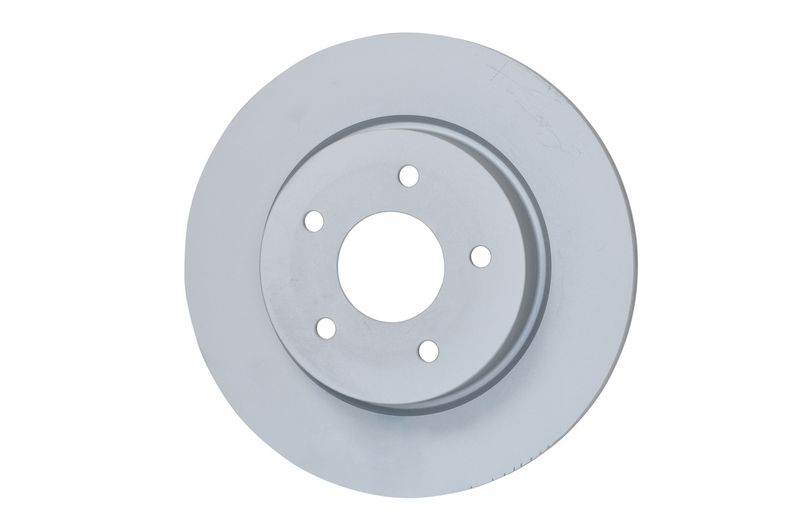

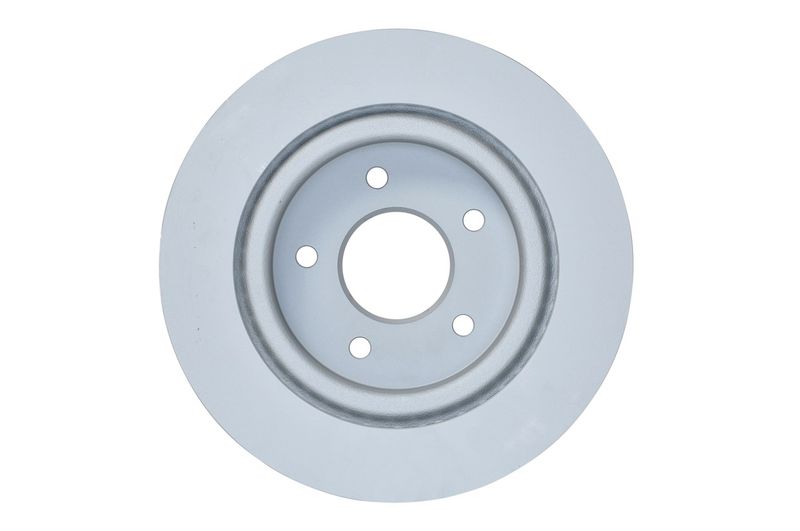

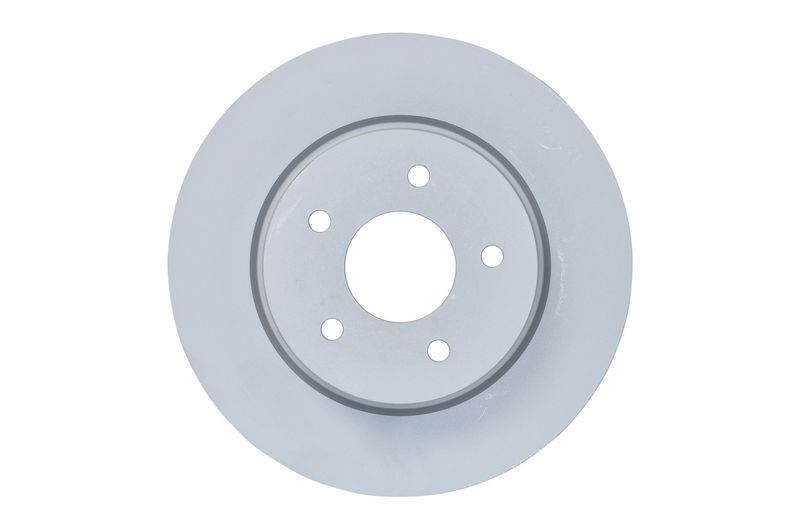

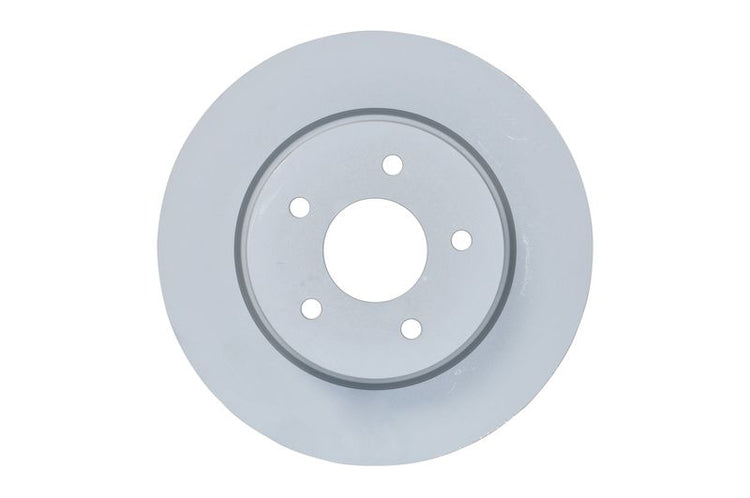

Bosch 0986479D20 Brake Disc

SKU: 0986479D20

Your selected vehicle

Out of stock

Out of Stock

£80.25 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

NISSAN

LEAF (ZE1)

Description	Cylinder Capacity	Horse Power	Year
Electric		150 HP	From 08/2017
Electric		218 HP	From 01/2019

LEAF

Description	Cylinder Capacity	Horse Power	Year
EV (ZE2)		177 HP	From 07/2025
EV (ZE2)		218 HP	From 07/2025

QASHQAI III (J12)

Description	Cylinder Capacity	Horse Power	Year
1.3 DIG-T	1332 CCM	140 HP	From 04/2021
1.3 DIG-T	1332 CCM	158 HP	From 04/2021
1.3 DIG-T All-wheel Drive	1332 CCM	158 HP	From 04/2021
1.5 VC-T e-Power	1498 CCM	190 HP	09/2022 - 07/2025
1.5 VC-T e-Power	1498 CCM	205 HP	From 07/2025

X-TRAIL III (T32_, T32R, T32RR)

Description	Cylinder Capacity	Horse Power	Year
1.6 dCi (T32)	1598 CCM	130 HP	From 04/2014
1.6 dCi ALL MODE 4x4-i (NT32)	1598 CCM	130 HP	From 04/2014
2.5 ALL MODE 4x4-i (NT32)	2488 CCM	171 HP	From 12/2013
2.0 (T32)	1997 CCM	144 HP	From 02/2014
1.6 DIG-T (T32)	1618 CCM	163 HP	From 06/2015
2.0 ALL MODE 4x4-i (NT32)	1997 CCM	144 HP	From 09/2014
2.0 dCi (T32)	1995 CCM	177 HP	From 10/2016
2.0 dCi ALL MODE 4x4-i (NT32)	1995 CCM	177 HP	From 10/2016
1.7 dCi	1749 CCM	150 HP	From 04/2019
1.7 dCi ALL MODE 4x4-i	1749 CCM	150 HP	From 04/2019
1.3 DIG-T	1332 CCM	160 HP	From 04/2019
1.7 dCi	1749 CCM	131 HP	From 04/2019
1.7 dCi ALL MODE 4x4-i	1749 CCM	131 HP	From 04/2019
1.7 dCi	1749 CCM	163 HP	From 04/2019
1.7 dCi ALL MODE 4x4-i	1749 CCM	163 HP	From 04/2019

X-TRAIL VAN (T32)

Description	Cylinder Capacity	Horse Power	Year
dCi	1598 CCM	131 HP	From 04/2014
dCi 4x4	1598 CCM	131 HP	From 04/2014

RENAULT

AUSTRAL

Description	Cylinder Capacity	Horse Power	Year
TCe 140 (HGMF)	1332 CCM	140 HP	From 07/2022
TCe 160 (HGMJ)	1332 CCM	158 HP	From 07/2022
E-TECH 200 Hybrid (HGM2)	1199 CCM	199 HP	From 10/2022

ESPACE VI (RHN)

Description	Cylinder Capacity	Horse Power	Year
E-TECH 200 Hybrid	1199 CCM	199 HP	From 05/2023

KOLEOS II (HC_)

Description	Cylinder Capacity	Horse Power	Year
1.6 dCi 130	1598 CCM	130 HP	From 04/2016
2.0 dCi 175 4WD	1995 CCM	177 HP	From 04/2016
2.0 dCi 175 (HCAK)	1995 CCM	177 HP	From 04/2016
1.7 BLUE dCi 150 (HCA7)	1749 CCM	150 HP	From 06/2019
2.0 BLUE dCi 190 4WD (HCAN)	1997 CCM	190 HP	From 06/2019
1.3 TCe 160 (HCN2)	1332 CCM	158 HP	From 07/2020
2.0 BLUE DCI 185 (HCAN)	1997 CCM	184 HP	From 01/2020
2.0 BLUE DCI 185 4WD (HCAN)	1997 CCM	184 HP	From 01/2020

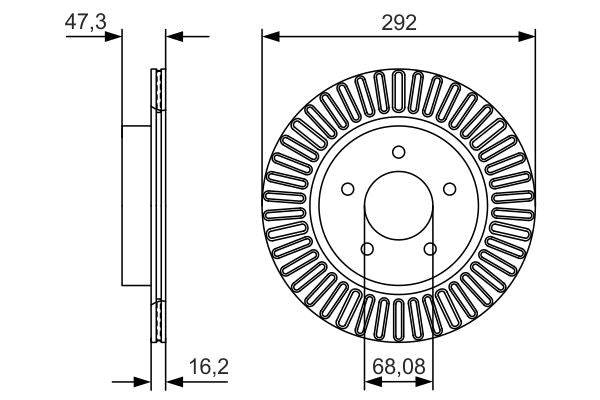

The Bosch 0986479D20 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 292 mm outer diameter, 16 mm brake disc thickness, 14 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 292

Brake Disc Thickness [mm] : 16

Minimum thickness [mm] : 14

Height [mm] : 47

Bolt Hole Circle Ø [mm] : 114.3

Brake Disc Type : Vented

Centering Diameter [mm] : 68

Number of Holes : 5

Surface : Coated

Machining : High-carbon

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 12.8

APEC : DSK3228
APEC : SDK6850
BLUE PRINT : ADBP430150
BLUE PRINT : ADN143180
BORG & BECK : BBD5424
BREMBO : 09.C929.11
DELPHI : BG4779C
DELPHI : BG5191C
Fahren : FBD6850
FEBI BILSTEIN : 108552
FTE : 9082624
HELLA : 8DD 355 123-061
MEYLE : 36-15 523 0056/PD
NAPA : NBD5679
National : NBD1913
SKF : VKBD 90424 V2
TEXTAR : 92278103
TRW : DF6789
VALEO : 673163

Bosch 0986479D20 Brake Disc
