BOSCH

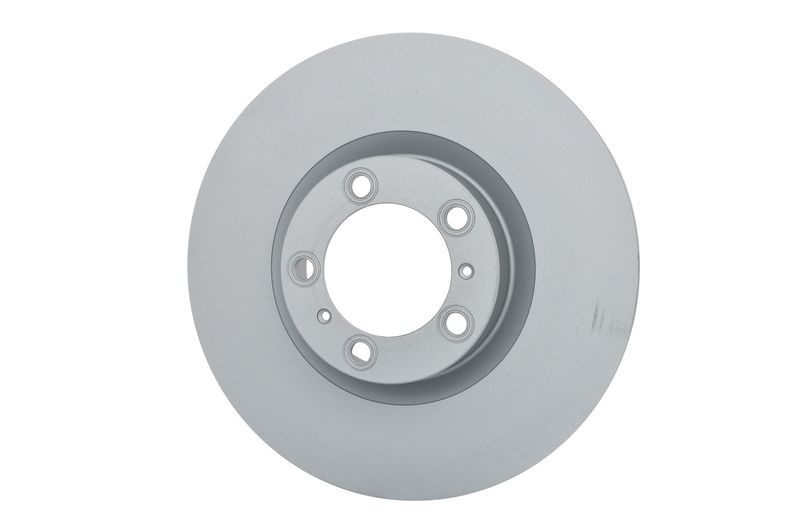

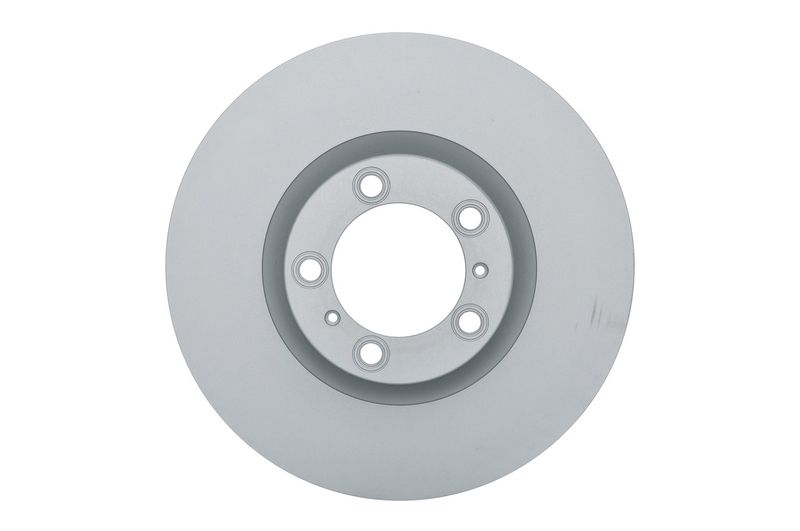

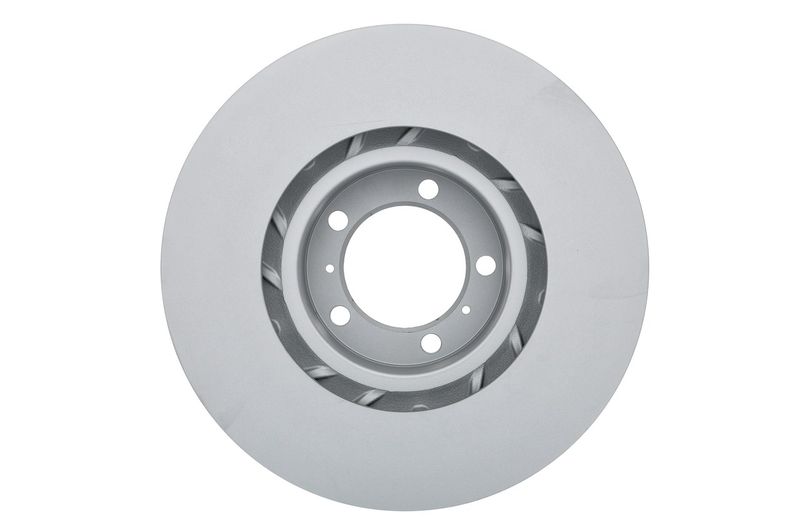

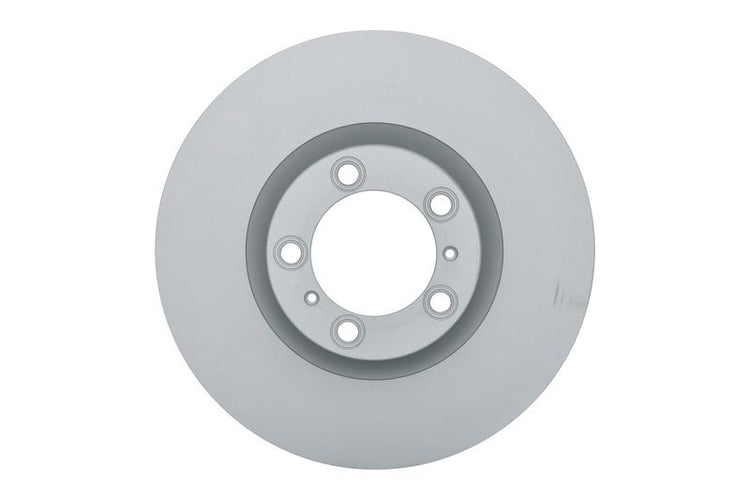

Bosch 0986479D23 Brake Disc

SKU: 0986479D23

Your selected vehicle

Out of stock

Out of Stock

£106.85 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

PORSCHE

PANAMERA (970)

Description	Cylinder Capacity	Horse Power	Year
3.0 D	2967 CCM	250 HP	08/2011 - 07/2013
3.0 D	2967 CCM	211 HP	08/2011 - 07/2013
4.8 S	4806 CCM	400 HP	09/2009 - 07/2013
4.8 4S	4806 CCM	400 HP	09/2009 - 07/2013
3.6	3605 CCM	300 HP	05/2010 - 07/2013
3.6 4	3605 CCM	300 HP	05/2010 - 07/2013
3.0 S E-Hybrid	2995 CCM	380 HP	03/2011 - 07/2013
3.0 S E-Hybrid	2995 CCM	416 HP	07/2013 - 10/2016

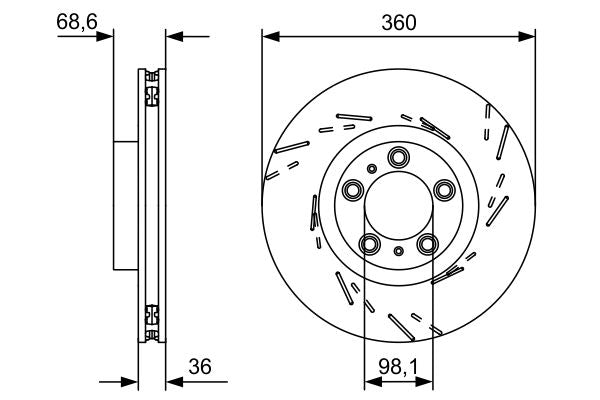

The Bosch 0986479D23 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 360 mm outer diameter, 36 mm brake disc thickness, 34 mm minimum thickness, and slotted and Vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 360

Brake Disc Thickness [mm] : 36

Minimum thickness [mm] : 34

Height [mm] : 68.6

Bolt Hole Circle Ø [mm] : 130

Brake Disc Type : slotted

Brake Disc Type : Vented

Centering Diameter [mm] : 98

Number of Holes : 5

Surface : Coated

Machining : High-carbon

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 15.4

Paired article number : 0 986 479 D22
