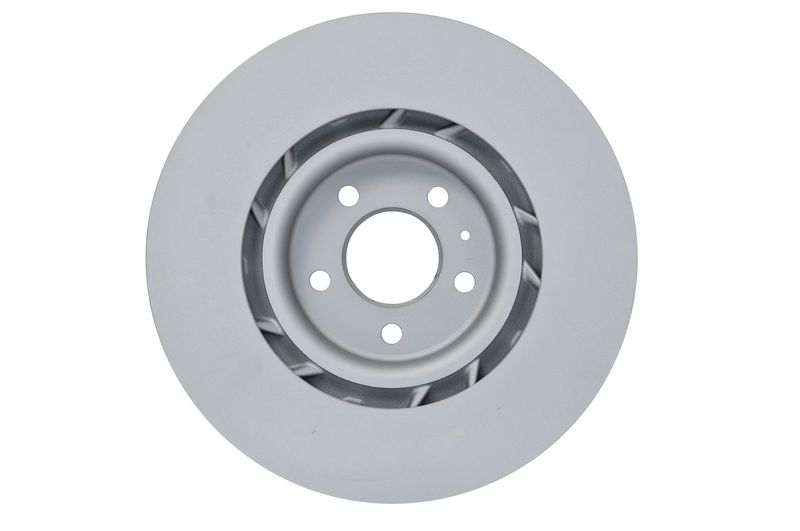

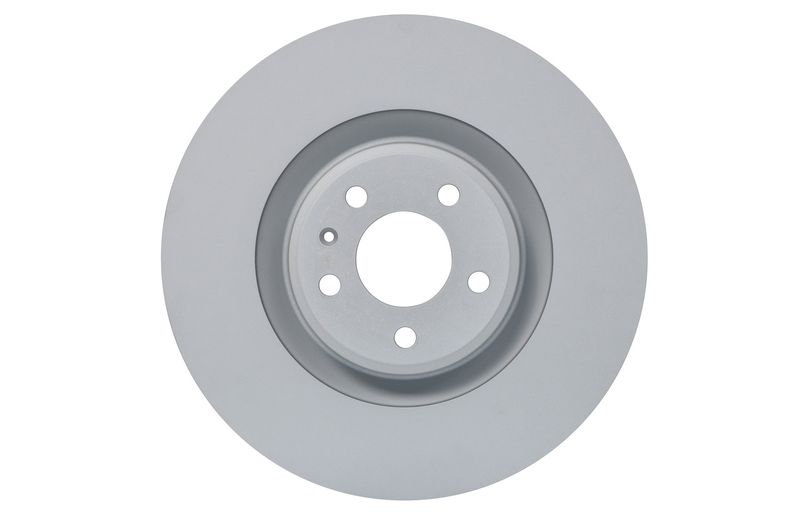

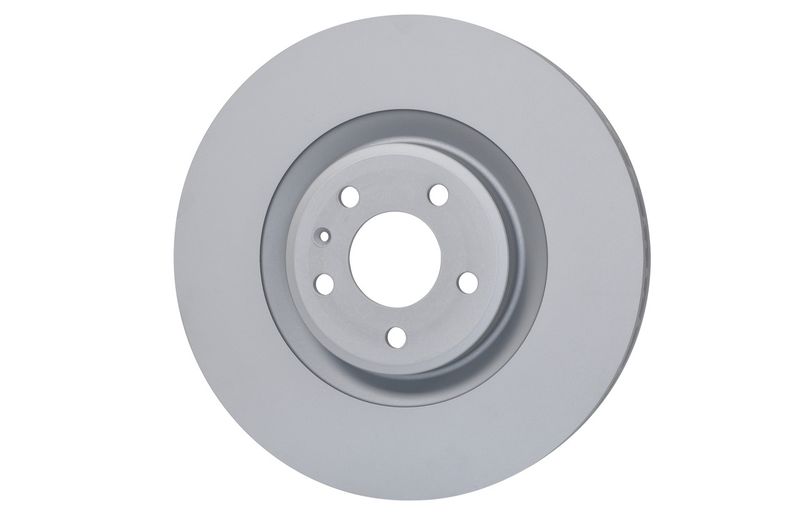

Bosch 0986479D26 Brake Disc

SKU: 0986479D26
Your selected vehicle
Out of stock
Out of Stock
£99.51 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

PORSCHE
MACAN (95B)
Description Cylinder Capacity Horse Power Year
3.0 S 2997 CCM 340 HP 02/2014 - 09/2018
3.0 S Diesel 2967 CCM 258 HP 02/2014 - 09/2018
3.0 S Diesel 2967 CCM 211 HP 02/2014 - 09/2018
3.0 S Diesel 2967 CCM 250 HP 02/2014 - 09/2018
2.0 1984 CCM 237 HP 05/2014 - 09/2018
3.0 S Diesel 2967 CCM 245 HP 02/2014 - 09/2018
2.0 1984 CCM 252 HP From 05/2015
2.0 1984 CCM 245 HP From 05/2018
3.0 S 2995 CCM 354 HP From 05/2018
2.9 Turbo AWD (95BCI1) 2894 CCM 441 HP From 05/2018
2.9 GTS (95BBL1) 2894 CCM 380 HP From 05/2019
2.0 (95BAU1) 1984 CCM 265 HP From 05/2018

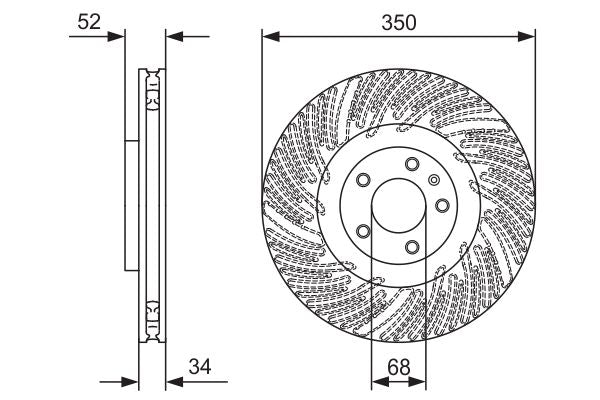

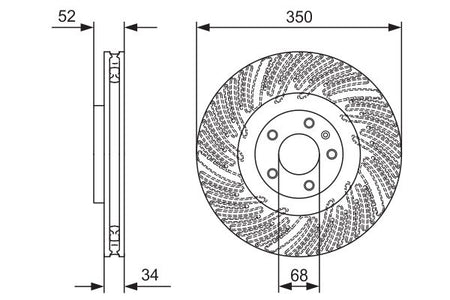

The Bosch 0986479D26 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 350 mm outer diameter, 34 mm brake disc thickness, 32 mm minimum thickness, and slotted and Vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 350
Brake Disc Thickness [mm] : 34
Minimum thickness [mm] : 32
Height [mm] : 52.2
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : slotted
Brake Disc Type : Vented
Centering Diameter [mm] : 68
Surface : Coated
Machining : High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.3
Paired article number : 0 986 479 D28
  • Vendor BOSCH
  • SKU 0986479D26
  • Barcode 4047025570930
  • PORSCHE : 95B615301 95B615301AB 95B615301F 95B615301H 95B615301T
  • APEC : DSK3302
  • BLUE PRINT : ADBP430049
  • BORG & BECK : BBD6197S
  • BREMBO : 09.D936.11
  • DELPHI : BG9331C
  • FEBI BILSTEIN : 171602
  • FTE : 9082661
  • HELLA : 8DD 355 117-181
  • HELLA : 8DD 355 134-361
  • MEYLE : 483 521 0014/PD
  • MINTEX : MDC3021LC
  • National : NBD2354
  • TEXTAR : 92319005
  • BOSCH : BD2447
