BOSCH

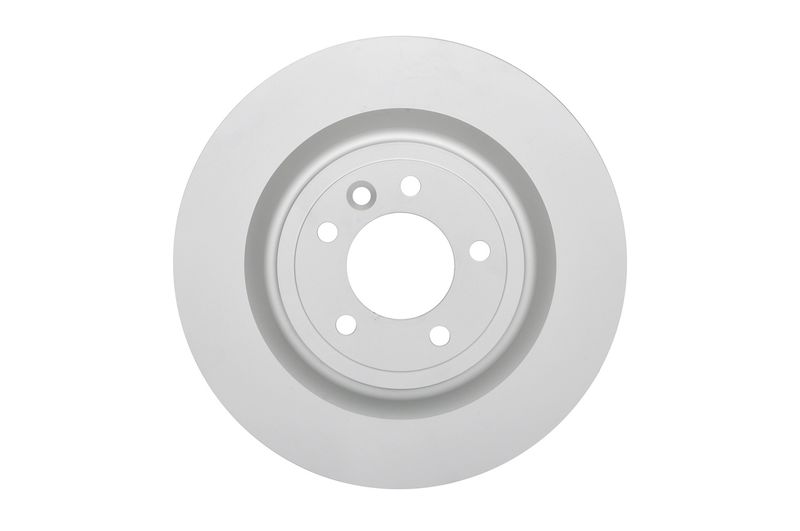

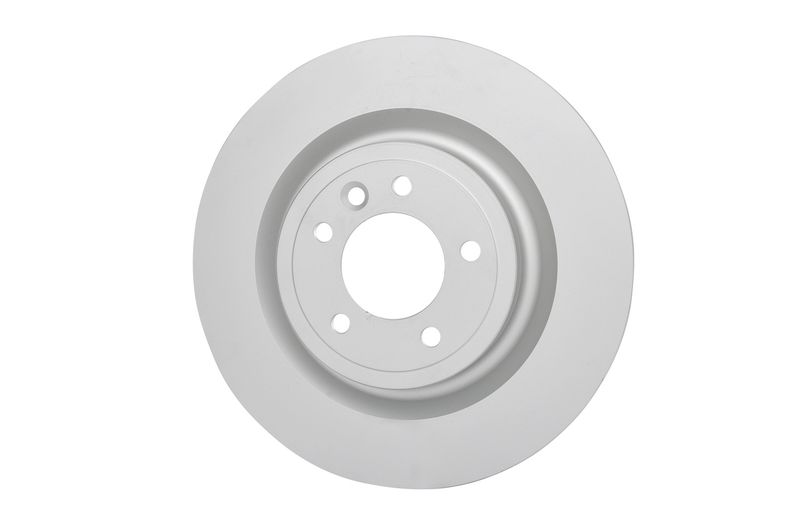

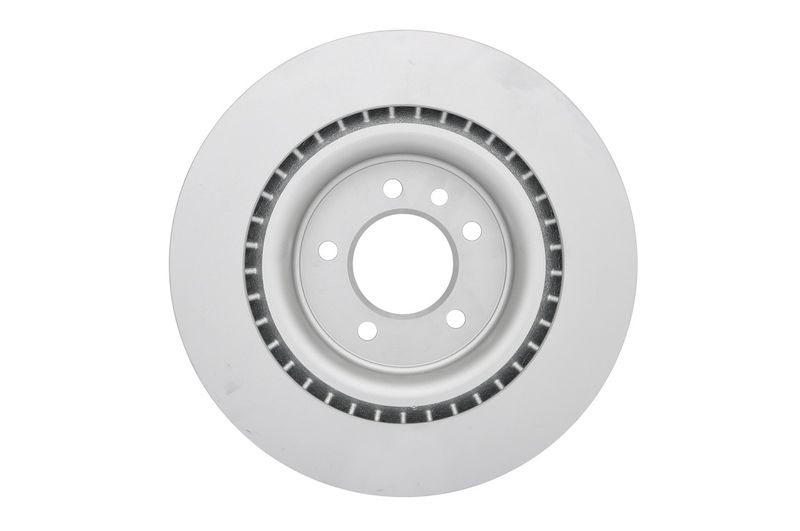

Bosch 0986479D31 Brake Disc

SKU: 0986479D31

Your selected vehicle

Only 4 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£54.22 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

LAND ROVER

DISCOVERY V (L462)

Description	Cylinder Capacity	Horse Power	Year
3.0 Td6 4x4	2993 CCM	258 HP	From 09/2016
3.0 D 4x4	2993 CCM	249 HP	From 09/2016
3.0 D 4x4	2993 CCM	211 HP	From 09/2016
3.0 SCV6 4x4	2995 CCM	340 HP	From 09/2016
2.0 Td4 4x4	1999 CCM	180 HP	From 09/2016
2.0 Sd4 4x4	1999 CCM	241 HP	From 09/2016
2.0 Si4 4x4	1997 CCM	300 HP	From 09/2017
3.0 SDV6 4x4	2993 CCM	306 HP	From 09/2018
D250 MHEV 4x4	2997 CCM	249 HP	From 12/2020
D300 MHEV 4x4	2997 CCM	300 HP	From 12/2020
P360 MHEV 4x4	2996 CCM	360 HP	From 12/2020
D350 MHEV 4x4	2997 CCM	349 HP	From 05/2024

DISCOVERY V VAN (L462)

Description	Cylinder Capacity	Horse Power	Year
2.0 Td4 4x4	1999 CCM	179 HP	09/2016 - 12/2018
2.0 Sd4 4x4	1999 CCM	241 HP	From 09/2016
3.0 Td6 4x4	2993 CCM	258 HP	From 09/2016
3.0 Sdv6 4x4	2993 CCM	306 HP	From 09/2018
3.0 Scv6 4x4	2995 CCM	340 HP	From 09/2016
3.0 D300 MHEV 4x4	2997 CCM	300 HP	From 12/2020

RANGE ROVER IV (L405)

Description	Cylinder Capacity	Horse Power	Year
3.0 SDV6 4x4	2993 CCM	249 HP	08/2012 - 01/2016
3.0 TDV6 4x4	2993 CCM	258 HP	08/2012 - 09/2021
4.4 SDV8 4x4	4367 CCM	340 HP	08/2012 - 09/2021
5.0 SCV8 4x4	5000 CCM	510 HP	08/2012 - 09/2021
3.0 SCV6 4x4	2995 CCM	340 HP	10/2013 - 09/2021
3.0 TDV6 4x4	2993 CCM	211 HP	10/2013 - 01/2016
3.0 SDV6 Hybrid 4x4	2993 CCM	340 HP	10/2013 - 09/2021
5.0 V8 4x4	5000 CCM	375 HP	12/2013 - 01/2016
4.4 SDV8 4x4	4367 CCM	313 HP	08/2013 - 09/2021
5.0 SCV8 4x4	5000 CCM	550 HP	06/2015 - 09/2021
3.0 SCV6 4x4	2995 CCM	380 HP	06/2015 - 09/2021
3.0 SDV6 Hybrid 4x4	2993 CCM	354 HP	06/2015 - 09/2021
5.0 SCV8 4x4	5000 CCM	525 HP	11/2017 - 09/2021
5.0 SCV8 4x4	5000 CCM	566 HP	11/2017 - 09/2021
3.0 SDV6 4x4	2993 CCM	275 HP	10/2018 - 09/2021

RANGE ROVER SPORT II (L494)

Description	Cylinder Capacity	Horse Power	Year
3.0 SCV6 4x4	2995 CCM	340 HP	04/2013 - 12/2019
3.0 TDV6 4x4	2993 CCM	258 HP	04/2013 - 03/2022
3.0 TDV6 4x4	2993 CCM	211 HP	04/2013 - 12/2018
3.0 SDV6 4x4	2993 CCM	249 HP	04/2013 - 03/2022
3.0 SCV6 4x4	2995 CCM	380 HP	06/2015 - 12/2018
2.0 SD4 4x4	1999 CCM	241 HP	08/2016 - 03/2022

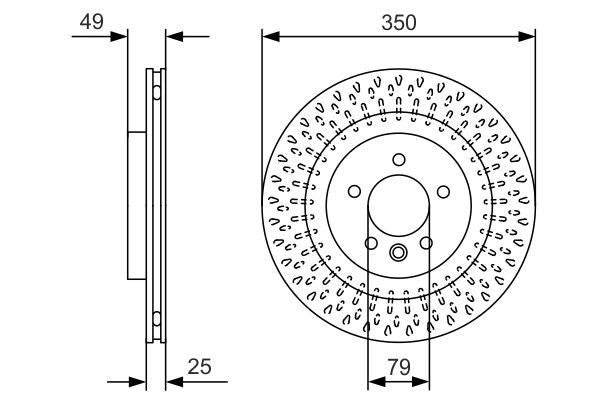

The Bosch 0986479D31 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 350 mm outer diameter, 25 mm brake disc thickness, 22 mm minimum thickness, and vented and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 350

Brake Disc Thickness [mm] : 25

Minimum thickness [mm] : 22

Height [mm] : 49

Bolt Hole Circle Ø [mm] : 120

Brake Disc Type : Vented

Centering Diameter [mm] : 79

Number of Holes : 5

Surface : Coated

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 14.5

Brake Disc Type : internally vented

APEC : DSK3244
APEC : SDK6852
BLUE PRINT : ADJ134348
BORG & BECK : BBD6108S
BREMBO : 09.B503.11
BREMBO : 09.B503.1X
DELPHI : BG9146C
Fahren : FBD6852
FEBI BILSTEIN : 108581
FTE : 9082679
HELLA : 8DD 355 123-091
MEYLE : 53-15 523 0009/PD
NAPA : NBD5682
National : NBD2005
SKF : VKBD 90554 V1
TEXTAR : 92278403
TRW : DF6528S
VALEO : 673312

Bosch 0986479D31 Brake Disc
