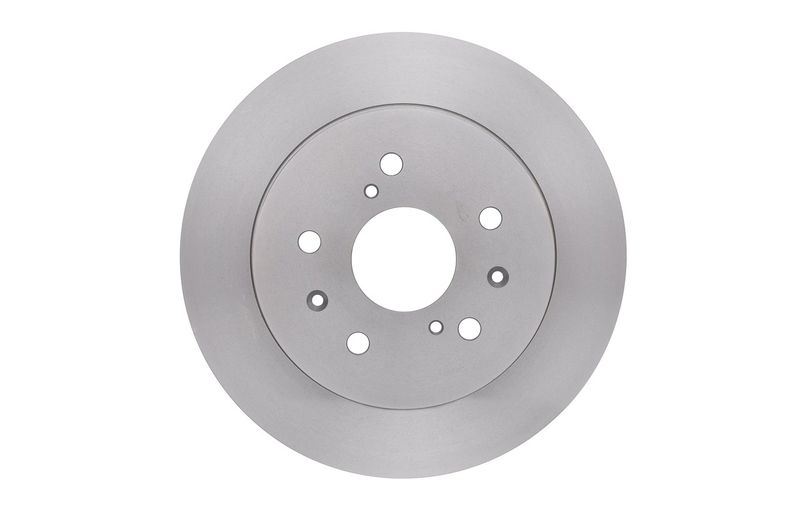

Bosch 0986479D34 Brake Disc - 1
Bosch 0986479D34 Brake Disc - 2

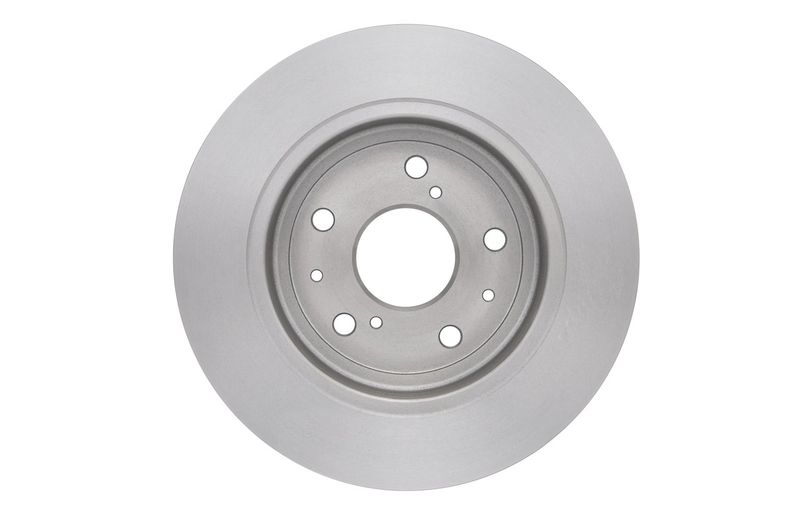

Bosch 0986479D34 Brake Disc - 3
Bosch 0986479D34 Brake Disc - 4
Bosch 0986479D34 Brake Disc - 5

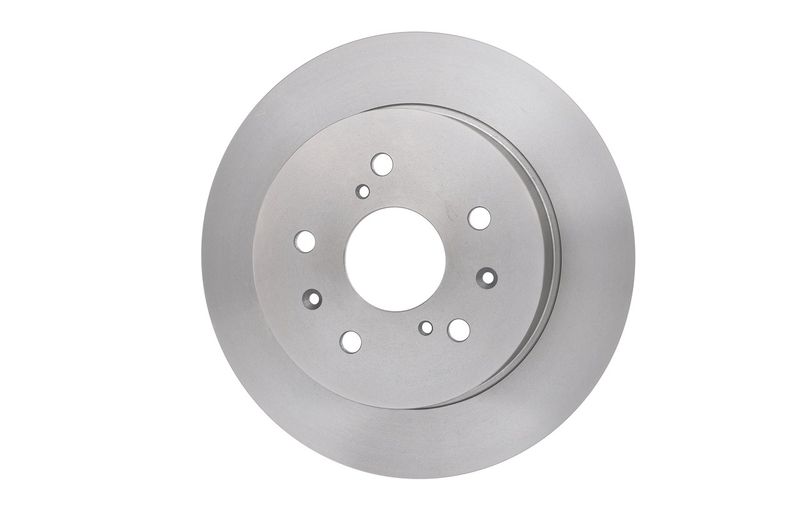

Bosch 0986479D34 Brake Disc - 6
Bosch 0986479D34 Brake Disc - 1
Bosch 0986479D34 Brake Disc - 2
Bosch 0986479D34 Brake Disc - 3
Bosch 0986479D34 Brake Disc - 4
Bosch 0986479D34 Brake Disc - 5
Bosch 0986479D34 Brake Disc - 6
BOSCH

Bosch 0986479D34 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479D34

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£46.12 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

SUZUKI
SWIFT III (MZ, EZ)
Description Cylinder Capacity Horse Power Year
1.6 (RS416, RR 416, ZC31S) 1586 CCM 125 HP From 05/2006
SX4 (EY, GY)
Description Cylinder Capacity Horse Power Year
1.6 VVT (RW416, YA21S) 1586 CCM 107 HP From 06/2006
1.6 VVT (RW416, YA21S) 1586 CCM 120 HP From 07/2009
SX4 Saloon (GY, RW)
Description Cylinder Capacity Horse Power Year
1.6 (RW416) 1586 CCM 120 HP From 10/2007
1.6 (RW416) 1586 CCM 107 HP From 10/2007

The Bosch 0986479D34 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 278.2 mm outer diameter, 9 mm brake disc thickness, 8 mm minimum thickness, and solid and internally vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

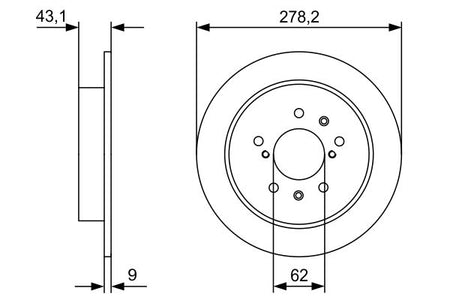

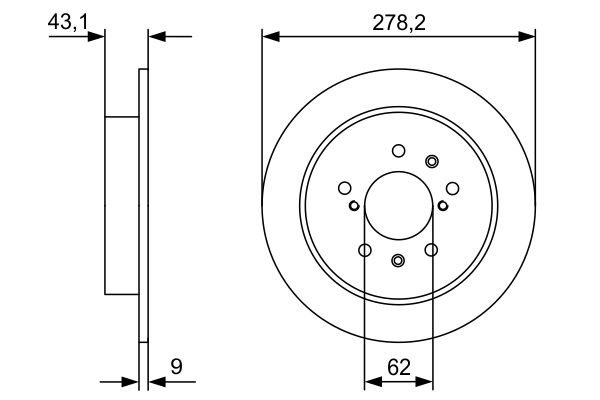

Outer Diameter [mm] : 278.2
Brake Disc Thickness [mm] : 9
Minimum thickness [mm] : 8
Height [mm] : 43.1
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : solid
Centering Diameter [mm] : 62
Number of Holes : 5
Surface : Oiled
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.8
Brake Disc Type : internally vented
  • Vendor BOSCH
  • SKU 0986479D34
  • Barcode 4047025574983
  • SUZUKI : 55611-80J02 55611-80J10 55611-80J11
  • BLUE PRINT : ADK84331
  • BORG & BECK : BBD5168
  • BREMBO : 08.B557.10
  • FEBI BILSTEIN : 108609
  • FTE : 9072348
  • HELLA : 8DD 355 116-791
  • MEYLE : 33-15 523 0005/PD
  • MINTEX : MDC2181
  • TEXTAR : 92222300
  • BOSCH : BD2455
  • BOSCH : E1 90 R - 02C0355/0248
