BOSCH

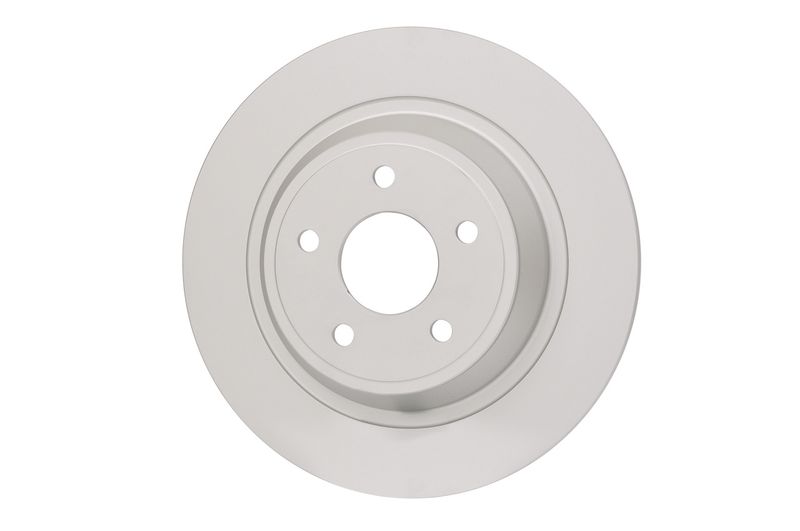

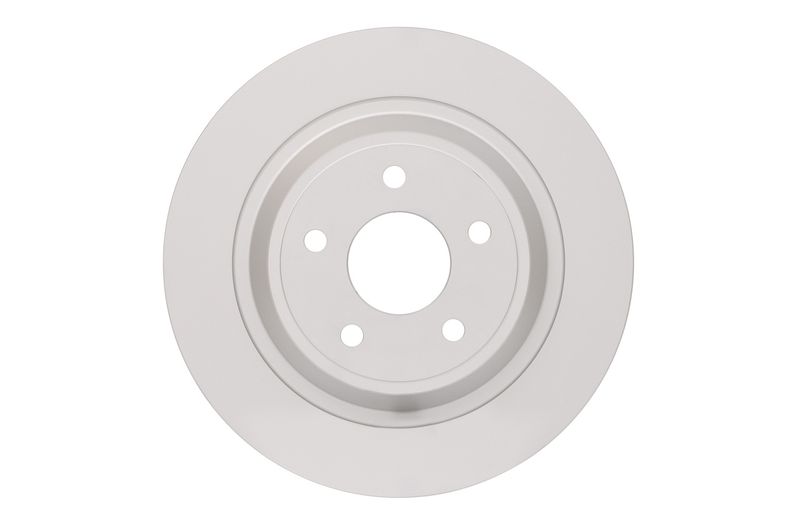

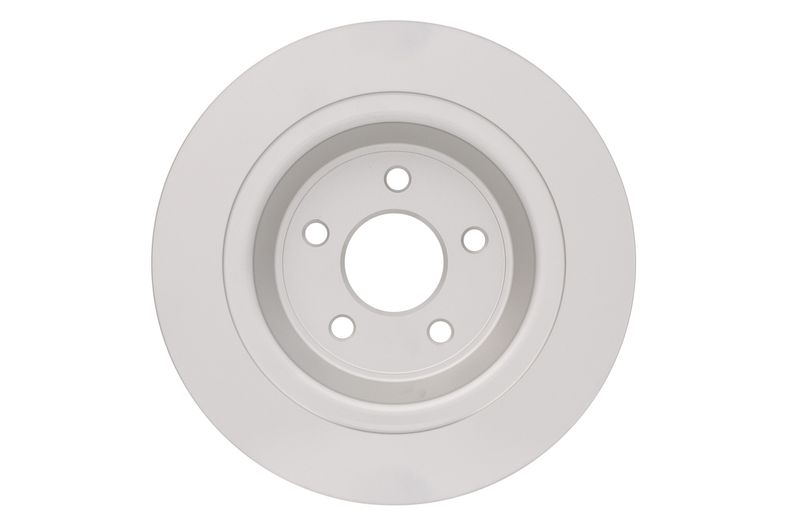

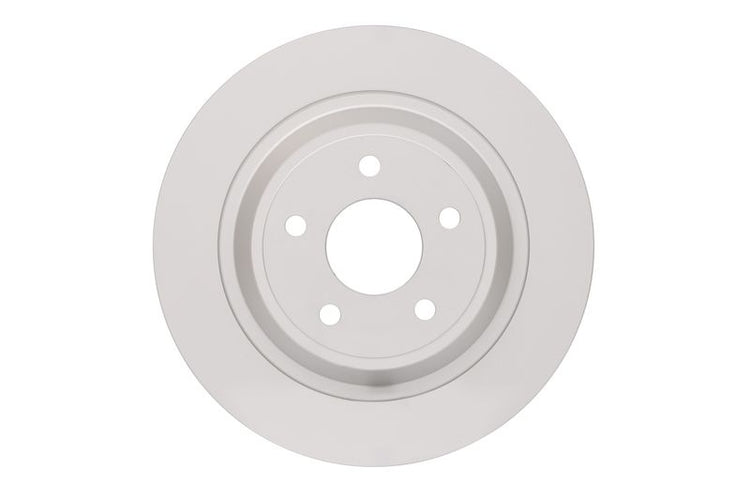

Bosch 0986479D37 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479D37

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£71.89 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

FORD
MONDEO V Saloon (CD)
Description Cylinder Capacity Horse Power Year
2.0 EcoBoost 1999 CCM 240 HP From 05/2015
2.0 Hybrid 1999 CCM 177 HP From 09/2014
2.0 Hybrid 1999 CCM 190 HP From 09/2014
2.0 EcoBoost 1999 CCM 203 HP From 05/2015
2.0 TDCi 1998 CCM 180 HP From 05/2015
2.0 EcoBoost 1999 CCM 199 HP From 05/2015
2.5 2489 CCM 149 HP From 05/2015
2.0 TDCi 4x4 1998 CCM 180 HP From 05/2015
2.0 TDCi Bi-Turbo 1998 CCM 210 HP From 05/2015
2.0 Hybrid 1999 CCM 190 HP From 08/2014
1.0 EcoBoost 998 CCM 125 HP From 02/2015
1.5 EcoBoost 1499 CCM 160 HP From 09/2014
1.5 TDCi 1499 CCM 120 HP From 03/2015
2.0 TDCi 1998 CCM 150 HP From 09/2014
2.0 TDCi 4x4 1998 CCM 150 HP From 09/2014
MONDEO V Turnier (CF)
Description Cylinder Capacity Horse Power Year
1.5 EcoBoost 1499 CCM 160 HP From 09/2014
2.0 EcoBoost 1999 CCM 203 HP From 09/2014
2.0 EcoBoost 1999 CCM 240 HP From 09/2014
1.6 TDCi 1560 CCM 115 HP From 09/2014
2.0 TDCi 1998 CCM 150 HP From 09/2014
2.0 TDCi 1998 CCM 180 HP From 09/2014
1.0 EcoBoost 998 CCM 125 HP From 02/2015
1.5 TDCi 1499 CCM 120 HP From 03/2015
2.0 TDCi Bi-Turbo 1998 CCM 210 HP From 03/2015
2.0 TDCi 4x4 1998 CCM 150 HP From 02/2015
2.0 TDCi 4x4 1998 CCM 180 HP From 02/2015
1.5 EcoBoost 1499 CCM 165 HP From 05/2018
2.0 EcoBlue 1995 CCM 120 HP From 01/2019
2.0 EcoBlue 1995 CCM 150 HP From 01/2019
2.0 EcoBlue 1995 CCM 190 HP From 01/2019
MONDEO V Hatchback (CE)
Description Cylinder Capacity Horse Power Year
1.5 EcoBoost 1499 CCM 160 HP From 09/2014
2.0 EcoBoost 1999 CCM 203 HP From 09/2014
2.0 EcoBoost 1999 CCM 240 HP From 09/2014
1.6 TDCi 1560 CCM 115 HP From 09/2014
2.0 TDCi 1998 CCM 150 HP From 09/2014
2.0 TDCi 1998 CCM 180 HP From 09/2014
1.0 EcoBoost 998 CCM 125 HP From 02/2015
1.5 TDCi 1499 CCM 120 HP From 03/2015
2.0 TDCi Bi-Turbo 1998 CCM 210 HP From 03/2015
2.0 TDCi 4x4 1998 CCM 150 HP From 02/2015
2.0 TDCi 4x4 1998 CCM 180 HP From 02/2015
1.5 EcoBoost 1499 CCM 165 HP From 05/2018
2.0 EcoBlue 1995 CCM 120 HP From 01/2019
2.0 EcoBlue 1995 CCM 150 HP From 01/2019
2.0 EcoBlue 1995 CCM 190 HP From 01/2019

The Bosch 0986479D37 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 302 mm outer diameter, 11 mm brake disc thickness, 9.5 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

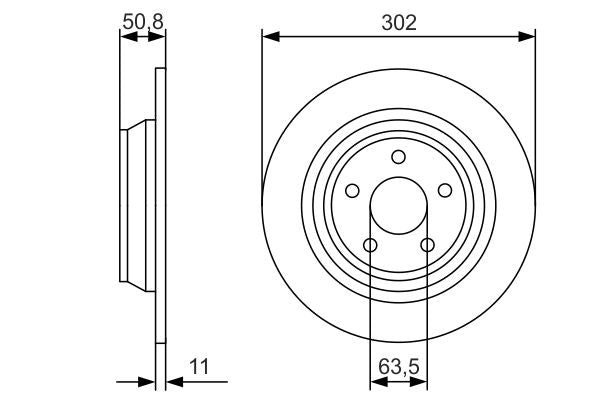

Outer Diameter [mm] : 302
Brake Disc Thickness [mm] : 11
Minimum thickness [mm] : 9.5
Height [mm] : 50.8
Bolt Hole Circle Ø [mm] : 108
Brake Disc Type : solid
Centering Diameter [mm] : 63.5
Number of Holes : 5
Surface : Coated
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.8
  • Vendor BOSCH
  • SKU 0986479D37
  • Barcode 4047025568173
  • FORD : DG9C2A315BC DG9C2A315BD 5202204
  • APEC : DSK3121
  • APEC : SDK6810
  • BLUE PRINT : ADF124356
  • BORG & BECK : BBD5385
  • BREMBO : 08.N257.21
  • DELPHI : BG4703C
  • Fahren : FBD6810
  • FEBI BILSTEIN : 104853
  • FTE : 9072419
  • FTE : 9082252
  • HELLA : 8DD 355 122-451
  • MEYLE : 715 523 0032/PD
  • MINTEX : MDC2663
  • NAPA : NBD5599
  • SKF : VKBD 91101 S2
  • TEXTAR : 92268703
  • VALEO : 672977
  • BOSCH : BD2458
  • BOSCH : E1 90 R - 02C0100/0498
