BOSCH

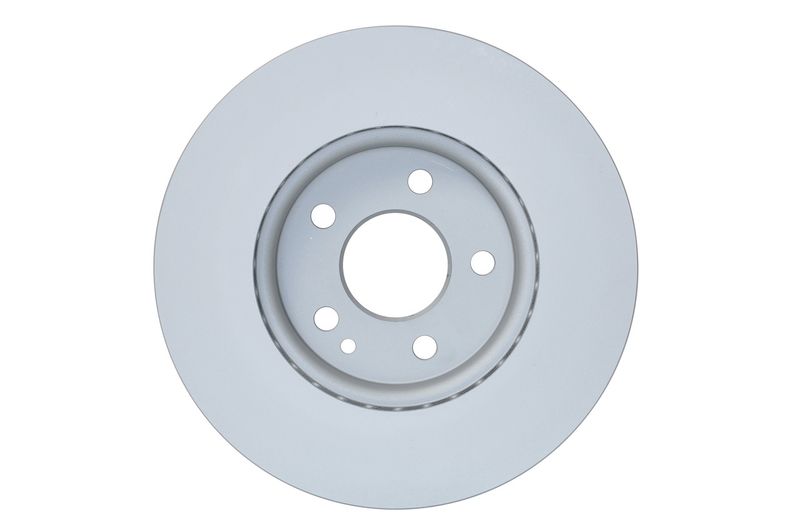

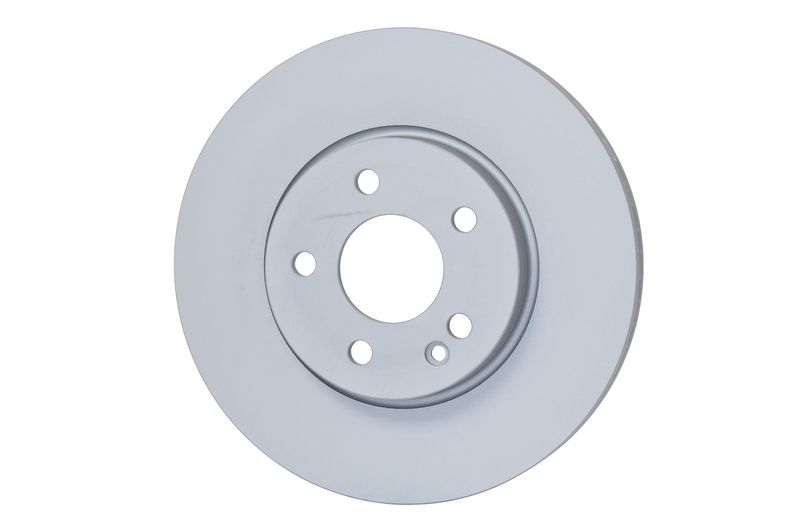

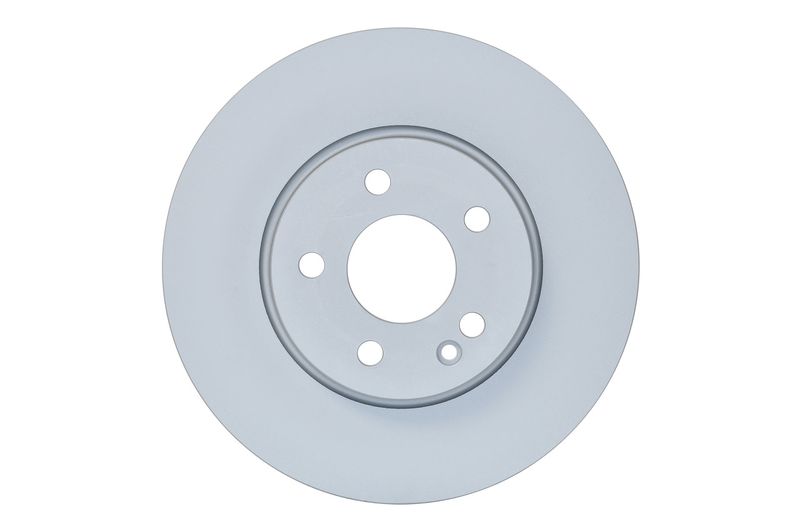

Bosch 0986479D57 Brake Disc

SKU: 0986479D57
Your selected vehicle
Only 3 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£44.58 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ
MARCO POLO Camper (W447)
Description Cylinder Capacity Horse Power Year
170 CDI (447.703) 1749 CCM 102 HP From 06/2020
200 CDI (447.703) 1749 CCM 136 HP From 06/2020
VITO Dualiner (W447)
Description Cylinder Capacity Horse Power Year
109 CDI (447.701, 447.703, 447.705) 1598 CCM 88 HP From 10/2014
111 CDI (447.701, 447.703, 447.705) 1598 CCM 114 HP From 10/2014
110 CDI (447.701, 447.703, 447.705) 1749 CCM 102 HP From 09/2019
114 CDI (447.701, 447.703, 447.705) 1749 CCM 136 HP From 09/2019
VITO Tourer (W447)
Description Cylinder Capacity Horse Power Year
109 CDI / 109 BlueTEC (447.701, 447.703, 447.705) 1598 CCM 88 HP From 10/2014
111 CDI / 111 BlueTEC (447.701, 447.703, 447.705) 1598 CCM 114 HP From 10/2014
eVITO (447.703, 447.705) 116 HP From 04/2019
VITO Van (W447)
Description Cylinder Capacity Horse Power Year
109 CDI (447.601, 447.603, 447.605) 1598 CCM 88 HP From 10/2014
111 CDI (447.601, 447.603, 447.605) 1598 CCM 114 HP From 10/2014
eVITO (447.603, 447.605) 116 HP From 03/2019
110 CDI (447.601, 447.603, 447.605) 1749 CCM 102 HP From 09/2019
114 CDI (447.601, 447.603, 447.605) 1749 CCM 136 HP From 09/2019

The Bosch 0986479D57 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 300 mm outer diameter, 28 mm brake disc thickness, 25 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

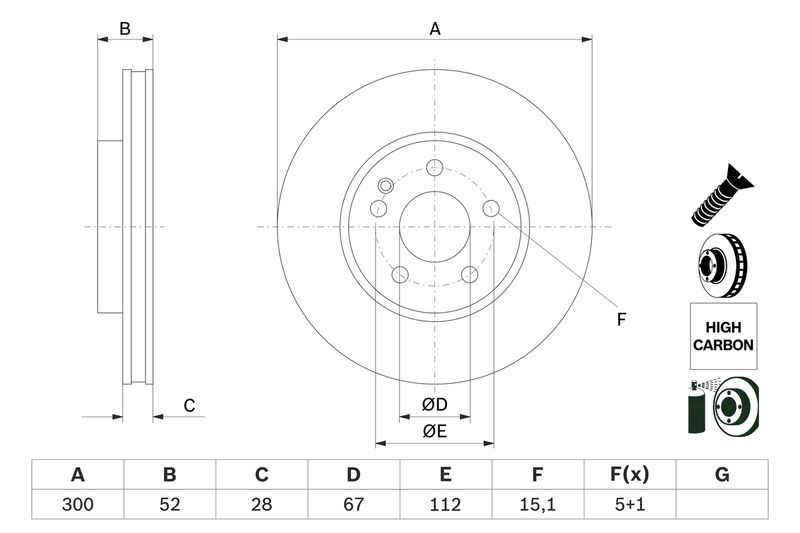

Function : Brake Disc
Outer Diameter [mm] : 300
Brake Disc Thickness [mm] : 28
Minimum thickness [mm] : 25
Height [mm] : 51.9
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Vented
Centering Diameter [mm] : 67
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15
  • Vendor BOSCH
  • SKU 0986479D57
  • Barcode 4047026143157
  • MERCEDES-BENZ : A 447 421 03 12 447 421 03 12
  • APEC : DSK3154
  • APEC : SDK6974
  • BLUE PRINT : ADU174387
  • BORG & BECK : BBD5392
  • BREMBO : 09.C063.11
  • DELPHI : BG4825C
  • FEBI BILSTEIN : 106605
  • FTE : 9071077
  • HELLA : 8DD 355 126-511
  • MEYLE : 015 521 0043/PD
  • MINTEX : MDC2798C
  • NAPA : NBD5357
  • National : NBD1966
  • SKF : VKBD 80191 V1
  • TEXTAR : 92291803
  • TRW : DF6745S
  • VALEO : 672785
  • BOSCH : BD2543
