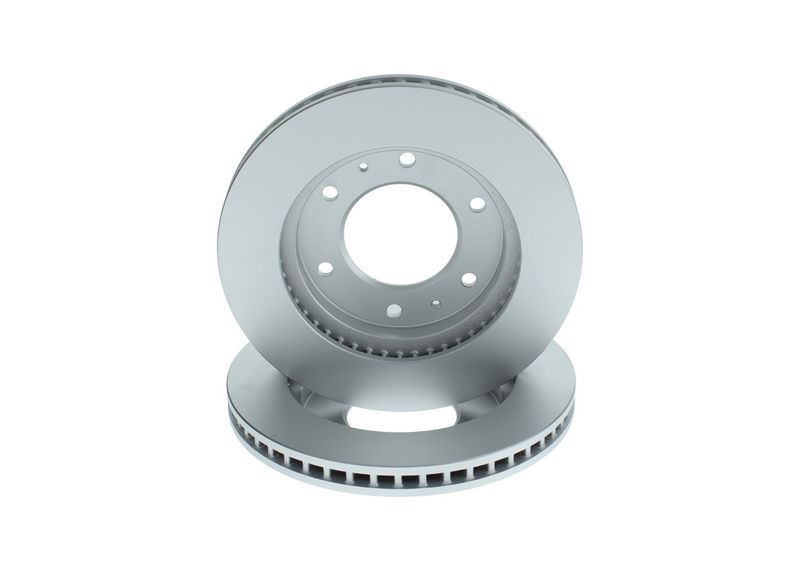

Bosch 0986479D69 Brake Disc - 1

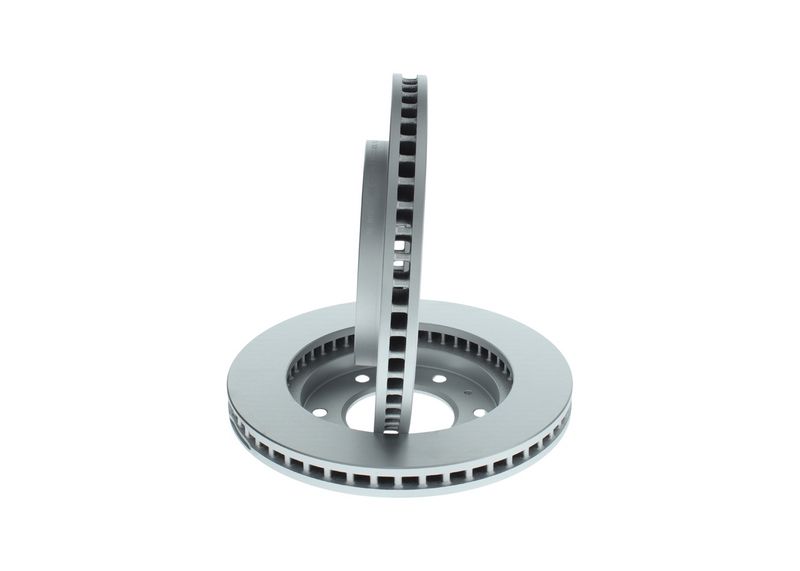

Bosch 0986479D69 Brake Disc - 2

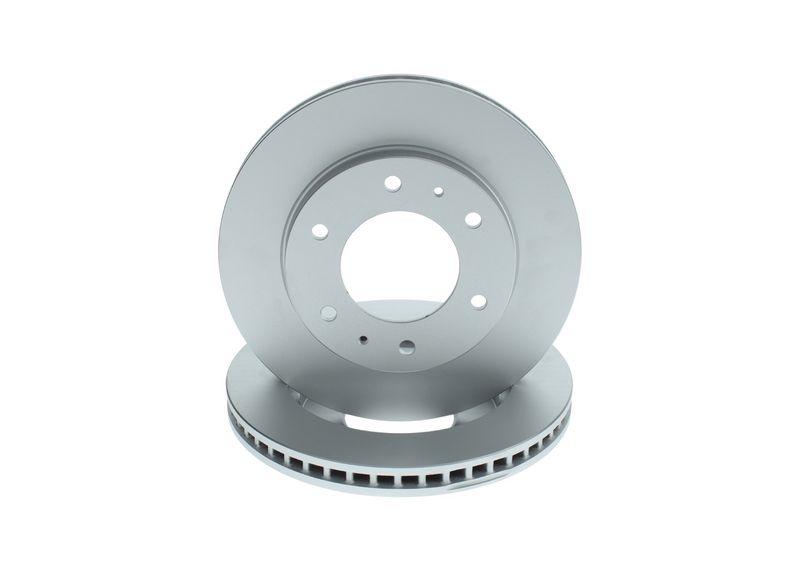

Bosch 0986479D69 Brake Disc - 3

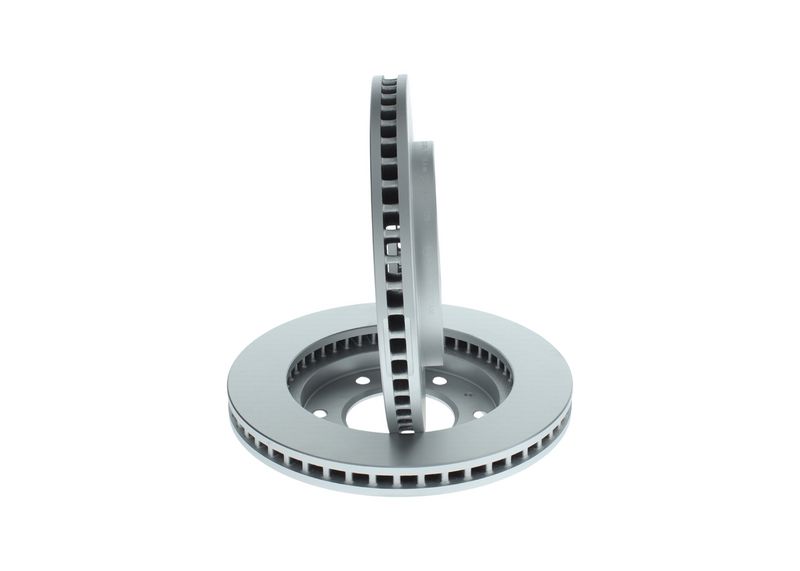

Bosch 0986479D69 Brake Disc - 4

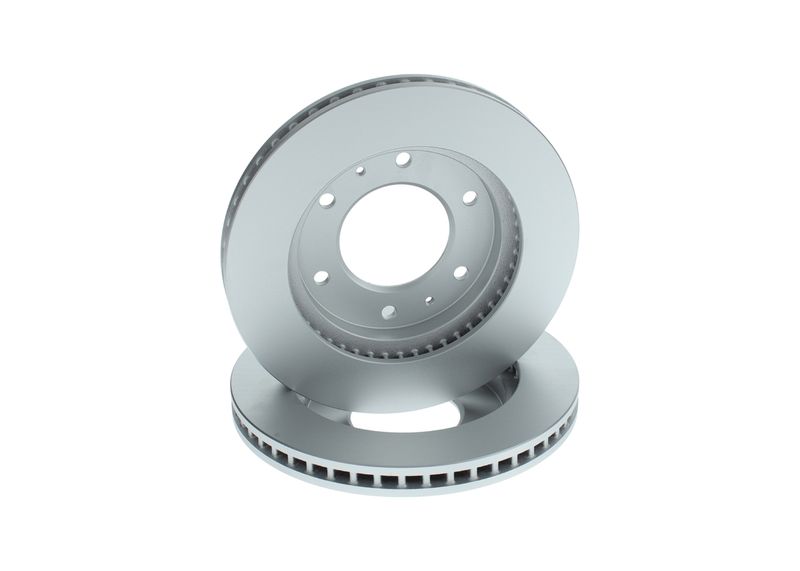

Bosch 0986479D69 Brake Disc - 5

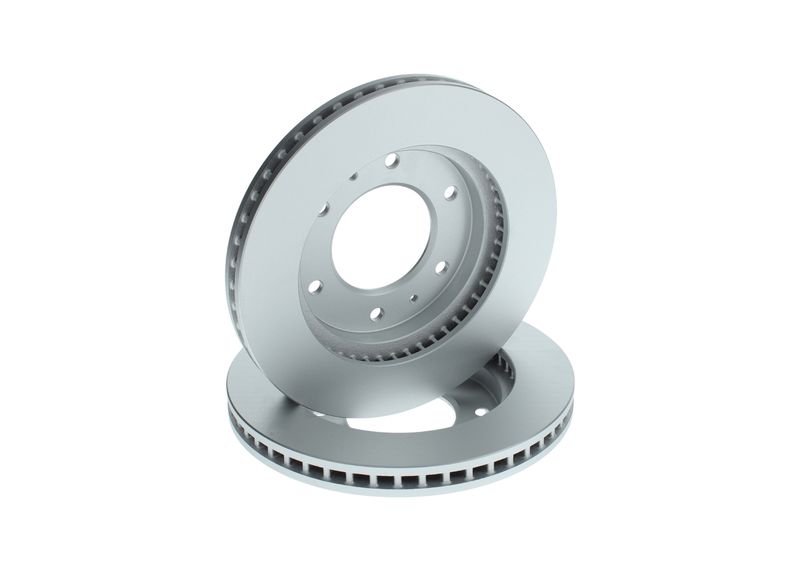

Bosch 0986479D69 Brake Disc - 6
Bosch 0986479D69 Brake Disc - 1
Bosch 0986479D69 Brake Disc - 2
Bosch 0986479D69 Brake Disc - 3
Bosch 0986479D69 Brake Disc - 4
Bosch 0986479D69 Brake Disc - 5
Bosch 0986479D69 Brake Disc - 6
BOSCH

Bosch 0986479D69 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479D69

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 3 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£61.49 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

MITSUBISHI
L200 / TRITON (KJ_, KK_, KL_)
Description Cylinder Capacity Horse Power Year
2.4 DI-D 4WD (KL1T) 2442 CCM 181 HP From 11/2014
2.4 DI-D 4WD (KJ0T) 2442 CCM 154 HP From 09/2015
2.4 DI-D (KJ0T) 2442 CCM 154 HP From 09/2015
2.2 DI-D 4WD 2268 CCM 150 HP From 07/2019
2.2 DI-D 2268 CCM 150 HP From 07/2019

The Bosch 0986479D69 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 294.5 mm outer diameter, 28 mm brake disc thickness, 26.4 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 294.5
Brake Disc Thickness [mm] : 28
Minimum thickness [mm] : 26.4
Height [mm] : 46.2
Bolt Hole Circle Ø [mm] : 139.7
Brake Disc Type : Vented
Centering Diameter [mm] : 94
Number of Holes : 6
Surface : Coated
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.5
  • Vendor BOSCH
  • SKU 0986479D69
  • Barcode 4047026140903
  • MITSUBISHI : 4615A201
  • BLUE PRINT : ADC443133
  • BORG & BECK : BBD4692
  • BREMBO : 09.A868.10
  • BREMBO : 09.A868.11
  • BREMBO : 09.A868.1X
  • DELPHI : BG4257
  • FEBI BILSTEIN : 170044
  • FTE : 9082783
  • HELLA : 8DD 355 115-731
  • MEYLE : 32-15 521 0028
  • MEYLE : 32-15 521 0028/PD
  • MINTEX : MDC1960
  • National : NBD2047
  • TEXTAR : 92180203
  • TEXTAR : 92180205
  • BOSCH : BD2555
  • BOSCH : E1 90R-02C0074/1638
