BOSCH

Bosch 0986479D71 Brake Disc

SKU: 0986479D71
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£85.97 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
3 (BM, BN)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 120 HP 09/2013 - 05/2019
2.2 D 2191 CCM 150 HP 09/2013 - 05/2019
2.0 1998 CCM 165 HP 07/2013 - 05/2019
1.5 D (BMLFS, BM4, BN4) 1499 CCM 105 HP 02/2016 - 05/2019
3 Saloon (BM_, BN_)
Description Cylinder Capacity Horse Power Year
2.0 1998 CCM 120 HP 09/2013 - 05/2019
2.2 D 2191 CCM 150 HP 09/2013 - 05/2019
1.5 D (BMLFP, BMLFS) 1499 CCM 105 HP 06/2016 - 05/2019
CX-3 (DK)
Description Cylinder Capacity Horse Power Year
1.5 SKYACTIV-D (DK2WS, DK5FW) 1499 CCM 105 HP 02/2015 - 01/2018
1.5 SKYACTIV-D AWD (DK4WS, DK5AW) 1499 CCM 105 HP 02/2015 - 01/2018
2.0 SKYACTIV-G (DK5W, DK6W) 1998 CCM 120 HP From 05/2015
2.0 SKYACTIV-G AWD (DK4W7, DKEAW) 1998 CCM 150 HP From 05/2015
1.8 SKYACTIV-D AWD (DK2WS) 1759 CCM 116 HP From 02/2018
1.8 SKYACTIV-D (DK4WS) 1759 CCM 116 HP From 02/2018
2.0 SKYACTIV-G 1998 CCM 121 HP From 02/2018

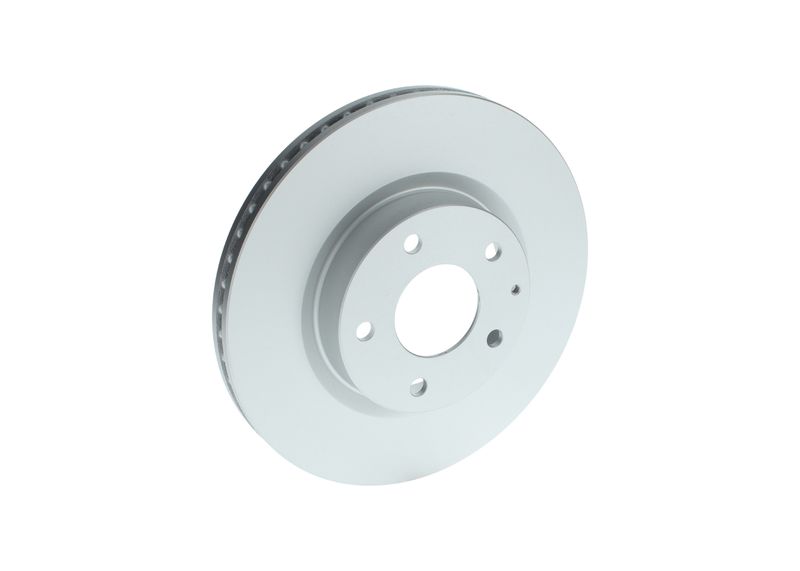

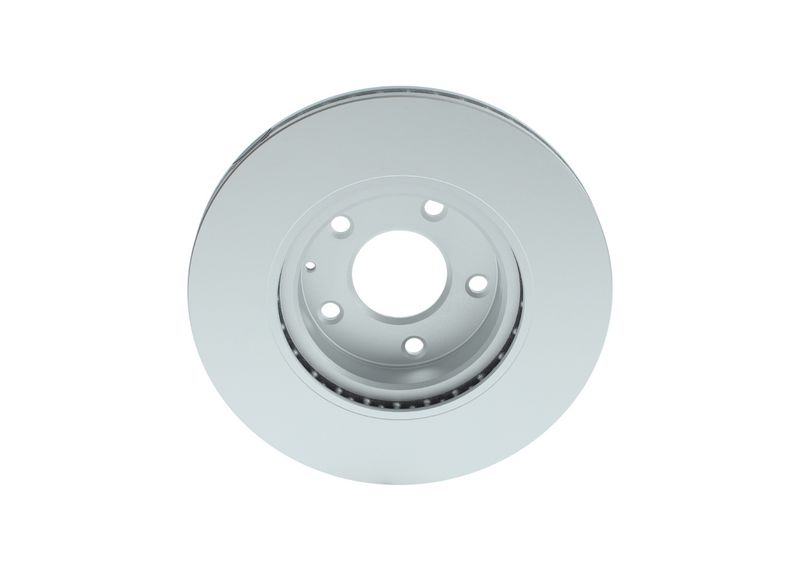

The Bosch 0986479D71 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 295 mm outer diameter, 25 mm brake disc thickness, 23 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 295
Brake Disc Thickness [mm] : 25
Minimum thickness [mm] : 23
Height [mm] : 51.5
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 68
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.3
  • Vendor BOSCH
  • SKU 0986479D71
  • Barcode 4047026140910
  • MAZDA : BJT2-33-251A BKC5-33-251 B45G-33-251A
  • APEC : DSK3137
  • APEC : SDK6818
  • BLUE PRINT : ADM543130
  • BORG & BECK : BBD5381
  • BREMBO : 09.C652.11
  • BREMBO : 09.C652.1X
  • DELPHI : BG4713C
  • Fahren : FBD6818
  • FEBI BILSTEIN : 108514
  • FTE : 9071377
  • HELLA : 8DD 355 120-451
  • MEYLE : 35-15 521 0043
  • MEYLE : 35-15 521 0043/PD
  • MINTEX : MDC2604
  • NAPA : NBD5372
  • SKF : VKBD 80164 V2
  • TEXTAR : 92267603
  • TRW : DF6731
  • VALEO : 673156
  • BOSCH : BD2557
  • BOSCH : E1 90R-02C0339/0736
