BOSCH

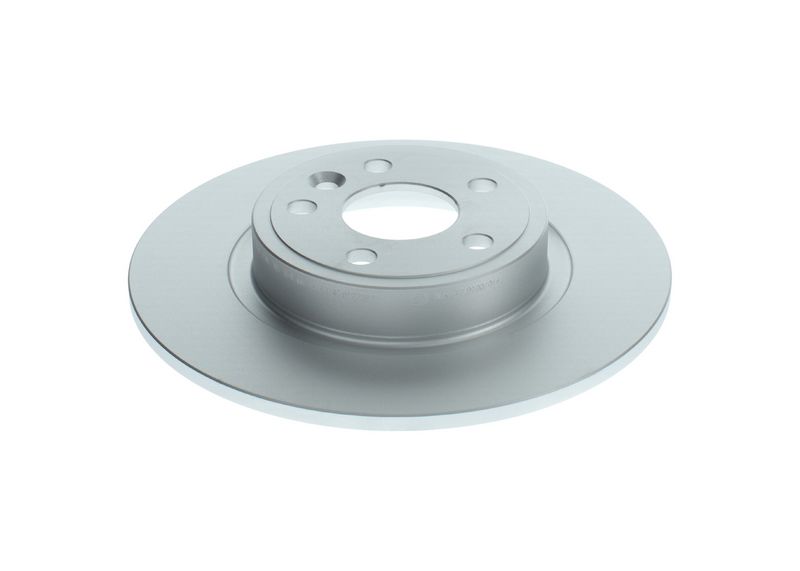

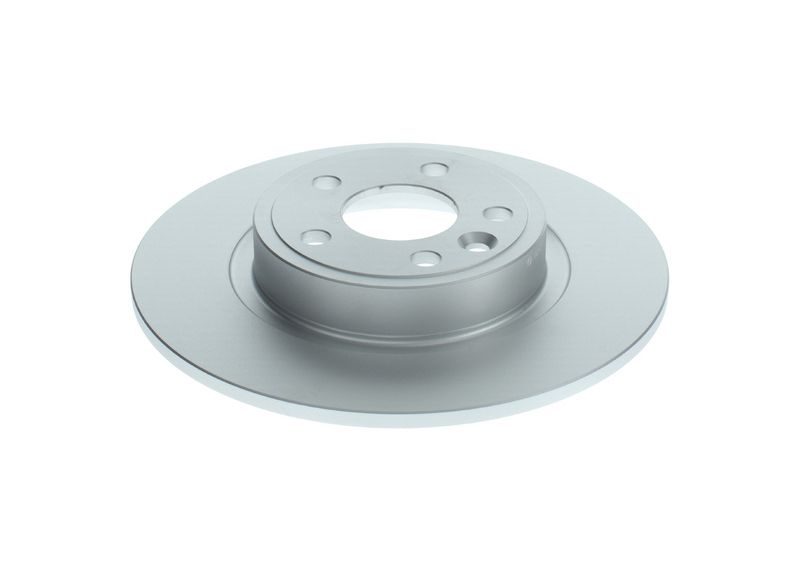

Bosch 0986479D80 Brake Disc

SKU: 0986479D80

Your selected vehicle

In stock

Order by 17:00 for same-day dispatch

£64.46 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

JAGUAR

E-PACE (X540)

Description	Cylinder Capacity	Horse Power	Year
2.0 P200 AWD	1997 CCM	249 HP	From 09/2017
2.0 AWD	1997 CCM	300 HP	From 09/2017
2.0 D150	1999 CCM	150 HP	From 09/2017
2.0 D150 AWD	1999 CCM	150 HP	From 09/2017
2.0 D180 AWD	1999 CCM	179 HP	From 09/2017
2.0 D240 AWD	1999 CCM	241 HP	From 09/2017
2.0 P200 AWD	1997 CCM	200 HP	From 08/2018

XE (X760)

Description	Cylinder Capacity	Horse Power	Year
2.0 D	1999 CCM	163 HP	From 03/2015
2.0 D	1999 CCM	180 HP	From 03/2015
2.0 D200 MHEV	1997 CCM	204 HP	From 11/2020

XF II (X260)

Description	Cylinder Capacity	Horse Power	Year
3.0	2995 CCM	340 HP	From 05/2015
3.0	2995 CCM	380 HP	From 05/2015
3.0 D	2993 CCM	300 HP	From 05/2015
2.0 D	1999 CCM	163 HP	From 05/2015
2.0 D	1999 CCM	180 HP	From 05/2015
3.0 AWD	2995 CCM	340 HP	From 07/2015
3.0 AWD	2995 CCM	380 HP	From 07/2015
2.0 D AWD	1999 CCM	180 HP	From 03/2016
2.0 D	1999 CCM	241 HP	From 03/2017
2.0 D AWD	1999 CCM	241 HP	From 03/2017
2.0	1997 CCM	200 HP	From 03/2017
2.0	1997 CCM	250 HP	From 03/2017
2.0 AWD	1997 CCM	250 HP	From 03/2017
2.0 AWD	1997 CCM	300 HP	From 09/2017

XF SPORTBRAKE (X260)

Description	Cylinder Capacity	Horse Power	Year
2.0 D	1999 CCM	163 HP	From 07/2017
2.0 D	1999 CCM	180 HP	From 07/2017
2.0 D AWD	1999 CCM	180 HP	From 07/2017
2.0 D AWD	1999 CCM	241 HP	From 07/2017
3.0 D	2993 CCM	300 HP	From 07/2017
2.0	1997 CCM	250 HP	From 07/2017
3.0 AWD	2995 CCM	380 HP	From 07/2017
3.0	2995 CCM	380 HP	From 07/2017
2.0	1997 CCM	200 HP	From 07/2017
2.0 AWD	1997 CCM	300 HP	From 08/2018
2.0 D200 MHEV	1997 CCM	204 HP	From 11/2020
2.0 D200 MHEV AWD	1997 CCM	204 HP	From 11/2020

LAND ROVER

DISCOVERY SPORT (L550)

Description	Cylinder Capacity	Horse Power	Year
2.0 D 4x4	1999 CCM	150 HP	From 12/2014
2.2 D 4x4	2179 CCM	150 HP	From 09/2014
2.2 D 4x4	2179 CCM	190 HP	From 09/2014
2.0 4x4	1999 CCM	241 HP	From 11/2014
2.0 D 4x4	1999 CCM	180 HP	From 06/2015
2.0 D	1999 CCM	150 HP	From 08/2015
2.0 4x4	1997 CCM	290 HP	From 08/2017
2.0 D 4x4	1999 CCM	241 HP	From 08/2017
2.0 Si4 FLEX 4x4	1997 CCM	241 HP	From 12/2018

The Bosch 0986479D80 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 300 mm outer diameter, 10 mm brake disc thickness, 8 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 300

Brake Disc Thickness [mm] : 10

Minimum thickness [mm] : 8

Height [mm] : 42.2

Bolt Hole Circle Ø [mm] : 108

Brake Disc Type : solid

Centering Diameter [mm] : 63.55

Number of Holes : 5

Surface : Coated

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 15.7

APEC : DSK3123
APEC : DSK3185
APEC : SDK6811
APEC : SDK6833
BLUE PRINT : ADJ134362
BLUE PRINT : ADJ134363
BORG & BECK : BBD5434
BORG & BECK : BBD5442
BREMBO : 08.C208.11
BREMBO : 08.C208.1X
DELPHI : BG4766C
DELPHI : BG4930C
Fahren : FBD6811
Fahren : FBD6833
FEBI BILSTEIN : 108577
FEBI BILSTEIN : 108585
FTE : 9082683
HELLA : 8DD 355 126-721
MEYLE : 18-15 523 0015/PD
MINTEX : MDC2822C
MINTEX : MDC2911C
NAPA : NBD5666
NAPA : NBD5673
SKF : VKBD 91103 S2
TEXTAR : 92293803
TEXTAR : 92309505
TRW : DF6947
VALEO : 673430

Bosch 0986479D80 Brake Disc
