BOSCH

Bosch 0986479D86 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479D86

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock
Out of Stock
£81.27 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

FORD
KUGA II (DM2)
Description Cylinder Capacity Horse Power Year
1.5 EcoBoost 1499 CCM 150 HP 09/2014 - 06/2019
1.5 EcoBoost 4x4 1499 CCM 182 HP 09/2014 - 06/2018
2.0 TDCi 1997 CCM 120 HP 09/2014 - 06/2019
2.0 TDCi 1997 CCM 150 HP 09/2014 - 06/2019
2.0 TDCi 4x4 1997 CCM 150 HP 09/2014 - 06/2019
2.0 TDCi 4x4 1997 CCM 180 HP 09/2014 - 06/2019
2.0 TDCi 1997 CCM 115 HP 03/2013 - 12/2019
KUGA II VAN
Description Cylinder Capacity Horse Power Year
1.5 EcoBoost 1499 CCM 150 HP 09/2014 - 12/2019
1.5 EcoBoost 4x4 1499 CCM 182 HP 09/2014 - 12/2019
2.0 TDCi 1997 CCM 150 HP 09/2014 - 12/2019
2.0 TDCi 4x4 1997 CCM 150 HP 09/2014 - 12/2019
2.0 TDCi 4x4 1998 CCM 180 HP 09/2014 - 12/2019
1.5 EcoBoost 1499 CCM 120 HP 06/2019 - 12/2019
1.5 EcoBoost 4x4 1499 CCM 176 HP 06/2019 - 12/2019
2.0 TDCi 1997 CCM 120 HP 06/2019 - 12/2019
1.5 TDCi 1499 CCM 120 HP 01/2019 - 12/2019

The Bosch 0986479D86 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 316 mm outer diameter, 11.5 mm brake disc thickness, 9.5 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

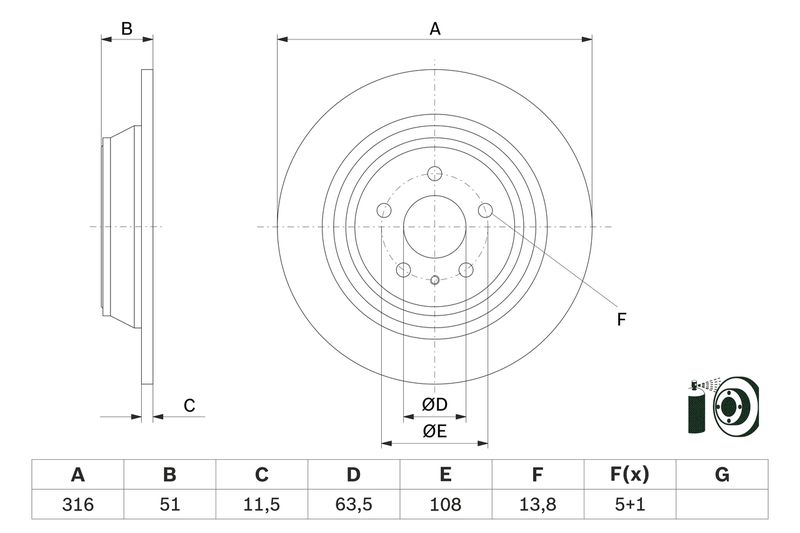

Function : Brake Disc
Outer Diameter [mm] : 316
Brake Disc Thickness [mm] : 11.5
Minimum thickness [mm] : 9.5
Height [mm] : 51
Bolt Hole Circle Ø [mm] : 108
Brake Disc Type : solid
Centering Diameter [mm] : 63.5
Number of Holes : 5
Surface : Coated
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.8
  • Vendor BOSCH
  • SKU 0986479D86
  • Barcode 4047026152920
  • FORD : DG9C2A315CD DG9Z2C026A DG9Z2C026B KJ5Z2C026A 2008440 2019282 5202205
  • LINCOLN : KJ5Z2C026A
  • APEC : DSK3122
  • BLUE PRINT : ADF124375
  • BLUE PRINT : ADF124377
  • BORG & BECK : BBD5422
  • BREMBO : 08.N258.21
  • BREMBO : 08.N258.2X
  • DELPHI : BG4782C
  • DELPHI : BG5311C
  • FEBI BILSTEIN : 107729
  • FEBI BILSTEIN : 107730
  • FTE : 9072853
  • FTE : 9082627
  • HELLA : 8DD 355 126-581
  • MEYLE : 715 523 0027/PD
  • MINTEX : MDC2809C
  • NAPA : NBD5909
  • National : NBD1899
  • SKF : VKBD 91350 S2
  • TEXTAR : 92292503
  • TRW : DF6976
  • VALEO : 673042
  • BOSCH : BD2618
  • BOSCH : E1 90R-02C0100/1808
