BOSCH

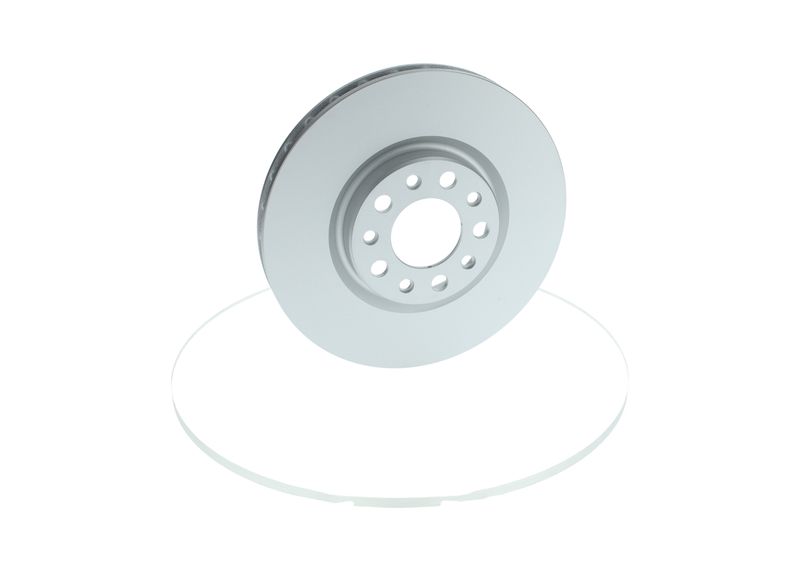

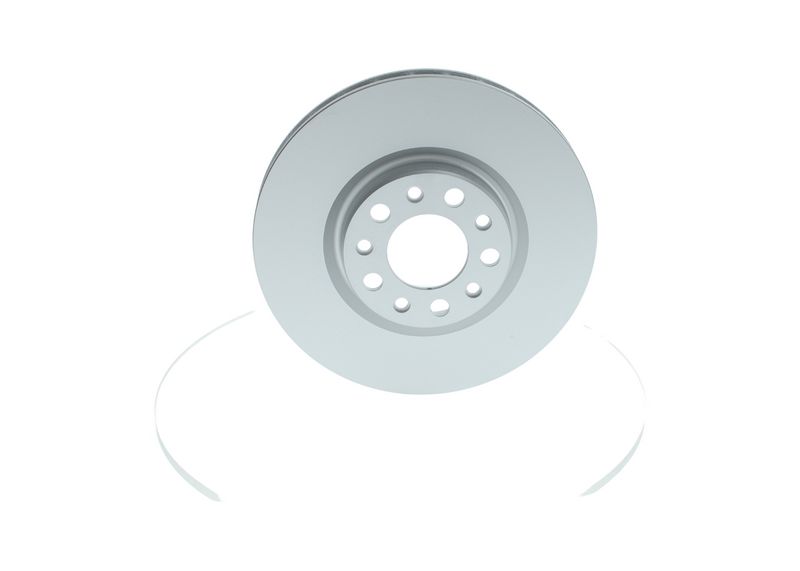

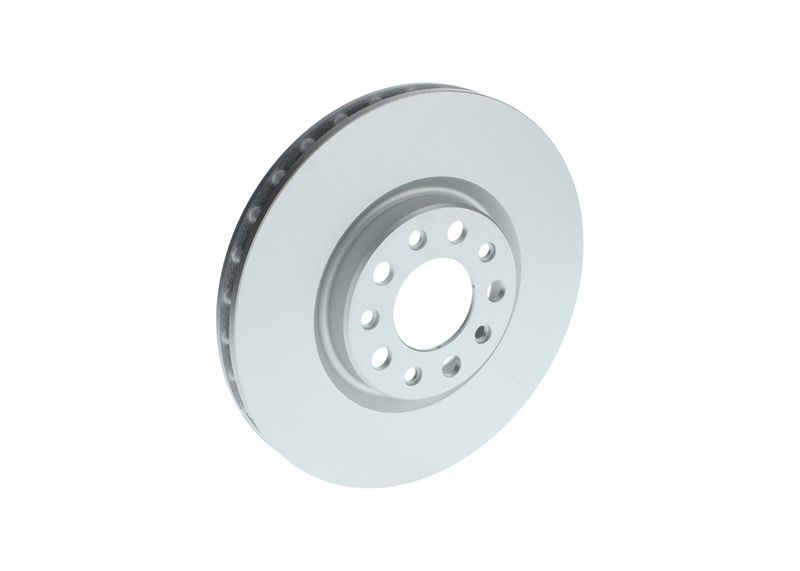

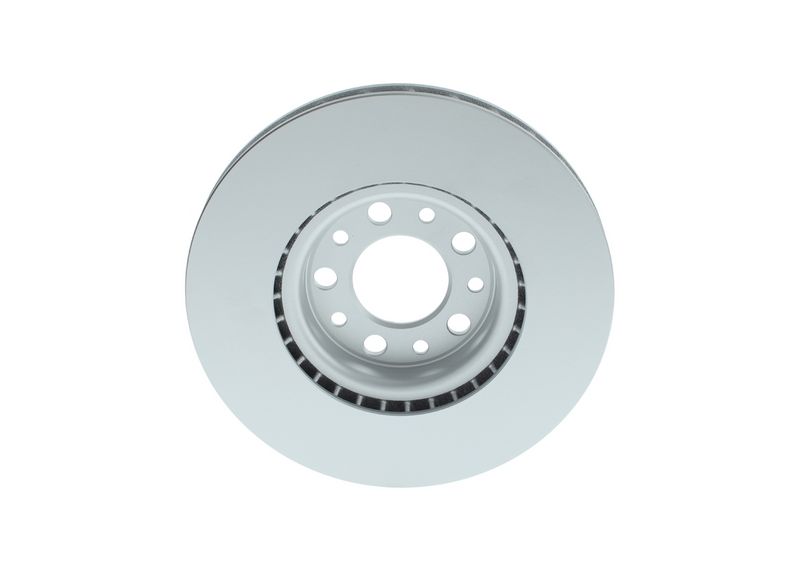

Bosch 0986479D98 Brake Disc

SKU: 0986479D98
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£99.32 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

ALFA ROMEO
GIULIA (952_)
Description Cylinder Capacity Horse Power Year
2.2 D (952AEM250, 952AEA250) 2143 CCM 150 HP From 10/2015
2.2 D (952AFA25, 952AFM25, 952ALA25) 2143 CCM 180 HP From 10/2015
2.2 D (952AGA250, 952AGM250, 952ASM2, 952ASA2) 2143 CCM 136 HP From 10/2015
2.0 (952ACA25) 1995 CCM 280 HP From 08/2016
2.0 (952ABA25B) 1995 CCM 200 HP 08/2016 - 10/2022
2.0 Q4 (952ACA45, 952ACA25) 1995 CCM 280 HP From 08/2016
2.2 D Q4 (952AFA45M) 2143 CCM 180 HP From 04/2017
2.2 D (952AEM250, 952AEA250) 2143 CCM 160 HP From 08/2018
2.2 D (952ALA25, 952AFM25, 952APA2) 2143 CCM 190 HP 08/2018 - 10/2022
2.2 D Q4 (952AFA45M, 952ANA4) 2143 CCM 190 HP 08/2018 - 10/2022

The Bosch 0986479D98 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 305 mm outer diameter, 28 mm brake disc thickness, 25.5 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 305
Brake Disc Thickness [mm] : 28
Minimum thickness [mm] : 25.5
Height [mm] : 44.7
Bolt Hole Circle Ø [mm] : 110
Brake Disc Type : Vented
Centering Diameter [mm] : 70
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 16.6
  • Vendor BOSCH
  • SKU 0986479D98
  • Barcode 4047026159684
  • ALFA ROMEO : 50532930
  • FIAT : 50532930
  • APEC : DSK3338
  • BLUE PRINT : ADBP430054
  • BORG & BECK : BBD5534
  • BREMBO : 09.C495.11
  • BREMBO : 09.C495.1S
  • BREMBO : 09.C495.1X
  • DELPHI : BG5355C
  • FEBI BILSTEIN : 172916
  • HELLA : 8DD 355 133-701
  • MINTEX : MDC2997C
  • NAPA : NBD5965
  • National : NBD2155
  • TEXTAR : 92326305
  • TRW : DF6590S
  • BOSCH : BD2630
