BOSCH

Bosch 0986479E07 Brake Disc

SKU: 0986479E07
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£83.14 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
5 (F10)
Description Cylinder Capacity Horse Power Year
525 d xDrive 1995 CCM 211 HP 09/2011 - 10/2016
525 d 1995 CCM 211 HP 09/2011 - 10/2016
520 i 1997 CCM 163 HP 09/2011 - 10/2016
520 i 1997 CCM 184 HP 09/2011 - 10/2016
528 i 1997 CCM 245 HP 09/2011 - 10/2016
528 i xDrive 1997 CCM 245 HP 09/2011 - 10/2016
530 i 2996 CCM 272 HP 05/2011 - 06/2013
525 d 1995 CCM 218 HP 09/2011 - 10/2016
525 d xDrive 1995 CCM 218 HP 09/2011 - 10/2016
5 Touring (F11)
Description Cylinder Capacity Horse Power Year
520 i 1997 CCM 184 HP 10/2010 - 02/2017
528 i 1997 CCM 245 HP 09/2011 - 02/2017
528 i xDrive 1997 CCM 245 HP 09/2011 - 02/2017
530 i 2996 CCM 272 HP 07/2011 - 06/2013
525 d 1995 CCM 218 HP 09/2011 - 02/2017
525 d xDrive 1995 CCM 218 HP 09/2011 - 02/2017
523 i 2996 CCM 204 HP 11/2009 - 08/2011
528 i 2996 CCM 258 HP 11/2009 - 08/2011

The Bosch 0986479E07 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 330 mm outer diameter, 24 mm brake disc thickness, 22.4 mm minimum thickness, and two-piece brake disc and Vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

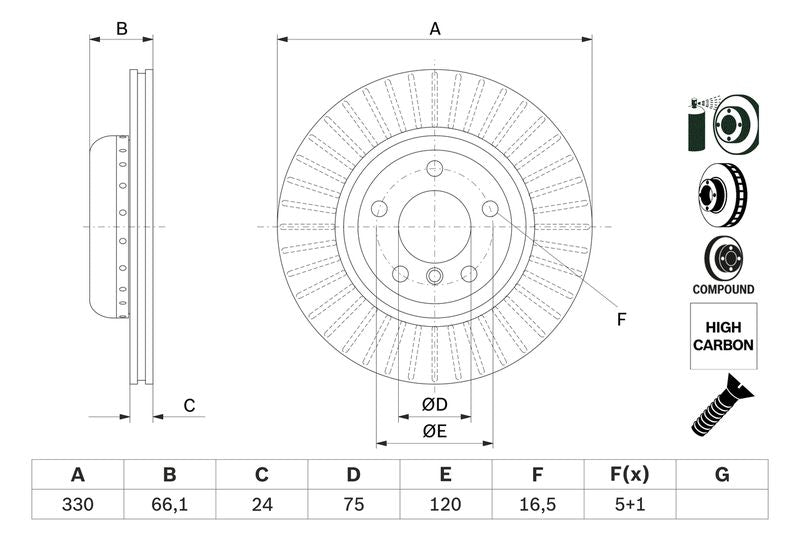

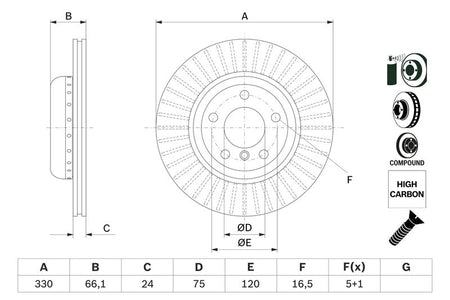

Function : Brake Disc
Outer Diameter [mm] : 330
Brake Disc Thickness [mm] : 24
Minimum thickness [mm] : 22.4
Height [mm] : 66.1
Bolt Hole Circle Ø [mm] : 120
Brake Disc Type : two-piece brake disc
Brake Disc Type : Vented
Centering Diameter [mm] : 75
Number of Holes : 5
Surface : Coated
Machining : High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 16.5
  • Vendor BOSCH
  • SKU 0986479E07
  • Barcode 4047026193619
  • BMW : 34 11 6 794 429 34 11 6 896 652
  • APEC : DSK3063
  • APEC : DSK3063B
  • APEC : SDK6781
  • BLUE PRINT : ADB114365
  • BORG & BECK : BBD6039S
  • BORG & BECK : BBD7025S
  • BREMBO : 09.C410.13
  • DELPHI : BG9129BC
  • DELPHI : BG9129C
  • Fahren : FBD6781
  • FEBI BILSTEIN : 104803
  • FTE : 9081207
  • HELLA : 8DD 355 120-661
  • MEYLE : 383 521 1004/PD
  • NAPA : NBD5601
  • SKF : VKBD 80093 V1
  • TEXTAR : 92265825
  • TRW : DF6616S
  • User manual
  • BOSCH : BD2671
  • BOSCH : E1 90R 02C0481/0017
