BOSCH

Bosch 0986479E23 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479E23

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£120.37 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

BMW
Z4 Roadster (E89)
Description Cylinder Capacity Horse Power Year
sDrive 28 i 1997 CCM 245 HP 09/2011 - 08/2016
sDrive 30 i 2996 CCM 258 HP 02/2009 - 08/2011
sDrive 30 i 2996 CCM 265 HP 05/2009 - 08/2011

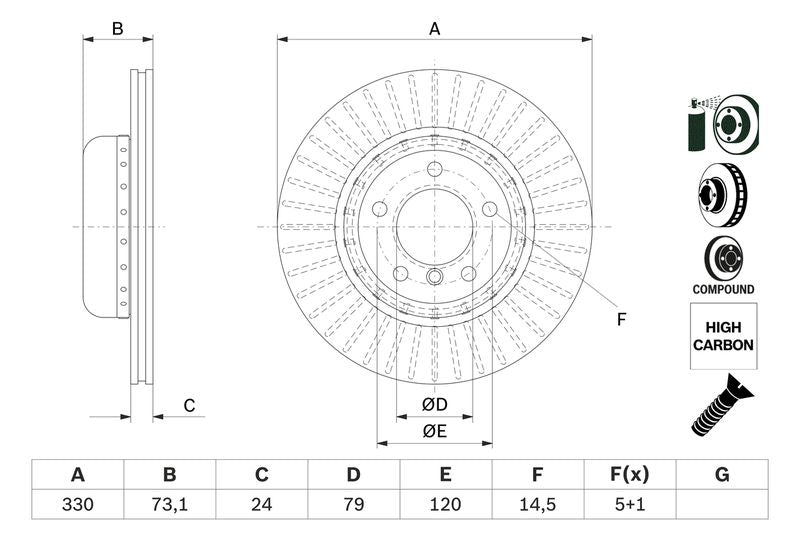

The Bosch 0986479E23 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 330 mm outer diameter, 24 mm brake disc thickness, 22.4 mm minimum thickness, and two-piece brake disc and Vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 330
Brake Disc Thickness [mm] : 24
Minimum thickness [mm] : 22.4
Height [mm] : 73.1
Bolt Hole Circle Ø [mm] : 120
Brake Disc Type : two-piece brake disc
Brake Disc Type : Vented
Centering Diameter [mm] : 79
Number of Holes : 5
Surface : Coated
Machining : High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14.5
  • Vendor BOSCH
  • SKU 0986479E23
  • Barcode 4047026193770
  • BMW : 34 11 6 782 601 34 11 6 794 427
  • APEC : DSK3163
  • BLUE PRINT : ADB114392
  • BORG & BECK : BBD6170S
  • BREMBO : 09.C402.13
  • DELPHI : BG9162BC
  • DELPHI : BG9162C
  • FEBI BILSTEIN : 106492
  • HELLA : 8DD 355 120-761
  • MEYLE : 383 521 1001/PD
  • National : NBD2276
  • TEXTAR : 92269725
  • User manual
  • BOSCH : BD2687
  • BOSCH : E1 90R 02C0481/0017
