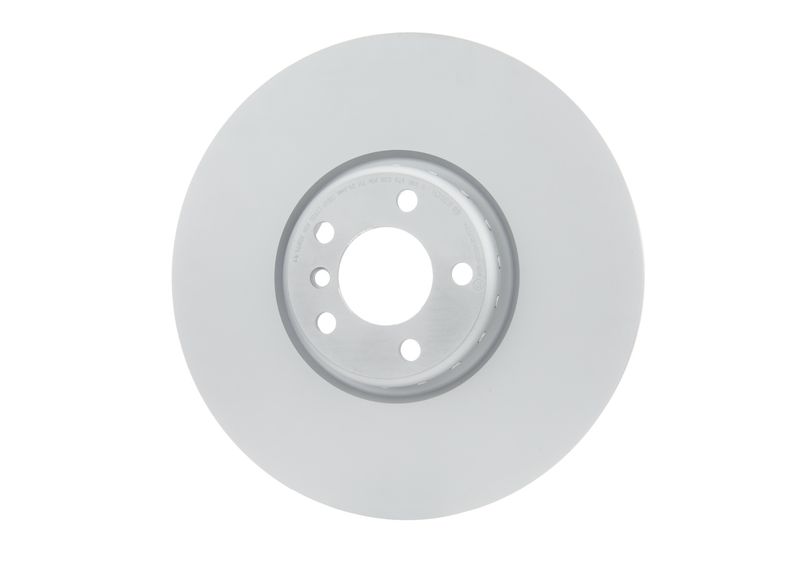

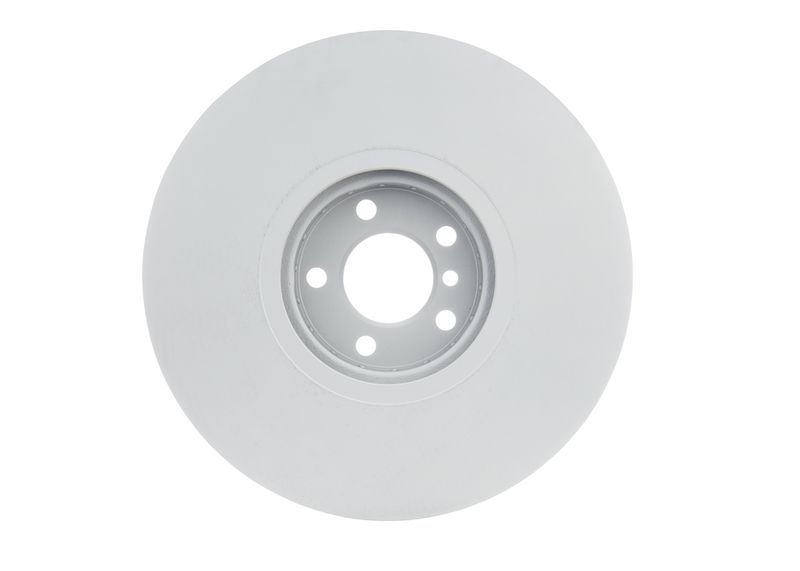

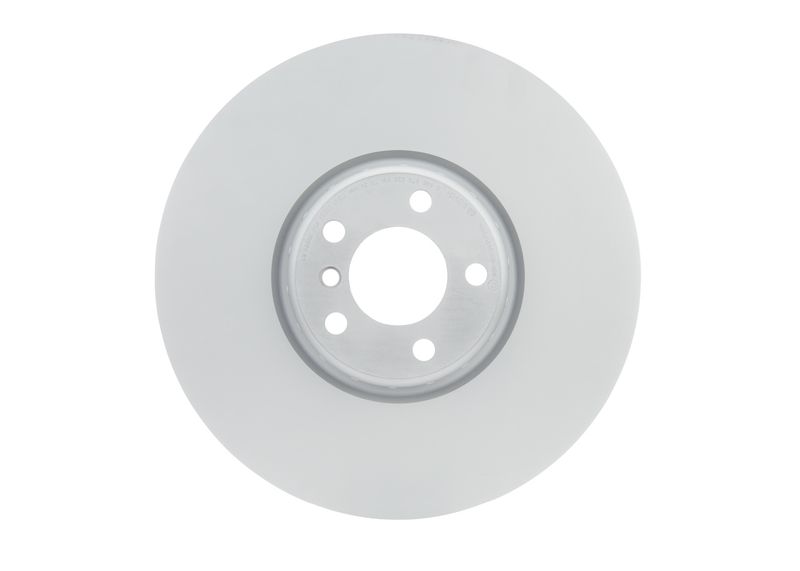

Bosch 0986479E26 Brake Disc
Your selected vehicle
Regular price
£127.13
inc. VAT
Pay in 3 interest-free payments with Klarna
Standard delivery
Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

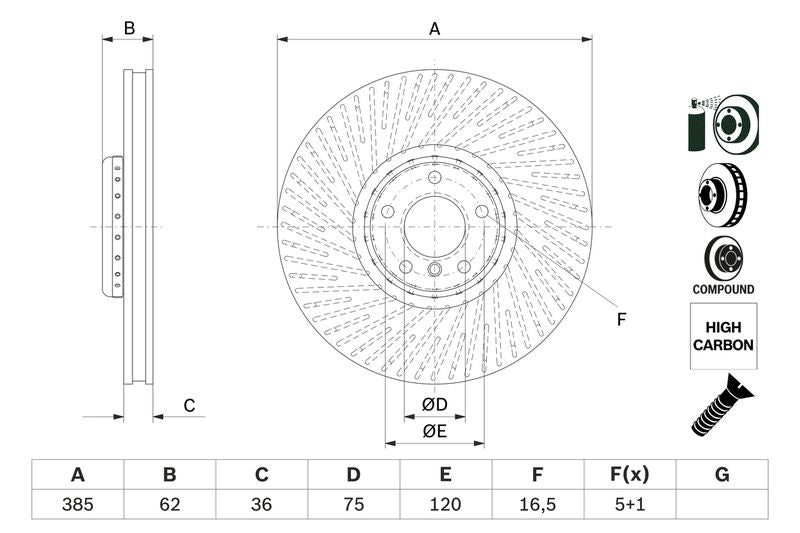

The Bosch 0986479E26 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 385 mm outer diameter, 36 mm brake disc thickness, 34.4 mm minimum thickness, and two-piece brake disc and Vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.
Function :
Brake Disc
Outer Diameter [mm] :
385
Brake Disc Thickness [mm] :
36
Minimum thickness [mm] :
34.4
Height [mm] :
62
Bolt Hole Circle Ø [mm] :
120
Brake Disc Type :
two-piece brake disc
Brake Disc Type :
Vented
Centering Diameter [mm] :
75
Surface :
Coated
Machining :
High-carbon
Supplementary Article/Supplementary Info 2 :
with bolts/screws
fulfils ECE standard :
ECE-R90
Bore Diameter up to [mm] :
16.5
Paired article number :
0 986 479 E25
- Vendor BOSCH
- SKU 0986479E26
- BMW : 34 11 6 782 067
- APEC : DSK3231
- APEC : DSK3231B
- BLUE PRINT : ADB1143112
- BREMBO : 09.C412.13
- DELPHI : BG9361BC
- FEBI BILSTEIN : 107502
- HELLA : 8DD 355 120-721
- National : NBD2199
- TEXTAR : 92266425
- TRW : DF6618S
- User manual
- BOSCH : BD2690
- BOSCH : E1 90R 02C0481/0016
