BOSCH

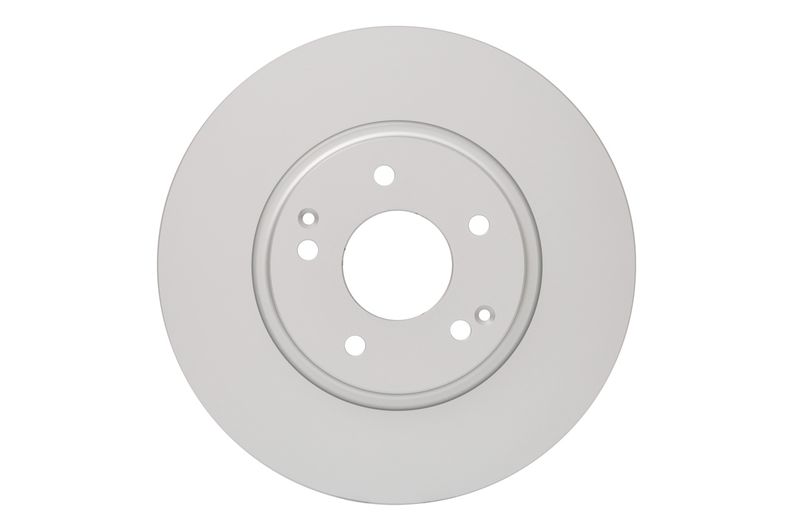

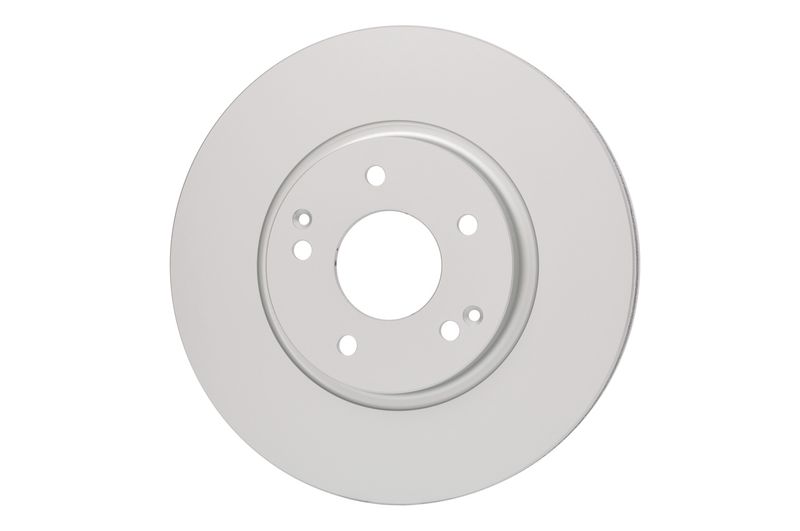

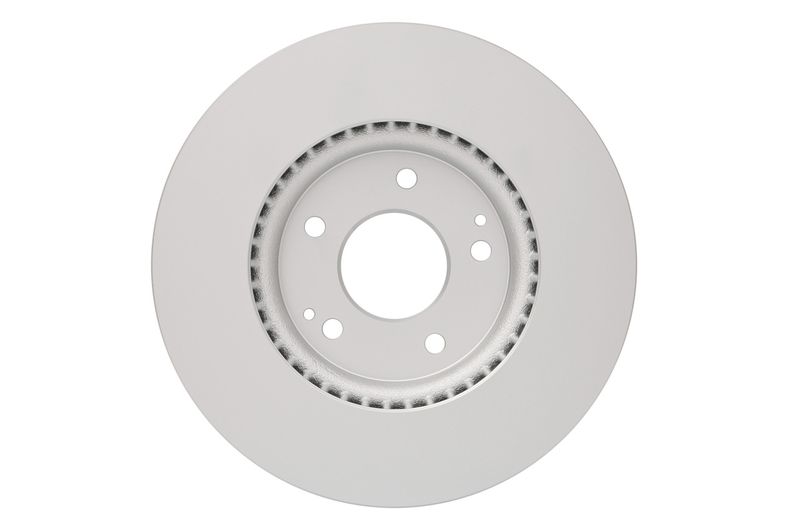

Bosch 0986479E36 Brake Disc

SKU: 0986479E36
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£83.45 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

SSANGYONG
KORANDO (CK)
Description Cylinder Capacity Horse Power Year
2.0 e-XDi 1998 CCM 175 HP From 11/2010
2.0 e-XDi 4WD 1998 CCM 175 HP From 11/2010
2.0 e-XDi 1998 CCM 150 HP From 02/2012
2.0 e-XDi 4WD 1998 CCM 150 HP From 02/2012
2.0 1998 CCM 150 HP From 02/2012
2.0 4WD 1998 CCM 150 HP From 02/2012
2.2 Xdi 2157 CCM 178 HP From 07/2015
2.2 Xdi 4WD 2157 CCM 178 HP From 07/2015
2.0 e-XGi 1998 CCM 147 HP From 02/2012
KORANDO (C300)
Description Cylinder Capacity Horse Power Year
1.5 e-XGDi 1497 CCM 163 HP From 02/2019
1.5 e-XGDi 4WD 1497 CCM 163 HP From 02/2019
1.6 e-XDi 1597 CCM 136 HP From 02/2019
1.6 e-XDi 4WD 1597 CCM 136 HP From 02/2019
E-Motion 190 HP From 07/2022
E-Motion 207 HP From 08/2023
KG MOBILITY
ACTYON (J120)
Description Cylinder Capacity Horse Power Year
GDI 4x4 1497 CCM 163 HP From 08/2024
GDI 1497 CCM 163 HP From 08/2024
KORANDO (C300)
Description Cylinder Capacity Horse Power Year
1.5 T-GDI 1497 CCM 163 HP From 11/2023
TORRES (U100, J100, J140)
Description Cylinder Capacity Horse Power Year
1.5 1497 CCM 163 HP From 11/2023
1.5 4WD 1497 CCM 163 HP From 11/2023
EVX 207 HP From 01/2024
1.5 Hybrid 1498 CCM 204 HP From 06/2025
TORRES (U100, J100)
Description Cylinder Capacity Horse Power Year
EVX 207 HP From 01/2024

The Bosch 0986479E36 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 298 mm outer diameter, 26 mm brake disc thickness, 24 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

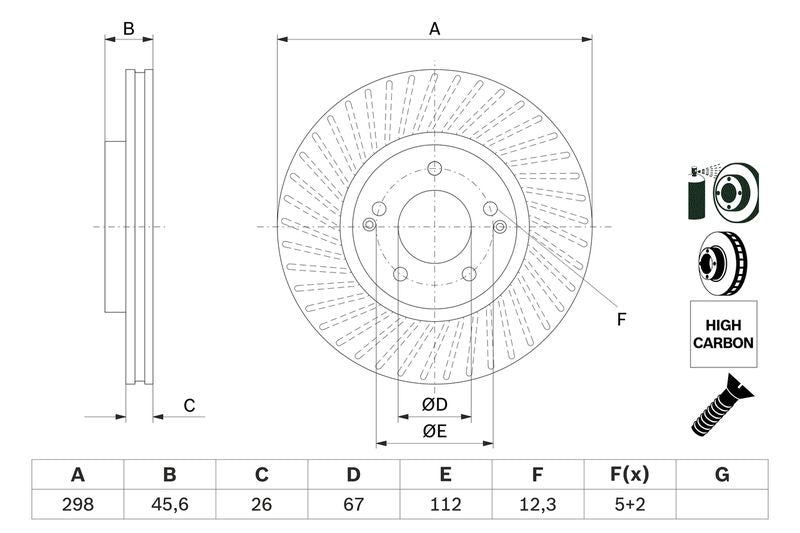

Function : Brake Disc
Outer Diameter [mm] : 298
Brake Disc Thickness [mm] : 26
Minimum thickness [mm] : 24
Height [mm] : 45.6
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Vented
Centering Diameter [mm] : 67
Number of Holes : 5
Surface : Coated
Machining : High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.3
  • Vendor BOSCH
  • SKU 0986479E36
  • Barcode 4047026152944
  • SSANGYONG : 414 413 40 00 414 413 40 01 414 413 40 02 414 413 40 03
  • APEC : DSK2994
  • BLUE PRINT : ADG043214
  • BORG & BECK : BBD5447
  • BREMBO : 09.D724.11
  • DELPHI : BG4809C
  • FEBI BILSTEIN : 170696
  • HELLA : 8DD 355 133-331
  • MINTEX : MDC2976C
  • NAPA : NBD5647
  • National : NBD2101
  • SKF : VKBD 81063 V1
  • TEXTAR : 92322903
  • TRW : DF6804
  • BOSCH : BD2637
  • BOSCH : E1 90R-02C0074/0575
