Bosch 0986479E39 Brake Disc

SKU: 0986479E39
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£96.73 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

AUDI
A6 Allroad C7 (4GH, 4GJ)
Description Cylinder Capacity Horse Power Year
3.0 TFSI quattro 2995 CCM 310 HP 01/2012 - 12/2014
3.0 TDI quattro 2967 CCM 204 HP 01/2012 - 12/2014
3.0 TDI quattro 2967 CCM 245 HP 01/2012 - 06/2016
3.0 TDI quattro 2967 CCM 313 HP 01/2012 - 12/2014
3.0 TDI quattro 2967 CCM 211 HP 09/2014 - 09/2018
3.0 TDI quattro 2967 CCM 218 HP 09/2014 - 09/2018
3.0 TDI quattro 2967 CCM 272 HP 09/2014 - 09/2018
3.0 TDI quattro 2967 CCM 320 HP 01/2012 - 09/2018
3.0 TFSI quattro 2995 CCM 333 HP 09/2014 - 09/2018
3.0 TDI quattro 2967 CCM 190 HP 11/2015 - 09/2018

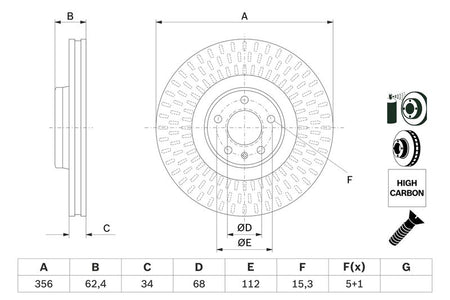

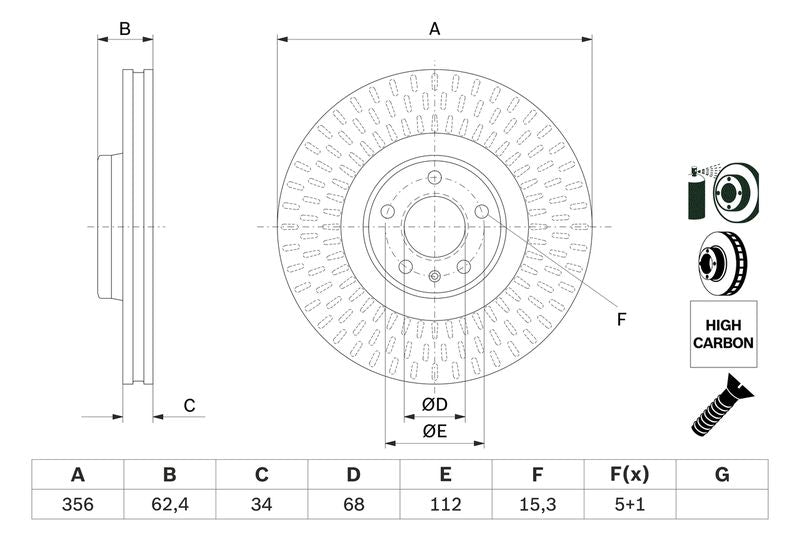

The Bosch 0986479E39 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 356 mm outer diameter, 34 mm brake disc thickness, 31.5 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 356
Brake Disc Thickness [mm] : 34
Minimum thickness [mm] : 31.5
Height [mm] : 62.4
Bolt Hole Circle Ø [mm] : 112
Brake Disc Type : Vented
Centering Diameter [mm] : 68
Number of Holes : 5
Surface : Coated
Machining : High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 15.3
  • Vendor BOSCH
  • SKU 0986479E39
  • Barcode 4047026159622
  • AUDI : 4G0 615 301 AC 4G0 615 301 C 4G0 615 301 P
  • VW : 4G0 615 301 AC 4G0 615 301 C 4G0 615 301 P
  • APEC : DSK3205
  • BLUE PRINT : ADV1843119
  • BORG & BECK : BBD6123S
  • BREMBO : 09.C426.11
  • DELPHI : BG9172C
  • FEBI BILSTEIN : 108202
  • FTE : 9081165
  • HELLA : 8DD 355 126-691
  • MINTEX : MDC2819C
  • NAPA : NBD5972
  • National : NBD2046
  • TEXTAR : 92293505
  • VALEO : 673653
  • BOSCH : BD2640
  • BOSCH : E1 90R-02C0339/1781
