Bosch 0986479E45 Brake Disc - 1
Bosch 0986479E45 Brake Disc - 1
BOSCH

Bosch 0986479E45 Brake Disc

SKU: 0986479E45
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£64.18 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI
TUCSON (TL, TLE)
Description Cylinder Capacity Horse Power Year
2.0 CRDi All-wheel Drive 1995 CCM 136 HP 06/2015 - 09/2020
1.6 T-GDi All-wheel Drive 1591 CCM 177 HP 06/2015 - 09/2020
1.6 T-GDi 1591 CCM 177 HP 06/2015 - 05/2023
1.6 GDi 1591 CCM 132 HP 06/2015 - 09/2020
1.7 CRDi 1685 CCM 116 HP 06/2015 - 09/2020
2.0 CRDi All-wheel Drive 1995 CCM 185 HP 06/2015 - 09/2020
2.0 CRDi 1995 CCM 136 HP 06/2015 - 09/2020
2.0 1999 CCM 155 HP 06/2015 - 09/2020
1.7 CRDi 1685 CCM 141 HP 06/2015 - 09/2020
1.6 GDi 1591 CCM 130 HP 06/2015 - 09/2020
1.6 T-GDi 1591 CCM 175 HP 01/2016 - 09/2020
1.6 CRDi 1598 CCM 116 HP 08/2018 - 09/2020
1.6 CRDi 1598 CCM 136 HP 08/2018 - 12/2020
1.6 CRDi All-wheel Drive 1598 CCM 136 HP 08/2018 - 12/2020
KIA
SPORTAGE IV (QL, QLE)
Description Cylinder Capacity Horse Power Year
1.6 T-GDI AWD 1591 CCM 177 HP 09/2015 - 09/2022
1.6 T-GDI 1591 CCM 177 HP 09/2015 - 09/2022
1.7 CRDi 1685 CCM 116 HP 09/2015 - 09/2022
2.0 CRDi AWD 1995 CCM 136 HP 09/2015 - 09/2022
2.0 CRDi AWD 1995 CCM 185 HP 09/2015 - 09/2022
1.6 GDI 1591 CCM 132 HP 09/2015 - 09/2022
2.0 CRDi 1995 CCM 136 HP 09/2015 - 09/2022
1.7 CRDi 1685 CCM 141 HP 11/2016 - 09/2022
2.0 1999 CCM 150 HP 12/2015 - 09/2022
1.6 CRDi 1598 CCM 116 HP 07/2018 - 09/2022
1.6 CRDi 1598 CCM 136 HP 07/2018 - 09/2022

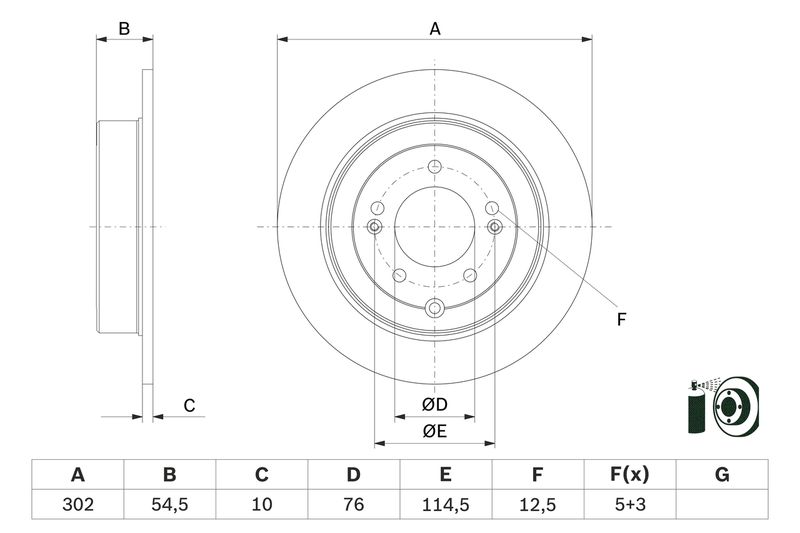

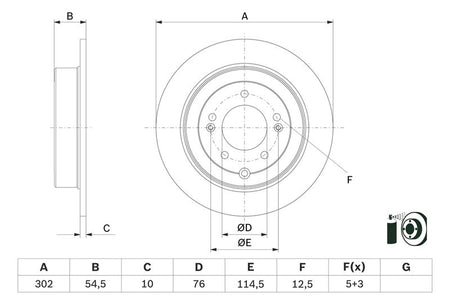

The Bosch 0986479E45 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 302 mm outer diameter, 10 mm brake disc thickness, 8 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 302
Brake Disc Thickness [mm] : 10
Minimum thickness [mm] : 8
Height [mm] : 54.7
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : solid
Centering Diameter [mm] : 76
Number of Holes : 5
Surface : Coated
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.5
  • Vendor BOSCH
  • SKU 0986479E45
  • Barcode 4047026159721
  • HYUNDAI : 58411D7000
  • APEC : DSK3269
  • APEC : SDK6935
  • BLUE PRINT : ADG043223
  • BORG & BECK : BBD5565
  • BREMBO : 08.D429.11
  • BREMBO : 08.D429.1X
  • Fahren : FBD6935
  • FEBI BILSTEIN : 108629
  • FTE : 9082635
  • HELLA : 8DD 355 126-911
  • MINTEX : MDC2836C
  • NAPA : NBD5689
  • TEXTAR : 92294903
  • VALEO : 672717
  • BOSCH : BD2646
