BOSCH

Bosch 0986479E46 Brake Disc

SKU: 0986479E46
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£61.29 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

HYUNDAI
NEXO (FE)
Description Cylinder Capacity Horse Power Year
FCEV 163 HP From 03/2018
TUCSON (TL, TLE)
Description Cylinder Capacity Horse Power Year
2.0 CRDi All-wheel Drive 1995 CCM 136 HP 06/2015 - 09/2020
1.6 T-GDi All-wheel Drive 1591 CCM 177 HP 06/2015 - 09/2020
1.6 T-GDi 1591 CCM 177 HP 06/2015 - 05/2023
1.6 GDi 1591 CCM 132 HP 06/2015 - 09/2020
1.7 CRDi 1685 CCM 116 HP 06/2015 - 09/2020
2.0 CRDi All-wheel Drive 1995 CCM 185 HP 06/2015 - 09/2020
2.0 CRDi 1995 CCM 136 HP 06/2015 - 09/2020
2.0 1999 CCM 155 HP 06/2015 - 09/2020
1.7 CRDi 1685 CCM 141 HP 06/2015 - 09/2020
1.6 GDi 1591 CCM 130 HP 06/2015 - 09/2020
1.6 T-GDi 1591 CCM 175 HP 01/2016 - 09/2020
KIA
SPORTAGE IV (QL, QLE)
Description Cylinder Capacity Horse Power Year
1.6 T-GDI AWD 1591 CCM 177 HP 09/2015 - 09/2022
1.6 T-GDI 1591 CCM 177 HP 09/2015 - 09/2022
1.7 CRDi 1685 CCM 116 HP 09/2015 - 09/2022
2.0 CRDi AWD 1995 CCM 136 HP 09/2015 - 09/2022
2.0 CRDi AWD 1995 CCM 185 HP 09/2015 - 09/2022
1.6 GDI 1591 CCM 132 HP 09/2015 - 09/2022
2.0 CRDi 1995 CCM 136 HP 09/2015 - 09/2022
2.4 GDI AWD 2359 CCM 184 HP 09/2015 - 09/2022
2.0 1999 CCM 155 HP 12/2015 - 09/2022
1.7 CRDi 1685 CCM 141 HP 11/2016 - 09/2022
2.0 AWD 1999 CCM 155 HP 12/2015 - 09/2022
2.0 1999 CCM 150 HP 12/2015 - 09/2022
1.6 CRDi 1598 CCM 116 HP 07/2018 - 09/2022
1.6 CRDi 1598 CCM 136 HP 07/2018 - 09/2022

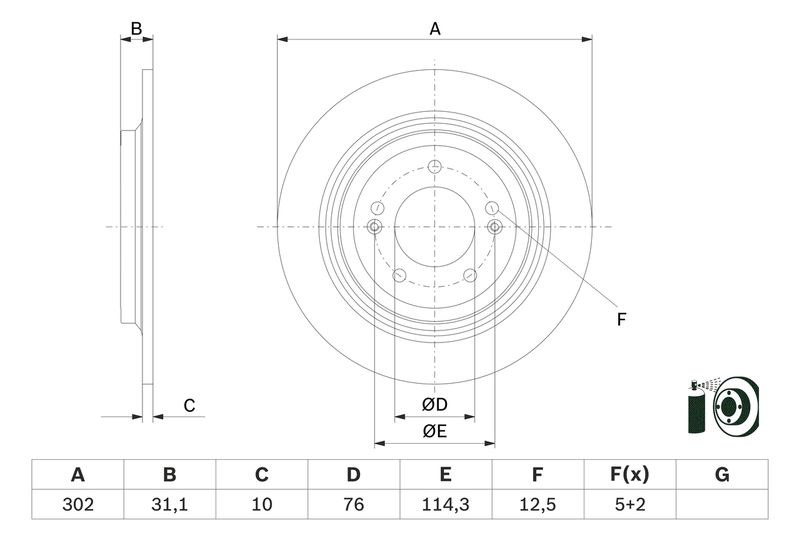

The Bosch 0986479E46 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 302 mm outer diameter, 10 mm brake disc thickness, 8 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 302
Brake Disc Thickness [mm] : 10
Minimum thickness [mm] : 8
Height [mm] : 31.2
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : solid
Centering Diameter [mm] : 76
Number of Holes : 5
Surface : Coated
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.4
  • Vendor BOSCH
  • SKU 0986479E46
  • Barcode 4047026159738
  • HYUNDAI : 58411D3700
  • KIA : 58411 D3700 58411 D7700
  • APEC : DSK3268
  • APEC : SDK7010
  • BLUE PRINT : ADG043222
  • BLUE PRINT : ADG043225
  • BORG & BECK : BBD5564
  • BREMBO : 08.D430.11
  • BREMBO : 08.D430.1X
  • DELPHI : BG4932C
  • Fahren : FBD7010
  • FEBI BILSTEIN : 108637
  • FEBI BILSTEIN : 108674
  • FTE : 9082634
  • HELLA : 8DD 355 126-681
  • MINTEX : MDC2818C
  • MINTEX : MDC2835C
  • NAPA : NBD5850
  • National : NBD1997
  • SKF : VKBD 91323 S2
  • TEXTAR : 92293403
  • TRW : DF3955
  • VALEO : 672715
  • BOSCH : BD2647
