BOSCH

Bosch 0986479E48 Brake Disc

SKU: 0986479E48

Your selected vehicle

Only 2 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£75.53 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MERCEDES-BENZ

VARIO Bus (B670)

Description	Cylinder Capacity	Horse Power	Year
O 813 (670.373, 670.374)	4249 CCM	129 HP	01/2006 - 12/2013
O 816 D (670.373, 670.374)	4249 CCM	156 HP	01/2006 - 12/2013
O 818 D (670.373, 670.374)	4249 CCM	177 HP	From 09/2006

VARIO Platform/Chassis (B670, B668, B667)

Description	Cylinder Capacity	Horse Power	Year
613 D, 614 D (668.321, 668.322, 668.323)	4249 CCM	129 HP	From 09/1996
613 D, 614 D (668.331, 668.332)	4249 CCM	129 HP	09/1996 - 12/2013
615 D, 616 D (668.321, 668.322, 668.323)	4249 CCM	152 HP	From 09/1998
615 D, 616 D (668.331, 668.332)	4249 CCM	152 HP	From 09/1998
813 D, 814 D (670.321, 670.322, 670.323, 670.324)	4249 CCM	129 HP	09/1996 - 12/2013
813 D, 814 D (670.331, 670.332)	4249 CCM	129 HP	09/1996 - 12/2013
815 D, 816 D (670.321, 670.322, 670.323, 670.324)	4249 CCM	152 HP	09/1996 - 12/2010
815 D, 816 D (670.331, 670.332)	4249 CCM	152 HP	From 09/1996

VARIO Cab with engine

Description	Cylinder Capacity	Horse Power	Year
613 D, 614 D (669.599, 669.899)	4249 CCM	129 HP	01/2006 - 12/2013
615 D, 616 D (669.599, 669.899)	4249 CCM	156 HP	01/2006 - 12/2013
618 D (669.599, 669.899)	4249 CCM	177 HP	09/2006 - 12/2013

VARIO Van (B667, B670, B668)

Description	Cylinder Capacity	Horse Power	Year
613 D, 614 D (668.351, 668.352, 668.353)	4249 CCM	129 HP	09/1996 - 12/2013
615 D, 616 D (668.351, 668.352, 668.353)	4249 CCM	156 HP	09/1998 - 12/2013
813 D, 814 D (670.351, 670.352, 670.353)	4249 CCM	129 HP	09/1996 - 12/2013
815 D, 816 D (670.351, 670.352, 670.353)	4249 CCM	152 HP	09/1996 - 12/2010
815 DA, 816 DA 4x4 (669.599, 670.451, 670.452, 670.453)	4249 CCM	152 HP	09/1996 - 12/2010
818 D (670.351, 670.352, 670.353)	4249 CCM	177 HP	09/2006 - 12/2013
618 D	4249 CCM	177 HP	09/2006 - 12/2013

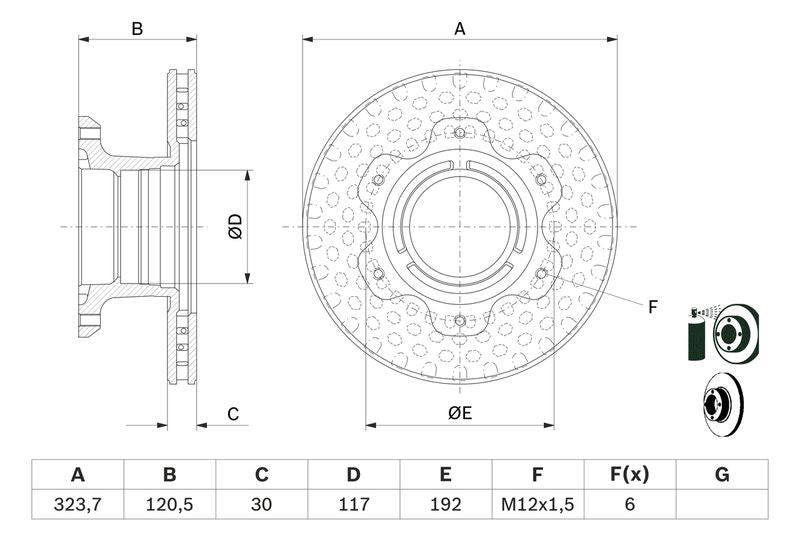

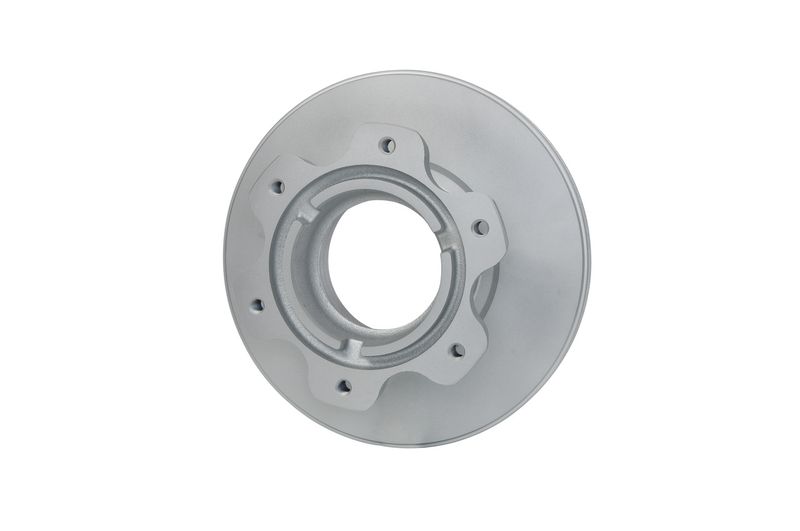

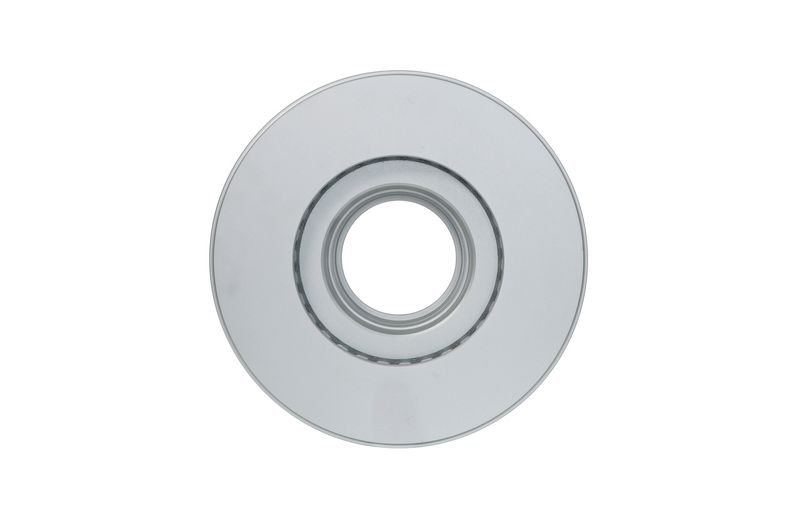

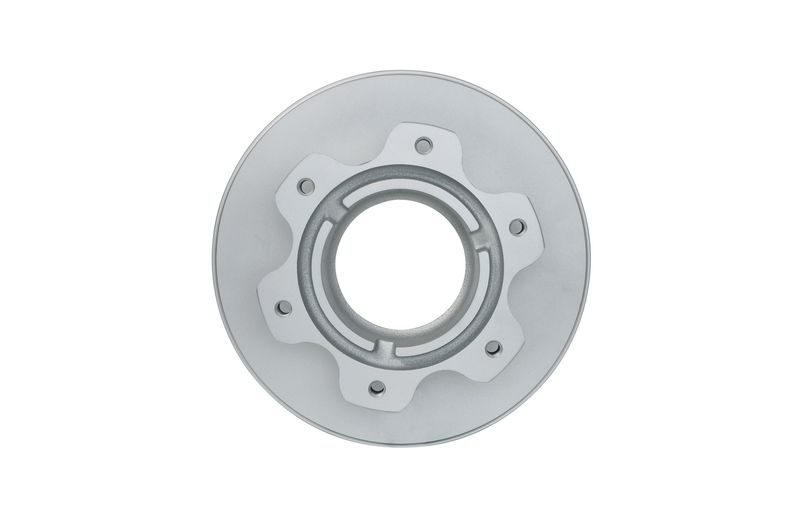

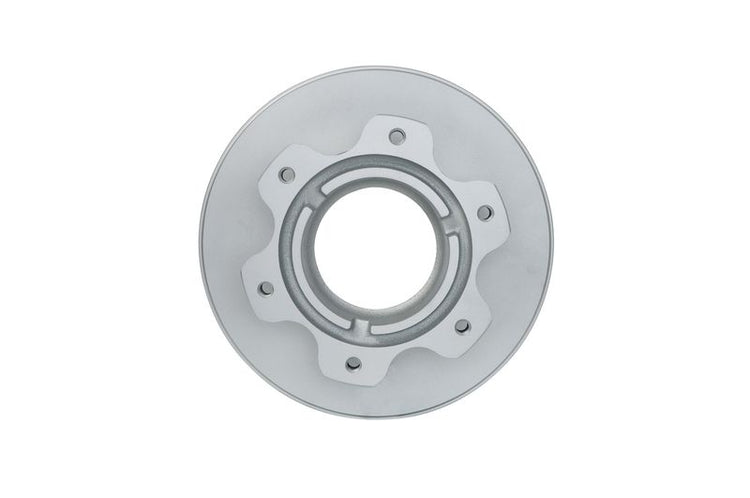

The Bosch 0986479E48 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 323.7 mm outer diameter, 30 mm brake disc thickness, 26 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 323.7

Brake Disc Thickness [mm] : 30

Minimum thickness [mm] : 26

Height [mm] : 120.5

Bolt Hole Circle Ø [mm] : 192

Brake Disc Type : Vented

Centering Diameter [mm] : 117

Number of Holes : 6

Surface : Coated

Bore Diameter up to [mm] : 14

Bosch 0986479E48 Brake Disc
