Bosch 0986479E56 Brake Disc - 1
Bosch 0986479E56 Brake Disc - 1
BOSCH

Bosch 0986479E56 Brake Disc

SKU: 0986479E56
Your selected vehicle
In stock
Order by 17:00 for same-day dispatch
£63.57 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

MAZDA
2 Hatchback (DL, DJ)
Description Cylinder Capacity Horse Power Year
1.5 D (DJ5FS) 1499 CCM 105 HP From 08/2014
1.5 SKYACTIV-G (DJLFS) 1496 CCM 115 HP From 08/2014
1.5 1496 CCM 75 HP From 08/2014
1.5 SKYACTIV-G 1496 CCM 90 HP From 08/2014
1.5 (DJ2HA) 1496 CCM 107 HP From 11/2014
1.5 SKYACTIV-G M Hybrid 1496 CCM 90 HP From 08/2019
1.5 SKYACTIV-G M Hybrid 1496 CCM 75 HP From 08/2019
1.5 E-SKYACTIV G 1496 CCM 116 HP From 10/2021
MX-5 IV (ND__)
Description Cylinder Capacity Horse Power Year
1.5 (ND2E, ND5R) 1496 CCM 131 HP From 06/2015
1.5 (ND6E, ND5RC) 1496 CCM 132 HP From 05/2018
MX-5 RF Targa (ND)
Description Cylinder Capacity Horse Power Year
1.5 1496 CCM 131 HP From 08/2017
1.5 (ND6E) 1496 CCM 132 HP From 05/2018

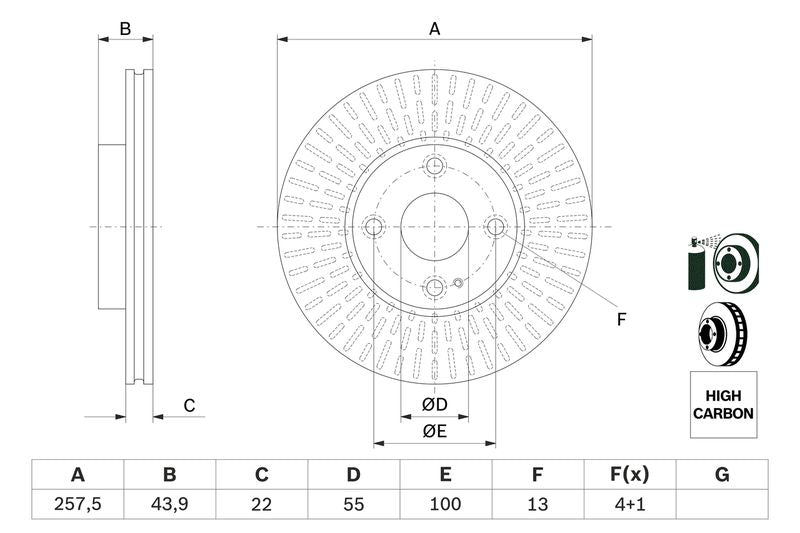

The Bosch 0986479E56 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 257.5 mm outer diameter, 22 mm brake disc thickness, 20 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 257.5
Brake Disc Thickness [mm] : 22
Minimum thickness [mm] : 20
Height [mm] : 43.9
Bolt Hole Circle Ø [mm] : 100
Brake Disc Type : Vented
Centering Diameter [mm] : 55
Number of Holes : 4
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13
  • Vendor BOSCH
  • SKU 0986479E56
  • Barcode 4047026160031
  • MAZDA : DA6A-33-251 DA6A-33-251A DA7R-33-251 D09T-33-251
  • APEC : DSK3307
  • APEC : SDK6938
  • BLUE PRINT : ADM543136
  • BORG & BECK : BBD5476
  • BREMBO : 09.D065.11
  • DELPHI : BG4942C
  • Fahren : FBD6938
  • FEBI BILSTEIN : 170740
  • FTE : 9082629
  • HELLA : 8DD 355 131-821
  • MEYLE : 35-15 521 0045/PD
  • MINTEX : MDC2849C
  • NAPA : NBD5308
  • SKF : VKBD 81134 V2
  • TEXTAR : 92300903
  • TRW : DF6793
  • VALEO : 673401
  • BOSCH : BD2657
  • BOSCH : E1 90R-02C0448/1351
