Bosch 0986479E61 Brake Disc - 1
Bosch 0986479E61 Brake Disc - 1
BOSCH

Bosch 0986479E61 Brake Disc

SKU: 0986479E61
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£89.63 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

JAGUAR
XE (X760)
Description Cylinder Capacity Horse Power Year
2.0 1999 CCM 200 HP From 03/2015
2.0 1999 CCM 241 HP From 03/2015
3.0 S 2995 CCM 340 HP From 03/2015
2.0 D AWD 1999 CCM 180 HP From 10/2015
2.0 D AWD 1999 CCM 241 HP From 02/2017
2.0 1997 CCM 250 HP From 02/2017
2.0 AWD 1997 CCM 250 HP From 02/2017
3.0 S 2995 CCM 381 HP From 02/2017
2.0 AWD 1997 CCM 300 HP From 06/2017
2.0 1997 CCM 300 HP From 06/2017
2.0 1997 CCM 200 HP From 02/2017
XF II (X260)
Description Cylinder Capacity Horse Power Year
3.0 2995 CCM 340 HP From 05/2015
3.0 2995 CCM 380 HP From 05/2015
2.0 1999 CCM 241 HP From 05/2015
3.0 D 2993 CCM 300 HP From 05/2015
2.0 D 1999 CCM 163 HP From 05/2015
2.0 D 1999 CCM 180 HP From 05/2015
3.0 AWD 2995 CCM 340 HP From 07/2015
3.0 AWD 2995 CCM 380 HP From 07/2015
2.0 D AWD 1999 CCM 180 HP From 03/2016
2.0 D 1999 CCM 241 HP From 03/2017
2.0 D AWD 1999 CCM 241 HP From 03/2017
2.0 1997 CCM 200 HP From 03/2017
2.0 1997 CCM 250 HP From 03/2017
2.0 AWD 1997 CCM 250 HP From 03/2017
2.0 AWD 1997 CCM 300 HP From 09/2017
XF SPORTBRAKE (X260)
Description Cylinder Capacity Horse Power Year
2.0 D 1999 CCM 163 HP From 07/2017
2.0 D 1999 CCM 180 HP From 07/2017
2.0 D AWD 1999 CCM 180 HP From 07/2017
2.0 D AWD 1999 CCM 241 HP From 07/2017
3.0 D 2993 CCM 300 HP From 07/2017
2.0 1997 CCM 250 HP From 07/2017
3.0 AWD 2995 CCM 380 HP From 07/2017
3.0 2995 CCM 380 HP From 07/2017
2.0 1997 CCM 200 HP From 07/2017
2.0 AWD 1997 CCM 300 HP From 08/2018
2.0 D200 MHEV 1997 CCM 204 HP From 11/2020
2.0 D200 MHEV AWD 1997 CCM 204 HP From 11/2020

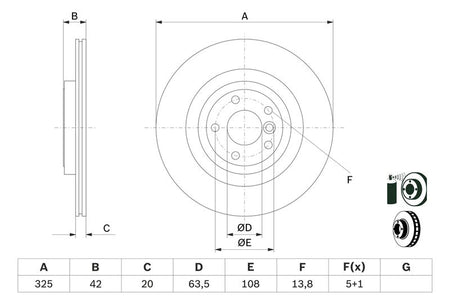

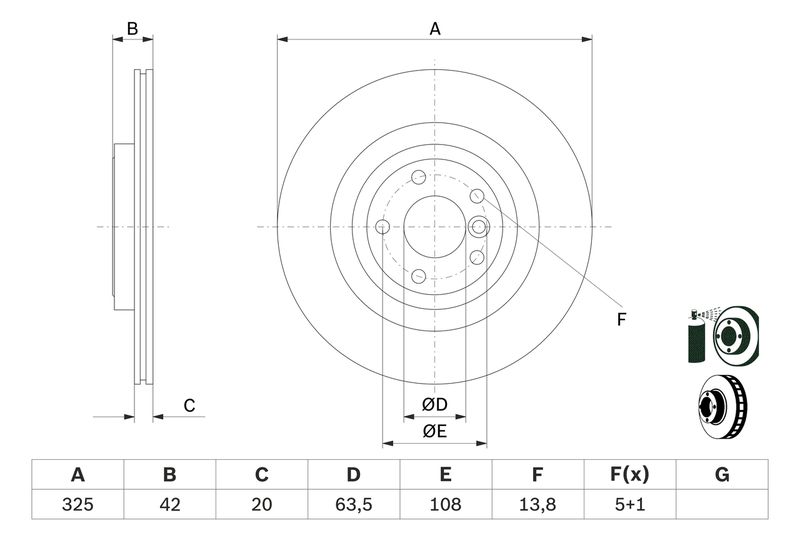

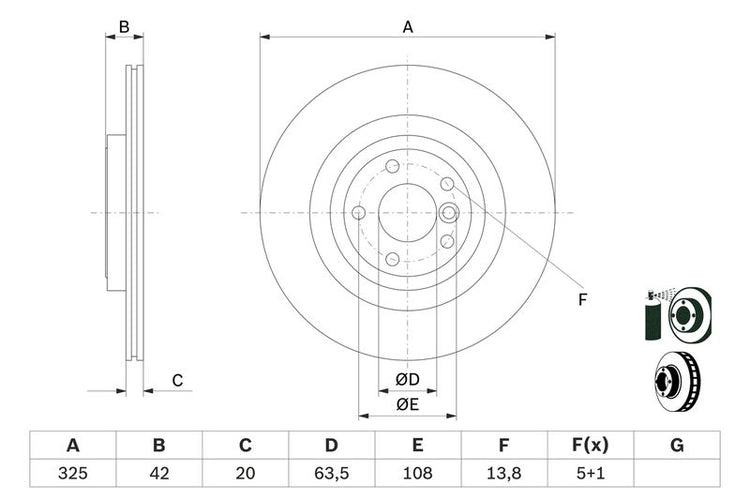

The Bosch 0986479E61 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 325 mm outer diameter, 20 mm brake disc thickness, 18 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 325
Brake Disc Thickness [mm] : 20
Minimum thickness [mm] : 18
Height [mm] : 42
Bolt Hole Circle Ø [mm] : 108
Brake Disc Type : Vented
Centering Diameter [mm] : 63.5
Number of Holes : 5
Surface : Coated
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.8
  • Vendor BOSCH
  • SKU 0986479E61
  • Barcode 4047026159752
  • JAGUAR : T4N1744
  • APEC : DSK3186
  • APEC : DSK3400
  • APEC : SDK6984
  • BLUE PRINT : ADJ134364
  • BLUE PRINT : ADJ134372
  • BORG & BECK : BBD5437
  • BREMBO : 09.C209.21
  • DELPHI : BG5023C
  • Fahren : FBD6984
  • FEBI BILSTEIN : 106300
  • FEBI BILSTEIN : 106493
  • FTE : 9082805
  • HELLA : 8DD 355 133-211
  • MINTEX : MDC2964C
  • NAPA : NBD5674
  • SKF : VKBD 91397 V1
  • TEXTAR : 92318105
  • TRW : DF6969S
  • BOSCH : BD2662
  • BOSCH : E1 90 R - 02 C0348/0713
