Bosch 0986479E62 Brake Disc - 1
Bosch 0986479E62 Brake Disc - 1
BOSCH

Bosch 0986479E62 Brake Disc

SKU: 0986479E62
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£78.83 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

JAGUAR
XE (X760)
Description Cylinder Capacity Horse Power Year
2.0 D 1999 CCM 163 HP From 03/2015
2.0 D 1999 CCM 180 HP From 03/2015
2.0 1999 CCM 200 HP From 03/2015
2.0 1999 CCM 241 HP From 03/2015
2.0 D AWD 1999 CCM 180 HP From 10/2015
2.0 1997 CCM 250 HP From 02/2017
2.0 1997 CCM 200 HP From 02/2017

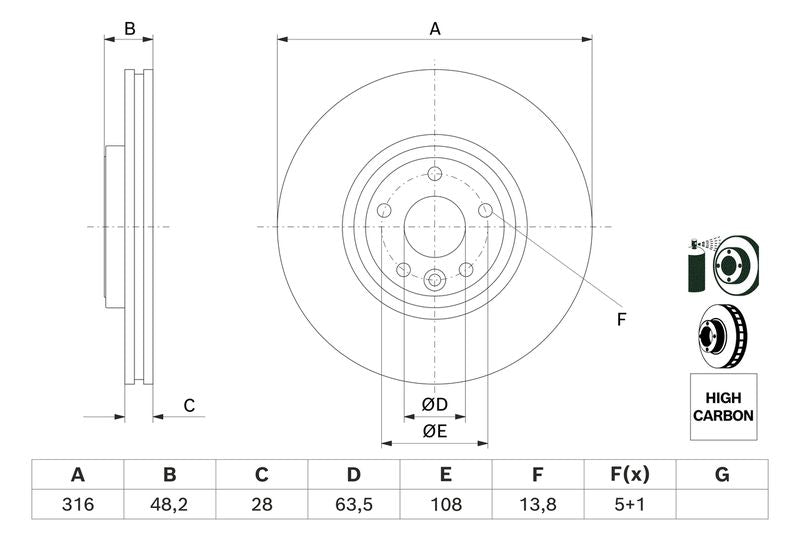

The Bosch 0986479E62 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 316 mm outer diameter, 28 mm brake disc thickness, 26 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 316
Brake Disc Thickness [mm] : 28
Minimum thickness [mm] : 26
Height [mm] : 48.2
Bolt Hole Circle Ø [mm] : 108
Brake Disc Type : Vented
Centering Diameter [mm] : 63.5
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 13.8
  • Vendor BOSCH
  • SKU 0986479E62
  • Barcode 4047026159677
  • JAGUAR : T4N1799
  • BLUE PRINT : ADJ134370
  • DELPHI : BG4765C
  • FEBI BILSTEIN : 108657
  • HELLA : 8DD 355 131-861
  • MINTEX : MDC2853C
  • SKF : VKBD 81362 V1
  • TEXTAR : 92300605
  • TRW : DF6565S
  • BOSCH : BD2663
  • BOSCH : E1 90R-02C0339/1806
