BOSCH

Bosch 0986479E80 Brake Disc

SKU: 0986479E80

Your selected vehicle

Only 1 left

Low inventory - Hurry! — Order by 17:00 for same-day dispatch

£37.91 inc. VAT

Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD

KA+ III (UK, FK)

Description	Cylinder Capacity	Horse Power	Year
1.2	1198 CCM	70 HP	From 06/2016
1.2 Ti-VCT	1196 CCM	85 HP	From 06/2016
1.5 TDCi	1499 CCM	95 HP	From 02/2018
1.5 TDCi	1499 CCM	90 HP	From 02/2018
1.2	1194 CCM	69 HP	From 02/2018
1.2	1194 CCM	85 HP	From 02/2018

KA+ III Saloon (TK, FK)

Description	Cylinder Capacity	Horse Power	Year
1.2 (TK)	1196 CCM	85 HP	From 06/2016

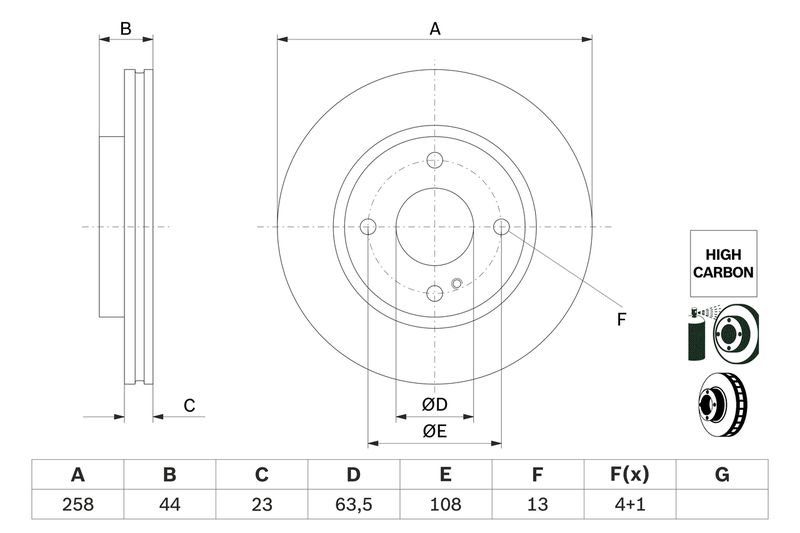

The Bosch 0986479E80 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 258 mm outer diameter, 23 mm brake disc thickness, 21 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc

Outer Diameter [mm] : 258

Brake Disc Thickness [mm] : 23

Minimum thickness [mm] : 21

Height [mm] : 44

Bolt Hole Circle Ø [mm] : 108

Brake Disc Type : Vented

Centering Diameter [mm] : 63.5

Number of Holes : 4

Surface : Coated

Machining : High-carbon

fulfils ECE standard : ECE-R90

Bore Diameter up to [mm] : 13

BLUE PRINT : ADF124309
BORG & BECK : BBD4638
BREMBO : 09.A968.21
BREMBO : 09.A968.24
BREMBO : 09.A968.2X
BREMBO : 09.A968.76
FEBI BILSTEIN : 38600
FTE : 9072025
FTE : 9082781
HELLA : 8DD 355 115-371
MEYLE : 715 521 0027
MEYLE : 783 521 0027/PD
MINTEX : MDC1907C
TEXTAR : 92176003
TEXTAR : 92176005
