Home / Car Parts / Braking / Brake Pads & Discs / Brake Discs
Bosch 0986479E84 Brake Disc - 1
Bosch 0986479E84 Brake Disc - 1
BOSCH

Bosch 0986479E84 Brake Disc

SKU: 0986479E84
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£196.43 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

BMW
X5 (E70)
Description Cylinder Capacity Horse Power Year
3.0 si 2996 CCM 272 HP 10/2006 - 09/2008
M 4395 CCM 555 HP 07/2009 - 07/2013
X5 (F15, F85)
Description Cylinder Capacity Horse Power Year
xDrive 50 i 4395 CCM 449 HP 08/2013 - 07/2018
M 50 d 2993 CCM 381 HP 12/2013 - 07/2018
xDrive 30 d 2993 CCM 258 HP 08/2013 - 07/2018
xDrive 35 i 2979 CCM 306 HP 12/2013 - 07/2018
sDrive 25 d 1995 CCM 218 HP 12/2013 - 07/2015
xDrive 25 d 1995 CCM 218 HP 12/2013 - 07/2015
xDrive 40 d 2993 CCM 313 HP 12/2013 - 07/2018
xDrive 35 i 2979 CCM 326 HP 12/2013 - 07/2018
xDrive 30 d 2993 CCM 277 HP 08/2013 - 07/2018
X6 (E71, E72)
Description Cylinder Capacity Horse Power Year
M 4395 CCM 555 HP 07/2009 - 07/2014
X6 (F16, F86)
Description Cylinder Capacity Horse Power Year
xDrive 30 d 2993 CCM 258 HP 08/2014 - 07/2019
xDrive 50 i 4395 CCM 449 HP 08/2014 - 07/2019
M 50 d 2993 CCM 381 HP 08/2014 - 07/2019
xDrive 30 d 2993 CCM 211 HP 08/2014 - 07/2019
xDrive 35 i 2979 CCM 306 HP 08/2014 - 07/2019
xDrive 40 d 2993 CCM 313 HP 12/2014 - 07/2019
xDrive 30 d 2993 CCM 277 HP 08/2014 - 07/2019
xDrive 35 i 2979 CCM 326 HP 08/2014 - 07/2019
xDrive 30 d 2993 CCM 249 HP 12/2014 - 07/2019

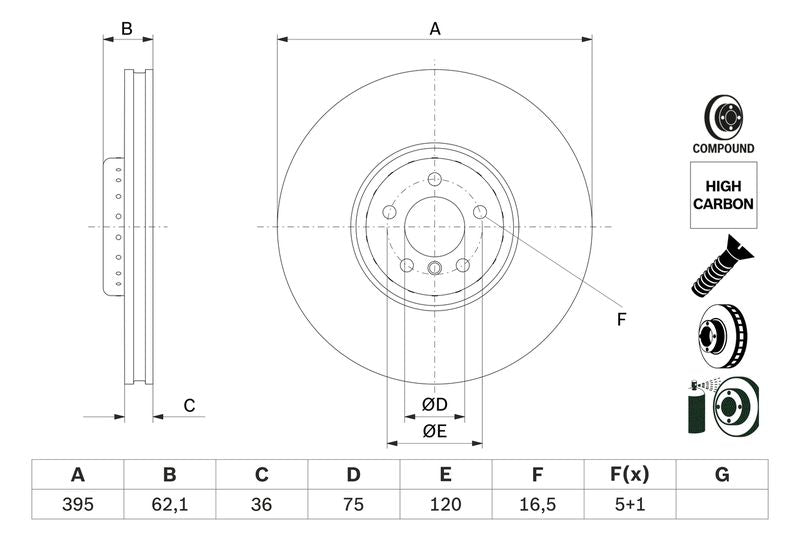

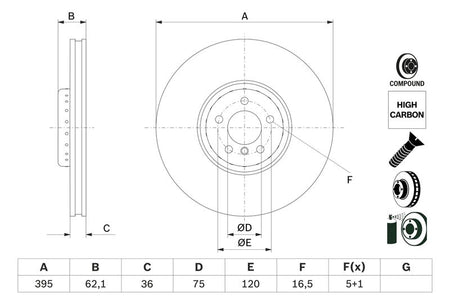

The Bosch 0986479E84 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 395 mm outer diameter, 36 mm brake disc thickness, 34.4 mm minimum thickness, and two-piece brake disc and Vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 395
Brake Disc Thickness [mm] : 36
Minimum thickness [mm] : 34.4
Height [mm] : 62.1
Bolt Hole Circle Ø [mm] : 120
Brake Disc Type : two-piece brake disc
Brake Disc Type : Vented
Centering Diameter [mm] : 75
Number of Holes : 5
Surface : Coated
Machining : High-carbon
Supplementary Article/Supplementary Info 2 : with bolts/screws
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 16.5
Paired article number : 0 986 479 E83
  • Vendor BOSCH
  • SKU 0986479E84
  • Barcode 4047026577327
  • BMW : 34 11 6 789 070
  • APEC : DSK3642
  • BLUE PRINT : ADBP430214
  • BREMBO : 09.D900.13
  • FEBI BILSTEIN : 193352
  • National : NBD2396
  • BOSCH : BD2730
  • BOSCH : E1 90R-02C0822/0065
