BOSCH

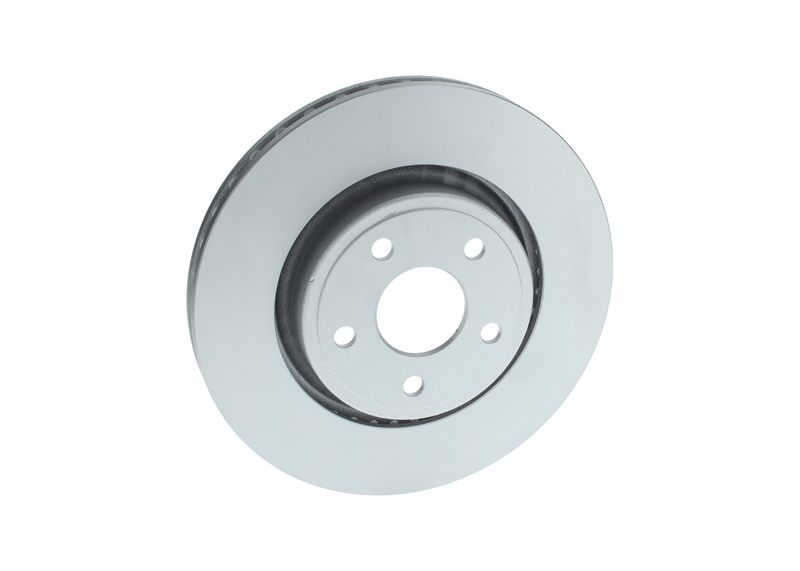

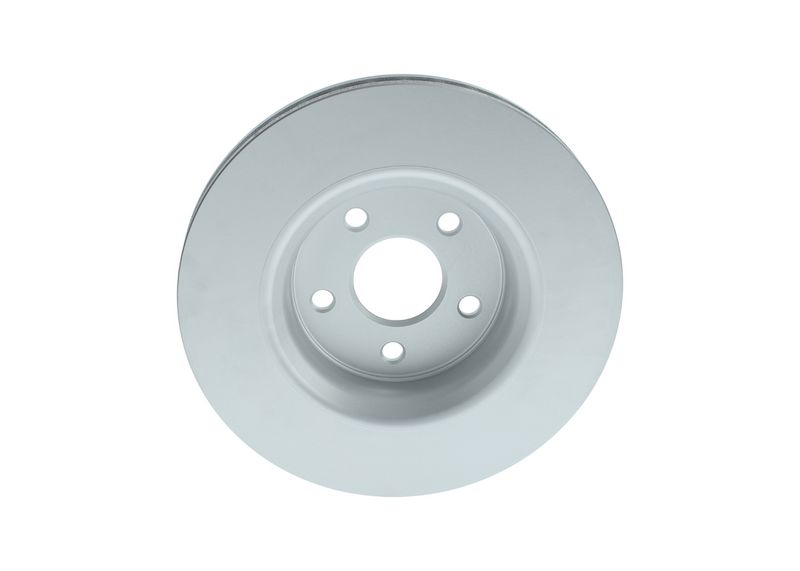

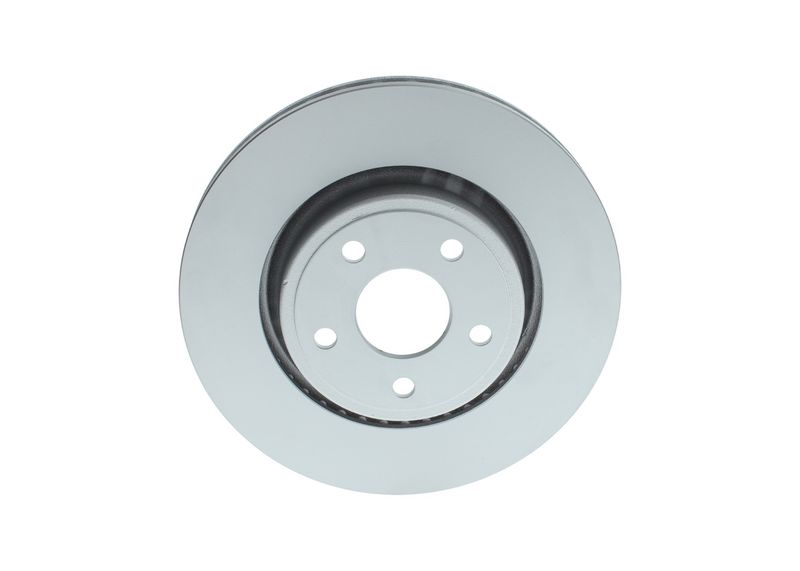

Bosch 0986479F01 Brake Disc

5.0/5 78 reviews
SKU: 0986479F01

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£78.00 inc. VAT

Complete the job

APEC — Aerosol Brake cleaner 600ml
£6.92

Pay in 3 interest-free payments with Klarna

Available at checkout. Subject to eligibility.

Free standard delivery to UK mainland

Delivery estimate confirmed at checkout. Delivery details
Pay securely with
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Klarna
  • Google Pay

Need help with fitment? 01472 869 066

Spend & Earn

Earn 2% store credit on eligible parts spend. Available 30 days after fulfilment. Sign in at checkout to use your balance.

Excludes VAT, delivery, discounts and amounts paid with store credit.

JEEP
GRAND CHEROKEE IV (WK, WK2)
Description Cylinder Capacity Horse Power Year
3.6 V6 4x4 3604 CCM 286 HP From 11/2010
5.7 V8 4x4 5654 CCM 352 HP From 11/2010
3.0 CRD V6 4x4 2987 CCM 190 HP From 02/2011
3.0 CRD V6 4x4 2987 CCM 241 HP From 02/2011
6.4 SRT8 4x4 6417 CCM 468 HP From 03/2011
3.6 V6 FlexFuel 4x4 3604 CCM 286 HP From 11/2010
3.6 V6 3604 CCM 284 HP From 11/2010
3.6 VVT 4x4 3604 CCM 290 HP From 04/2016
3.0 CRD V6 4x4 2987 CCM 250 HP From 07/2013
6.4 SRT8 4x4 6417 CCM 472 HP From 06/2011
5.7 4x4 5654 CCM 364 HP From 01/2011
3.0 CRD V6 4x4 2987 CCM 218 HP From 01/2011
6.2 i V8 4x4 6166 CCM 710 HP From 09/2017
GRAND CHEROKEE VAN (WK2)
Description Cylinder Capacity Horse Power Year
5.7 HEMI 4x4 5654 CCM 352 HP From 07/2013
3.0 CRD 2987 CCM 190 HP From 01/2017
3.0 CRD 2987 CCM 250 HP From 07/2013

The Bosch 0986479F01 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 350 mm outer diameter, 32 mm brake disc thickness, 30.5 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

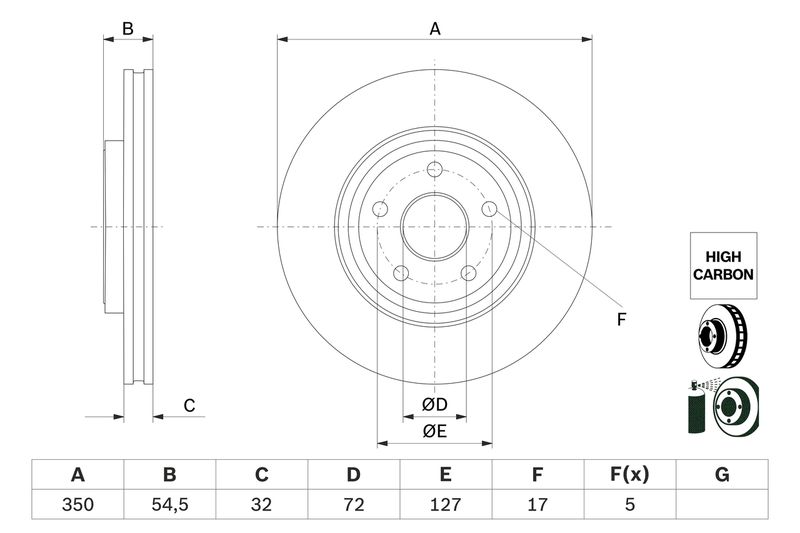

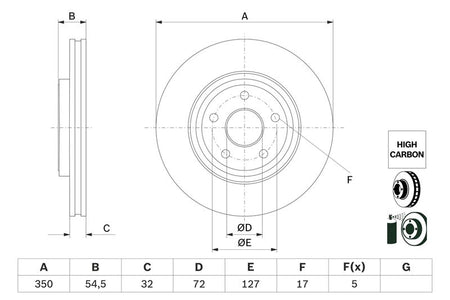

Function : Brake Disc
Outer Diameter [mm] : 350
Brake Disc Thickness [mm] : 32
Minimum thickness [mm] : 30.5
Height [mm] : 54.5
Bolt Hole Circle Ø [mm] : 127
Brake Disc Type : Vented
Centering Diameter [mm] : 72
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 17
  • Vendor BOSCH
  • SKU 0986479F01
  • Barcode 4047023066923
  • CHRYSLER : 68035 012AC 68035 012AD 68035 012AE 68240 046AA
  • DODGE : 68035 012AC 68035 012AD 68035 012AE 68240 046AA
  • JEEP : 68035 012AC 68035 012AD 68035 012AE 68240 046AA
  • BLUE PRINT : ADA104363
  • BORG & BECK : BBD6005S
  • BREMBO : 09.N236.21
  • BREMBO : 09.N236.2X
  • DELPHI : BG9121C
  • FEBI BILSTEIN : 108385
  • HELLA : 8DD 355 122-411
  • MINTEX : MDC2652
  • TEXTAR : 92272205
  • BOSCH : BD2746
  • BOSCH : E1 90R-02C0289/1912
