BOSCH

Bosch 0986479F04 Brake Disc

5.0/5 65 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479F04

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 4 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£65.03 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

VW
AMAROK (2HA, 2HB, S1B, S6B, S7A, S7B, AGD)
Description Cylinder Capacity Horse Power Year
2.0 TSI 1984 CCM 160 HP 12/2010 - 10/2016
2.0 BiTDI 4motion 1968 CCM 180 HP 11/2011 - 05/2022
2.0 BiTDI 1968 CCM 180 HP 11/2011 - 05/2022
2.0 TDI 1968 CCM 140 HP From 07/2012
2.0 TDI 4motion 1968 CCM 140 HP 06/2012 - 05/2022
3.0 TDI 4motion 2967 CCM 224 HP 06/2016 - 05/2022
3.0 TDI 4motion 2967 CCM 204 HP 06/2016 - 08/2020
3.0 TDI 4motion 2967 CCM 163 HP 06/2016 - 06/2020
3.0 TDI 2967 CCM 163 HP 06/2016 - 06/2020
3.0 TDI 4motion 2967 CCM 258 HP 05/2018 - 05/2022
AMAROK Platform/Chassis (S1B, S6B, S7B)
Description Cylinder Capacity Horse Power Year
2.0 BiTDI 4motion 1968 CCM 180 HP 09/2011 - 07/2019
2.0 TDI 4motion 1968 CCM 140 HP 09/2011 - 10/2016
3.0 TDI 4motion 2967 CCM 258 HP 05/2018 - 05/2022

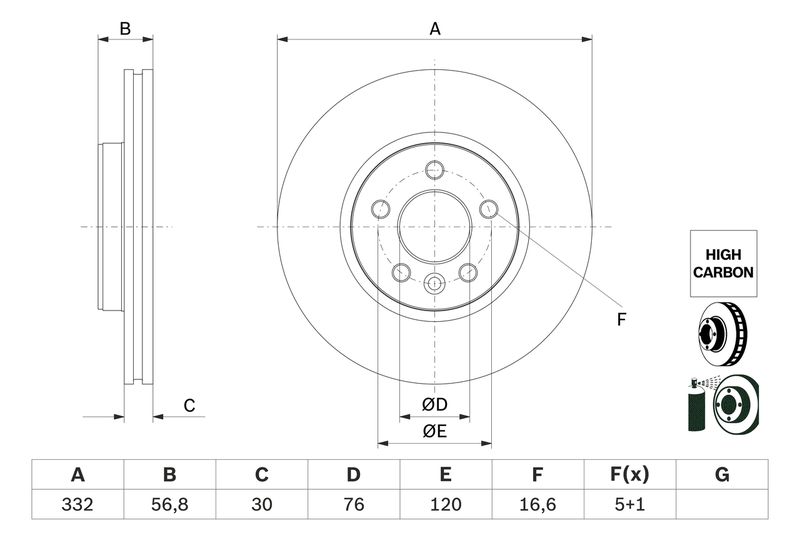

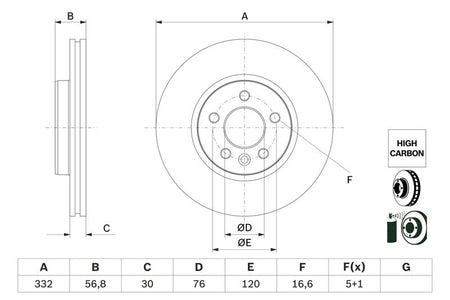

The Bosch 0986479F04 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 332 mm outer diameter, 30 mm brake disc thickness, 28 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 332
Brake Disc Thickness [mm] : 30
Minimum thickness [mm] : 28
Height [mm] : 56.8
Bolt Hole Circle Ø [mm] : 120
Brake Disc Type : Vented
Centering Diameter [mm] : 76
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 16.6
  • Vendor BOSCH
  • SKU 0986479F04
  • Barcode 4047026322002
  • AUDI : 2H6615301
  • SEAT : 2H6615301
  • SKODA : 2H6615301
  • VW : 2H6615301
  • APEC : DSK3416
  • BLUE PRINT : ADBP430100
  • BORG & BECK : BBD6233S
  • BREMBO : 09.C636.11
  • DELPHI : BG9386C
  • FEBI BILSTEIN : 175512
  • FTE : 9082659
  • HELLA : 8DD 355 132-561
  • MINTEX : MDC2903C
  • SKF : VKBD 81403 V1
  • TEXTAR : 92307700
  • TEXTAR : 92307705
  • VALEO : 673450
  • BOSCH : BD2749
  • BOSCH : E1 90 R - 02 C0348/0665
