BOSCH

Bosch 0986479F07 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479F07

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock
Out of Stock
£74.30 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

TOYOTA
FJ CRUISER (GSJ1_)
Description Cylinder Capacity Horse Power Year
4.0 4WD (GSJ15_, GSJ15W) 3956 CCM 276 HP 06/2005 - 01/2018
4.0 4WD (GSJ15_) 3956 CCM 260 HP 01/2010 - 06/2014
4.0 4WD (GSJ15_) 3956 CCM 242 HP 01/2006 - 01/2018
HILUX VIII Pickup (_N1_)
Description Cylinder Capacity Horse Power Year
2.8 GD-6 48V MHEV 4WD 2755 CCM 204 HP From 03/2024
2.8 MHEV 4WD 2755 CCM 230 HP From 11/2024
LAND CRUISER PRADO (_J15_)
Description Cylinder Capacity Horse Power Year
4.0 V6 VVT-i (GRJ150_, GRJ125_, GRJ150) 3956 CCM 282 HP From 08/2009
3.0 D-4D (KDJ155_, KDJ150_, KDJ150R, KDJ155R) 2982 CCM 190 HP From 08/2009
2.7 (TRJ150_, TRJ155_, TRJ150R, TRJ150W) 2694 CCM 163 HP From 08/2009
3.0 D-4D (KDJ150_, KDJ150, KDJ155) 2982 CCM 173 HP From 08/2009
4.0 V6 VVTi (GRJ150_, GRJ150R, GRJ150W) 3956 CCM 249 HP From 11/2012
4.0 V6 Dual VVTi (GRJ150_) 3956 CCM 279 HP From 08/2009
4.0 V6 VVTi (GRJ150) 3956 CCM 275 HP From 08/2009
2.8 D-4D (GDJ150_, GDJ155_, GDJ150, GDJ151) 2755 CCM 177 HP From 06/2015
3.5 (GRJ152_) 3456 CCM 280 HP From 09/2015
2.8 D-4D (GDJ150, GDJ155) 2755 CCM 200 HP From 10/2018
2.8 D-4D (GDJ155, GDJ150) 2755 CCM 204 HP From 07/2020
2.8 D-4D 2755 CCM 230 HP From 03/2024
LAND CRUISER VAN (_J15_)
Description Cylinder Capacity Horse Power Year
3.0 D4d 4WD (KDJ155, KDJ150) 2982 CCM 190 HP From 01/2011

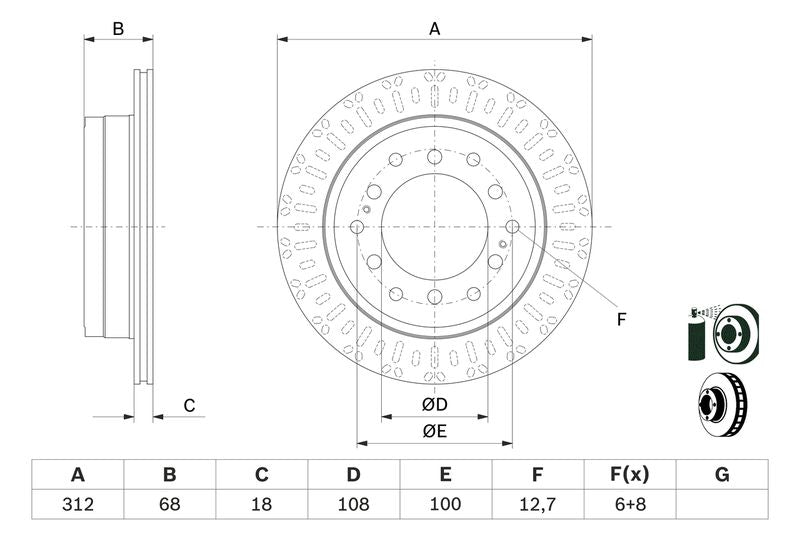

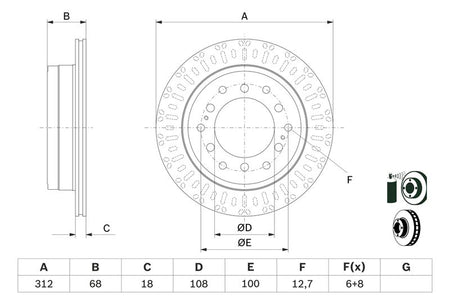

The Bosch 0986479F07 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 312 mm outer diameter, 18 mm brake disc thickness, 16 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 312
Brake Disc Thickness [mm] : 18
Minimum thickness [mm] : 16
Height [mm] : 68
Bolt Hole Circle Ø [mm] : 139.7
Brake Disc Type : Vented
Centering Diameter [mm] : 108
Number of Holes : 6
Surface : Coated
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14.5
  • Vendor BOSCH
  • SKU 0986479F07
  • Barcode 4047026262148
  • TOYOTA : 42431 60311 424310K230
  • LEXUS : 424310K230 4243160311
  • APEC : DSK2939
  • APEC : SDK6711
  • BLUE PRINT : ADT343281
  • BORG & BECK : BBD5427
  • BREMBO : 09.A334.20
  • BREMBO : 09.A334.21
  • BREMBO : 09.A334.2S
  • BREMBO : 09.A334.2X
  • DELPHI : BG4747C
  • FEBI BILSTEIN : 108388
  • HELLA : 8DD 355 122-711
  • MINTEX : MDC2687
  • NAPA : NBD5820
  • National : NBD2370
  • SKF : VKBD 90430 V2
  • TEXTAR : 92231003
  • TRW : DF6342
  • BOSCH : BD2752
  • BOSCH : E1 90R-02C0501/1365
