BOSCH

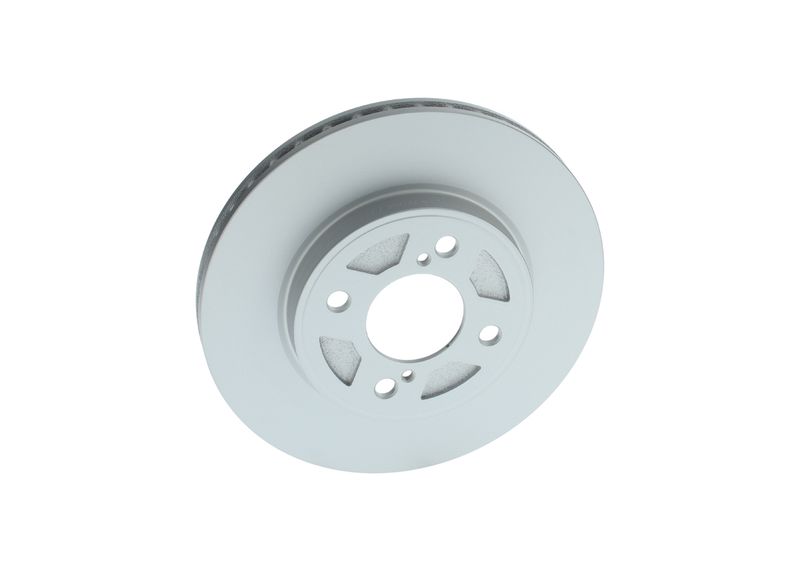

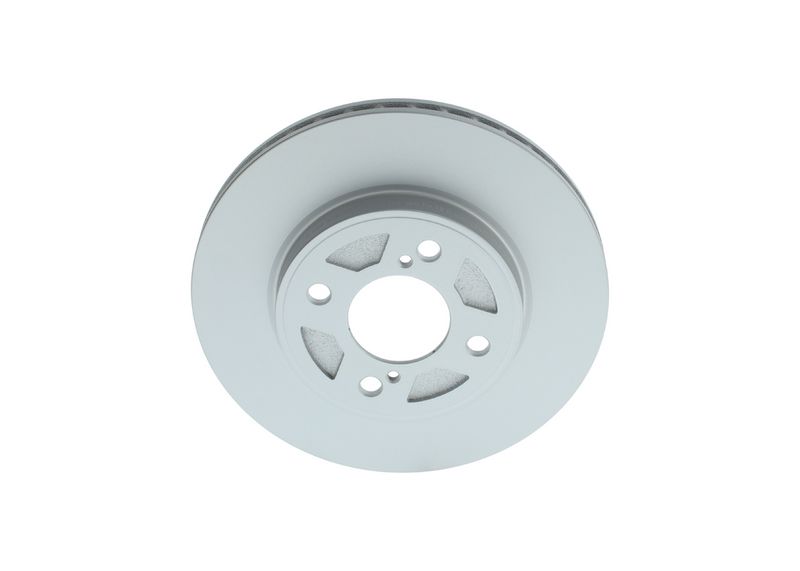

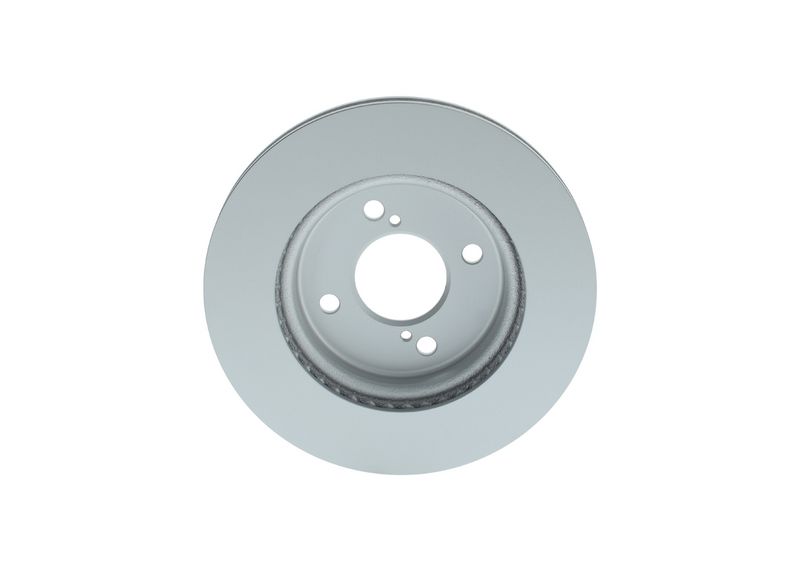

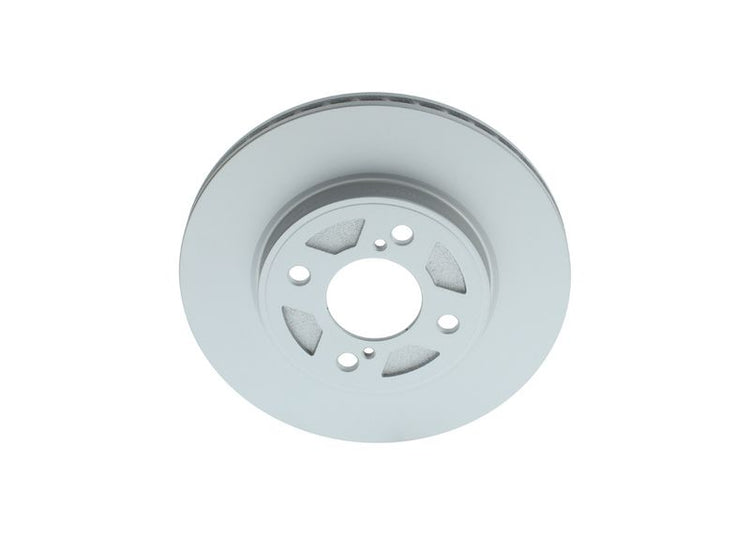

Bosch 0986479F37 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479F37

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Out of stock
Out of Stock
£57.42 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

SUZUKI
BALENO (FW, EW)
Description Cylinder Capacity Horse Power Year
1.0 (A1K310) 998 CCM 111 HP From 02/2016
1.2 (A1K412) 1242 CCM 90 HP From 02/2016
1.2 Hybrid (A1K412) 1242 CCM 90 HP From 02/2016
SWIFT V (AZ)
Description Cylinder Capacity Horse Power Year
1.0 (A2L310) 998 CCM 111 HP From 04/2017
1.0 SHVS (A2L310) 998 CCM 111 HP From 04/2017
1.2 (A2L412, ZC83S) 1242 CCM 90 HP From 04/2017
1.2 SHVS (A2L412) 1242 CCM 90 HP From 04/2017
1.2 SHVS AllGrip (A2L412) 1242 CCM 90 HP From 04/2017
1.2 AllGrip (A2L412) 1242 CCM 90 HP From 04/2017
1.2 Hybrid (Mild Hybrid) (A2L412) 1197 CCM 83 HP From 06/2020
1.2 Hybrid (Mild Hybrid) AllGrip (A2L412) 1197 CCM 83 HP From 06/2020
SWIFT VI (ZD_, ZC_)
Description Cylinder Capacity Horse Power Year
1.2 VVT Hybrid (ZCEDS, AOL312) 1197 CCM 83 HP From 12/2023
1.2 VVT Hybrid AllGrip (ZDEDS, AOL312) 1197 CCM 83 HP From 12/2023
1.2 VVT Hybrid (ZCEDS, AOL312) 1197 CCM 82 HP From 11/2024
1.2 VVT Hybrid AllGrip (AOL312, ZCEDS) 1197 CCM 82 HP From 11/2024

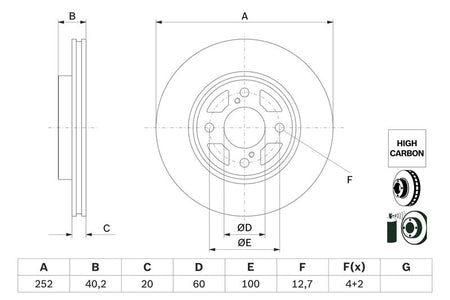

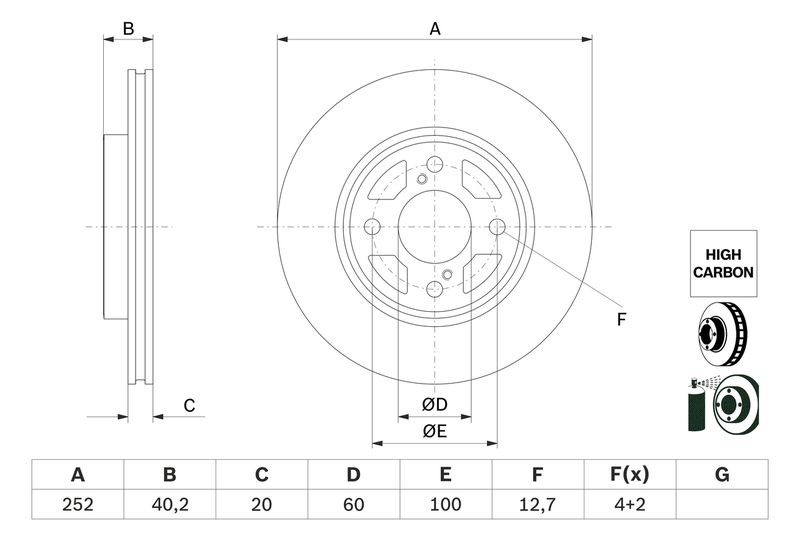

The Bosch 0986479F37 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 252 mm outer diameter, 20 mm brake disc thickness, 18 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 252
Brake Disc Thickness [mm] : 20
Minimum thickness [mm] : 18
Height [mm] : 40.2
Bolt Hole Circle Ø [mm] : 100
Brake Disc Type : Vented
Centering Diameter [mm] : 60
Number of Holes : 4
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.7
  • Vendor BOSCH
  • SKU 0986479F37
  • Barcode 4047026368437
  • SUZUKI : 55311 77J00 000 55311M69P10 55311-52R50 55311-58M00 55311-58M50 55311-63J00 55311-71L00 55311-77J00
  • CHANGAN : B5010630001
  • APEC : DSK3378
  • APEC : SDK6944
  • BLUE PRINT : ADK84321
  • BLUE PRINT : ADK84349
  • BLUE PRINT : ADK84350
  • BORG & BECK : BBD5520
  • BREMBO : 09.D247.11
  • BREMBO : 09.F365.11
  • DELPHI : BG4971C
  • Fahren : FBD6944
  • FEBI BILSTEIN : 170724
  • FEBI BILSTEIN : 170725
  • FEBI BILSTEIN : 28435
  • FTE : 9082813
  • HELLA : 8DD 355 132-051
  • MEYLE : 33-15 521 0022/PD
  • MINTEX : MDC2869C
  • NAPA : NBD5158
  • TEXTAR : 92303703
  • TRW : DF6738
  • BOSCH : BD2782
  • BOSCH : E1 90 R - 02 C0766/0028
