Bosch 0986479F38 Brake Disc - 1
Bosch 0986479F38 Brake Disc - 1
BOSCH

Bosch 0986479F38 Brake Disc

5.0/5 60 AutoMotoPart customer reviews Verified reviews across our products & service
SKU: 0986479F38

Check product compatibility

Enter your registration or select your vehicle to check this product fits.

Only 2 left
Low inventory - Hurry! — Orders placed by 17:00 are usually dispatched the same working day
£72.17 inc. VAT
Pay in 3 interest-free payments with Klarna
Free UK mainland standard delivery 14-day returns

Need help choosing the right part? Call 01472 869 066

SUZUKI
SWIFT V (AZ)
Description Cylinder Capacity Horse Power Year
1.0 (A2L310) 998 CCM 111 HP From 04/2017
1.0 SHVS (A2L310) 998 CCM 111 HP From 04/2017
1.2 (A2L412, ZC83S) 1242 CCM 90 HP From 04/2017
1.2 SHVS (A2L412) 1242 CCM 90 HP From 04/2017
1.2 SHVS AllGrip (A2L412) 1242 CCM 90 HP From 04/2017
1.2 AllGrip (A2L412) 1242 CCM 90 HP From 04/2017
1.2 SHVS AllGrip (ZD53S) 1242 CCM 91 HP From 01/2017
1.2 Hybrid (Mild Hybrid) (A2L412) 1197 CCM 83 HP From 06/2020
1.2 Hybrid (Mild Hybrid) AllGrip (A2L412) 1197 CCM 83 HP From 06/2020

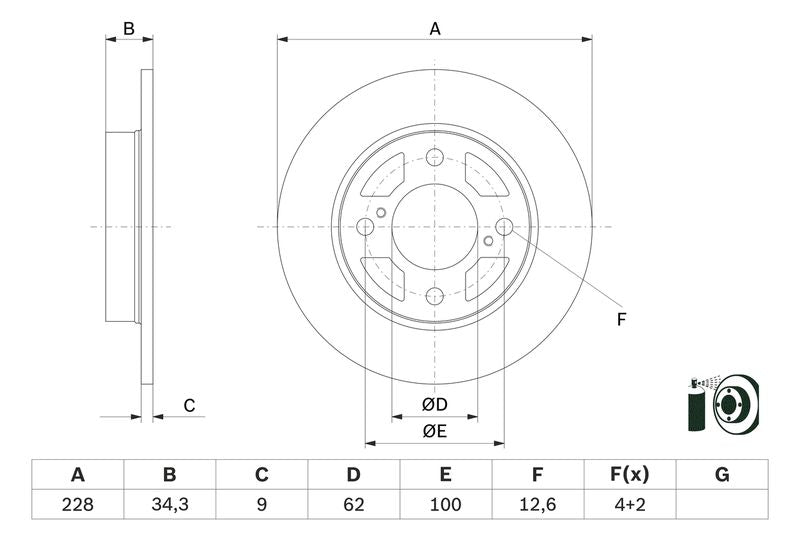

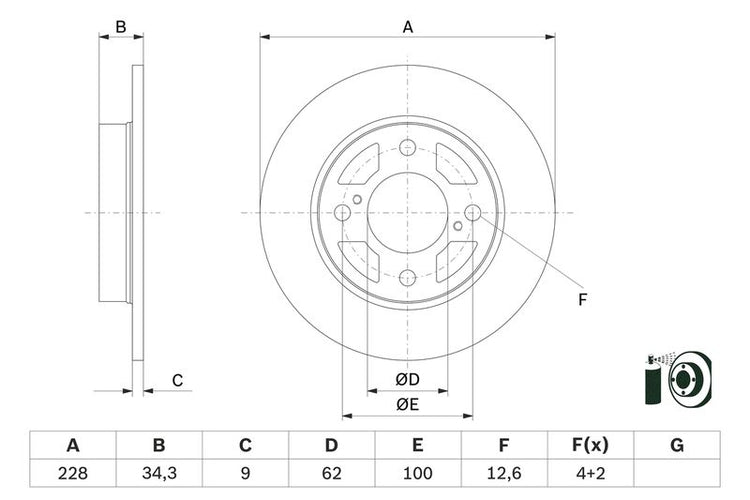

The Bosch 0986479F38 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 228 mm outer diameter, 9 mm brake disc thickness, 8 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 228
Brake Disc Thickness [mm] : 9
Minimum thickness [mm] : 8
Height [mm] : 34.3
Bolt Hole Circle Ø [mm] : 100
Brake Disc Type : solid
Centering Diameter [mm] : 62
Number of Holes : 4
Surface : Coated
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 12.6
  • Vendor BOSCH
  • SKU 0986479F38
  • Barcode 4047026368444
  • SUZUKI : 55611-52R00
  • BLUE PRINT : ADK84351
  • BLUE PRINT : ADK84352
  • BORG & BECK : BBD5530
  • BREMBO : 08.D248.11
  • HELLA : 8DD 355 132-041
  • MEYLE : 33-15 523 0010
  • MINTEX : MDC2868C
  • TEXTAR : 92303603
  • BOSCH : BD2783
  • BOSCH : E1 90 R - 02 C0767/0010
