BOSCH

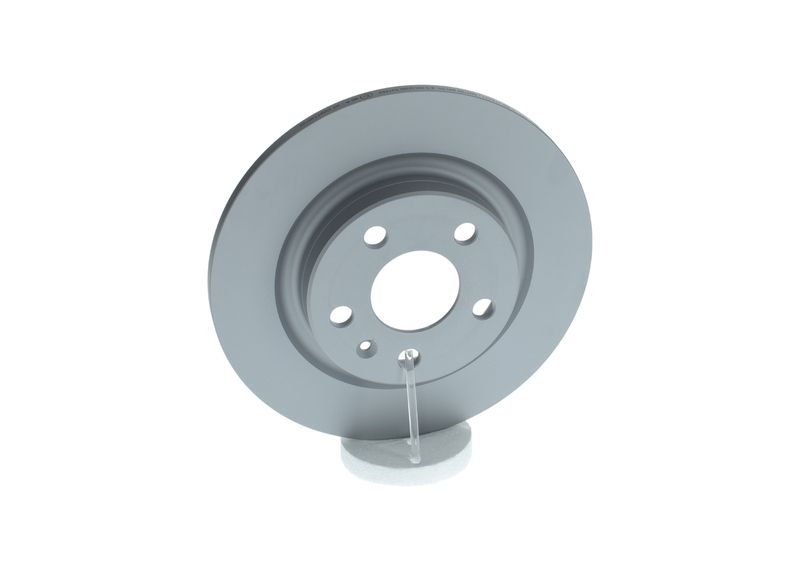

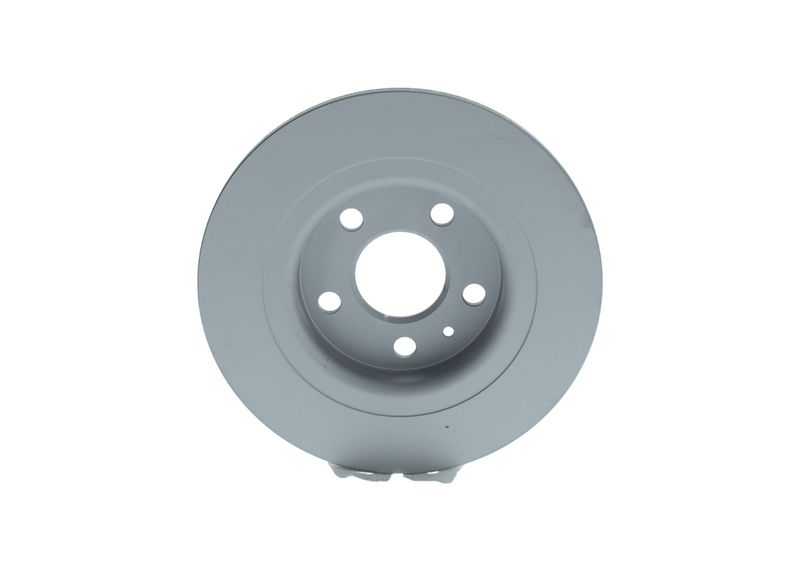

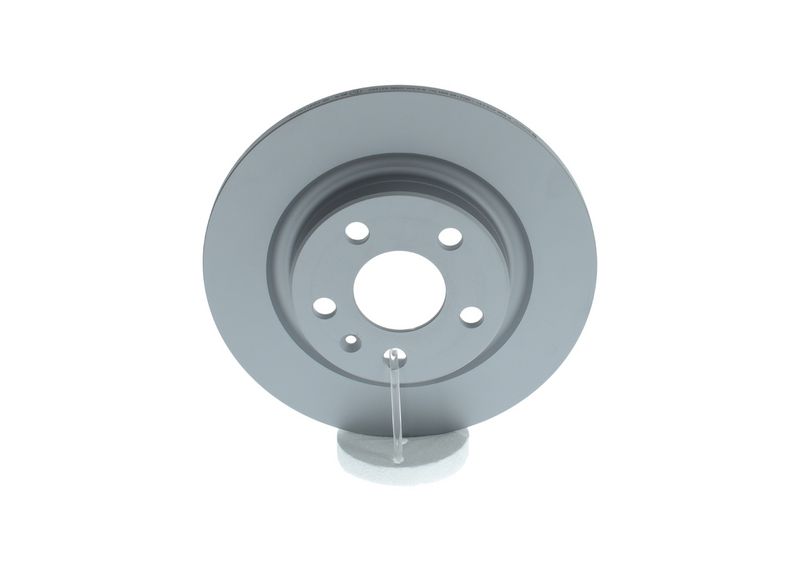

Bosch 0986479F41 Brake Disc

SKU: 0986479F41
Your selected vehicle
Only 1 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£36.29 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

VOLVO
XC40 (536)
Description Cylinder Capacity Horse Power Year
T5 AWD 1969 CCM 247 HP 10/2017 - 09/2021
D4 AWD 1969 CCM 190 HP 10/2017 - 09/2021
T4 1969 CCM 190 HP 09/2018 - 12/2021
T4 AWD 1969 CCM 190 HP From 09/2018
T3 1477 CCM 156 HP 03/2018 - 03/2019
D3 1969 CCM 150 HP 09/2018 - 09/2021
D3 AWD 1969 CCM 150 HP 09/2018 - 09/2021
T5 AWD 1969 CCM 249 HP 10/2017 - 12/2022
D4 Polestar AWD 1969 CCM 200 HP 01/2019 - 09/2021
T3 1477 CCM 163 HP 03/2019 - 12/2022
T5 Plug-in Hybrid 1477 CCM 262 HP From 06/2019
T2 1477 CCM 129 HP From 06/2019
T5 Polestar AWD 1969 CCM 249 HP 10/2017 - 09/2019
B4 Mild-Hybrid AWD 1969 CCM 197 HP From 09/2019
B4 Mild-Hybrid 1969 CCM 197 HP From 09/2019

The Bosch 0986479F41 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 280 mm outer diameter, 12 mm brake disc thickness, 9 mm minimum thickness, and solid disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 280
Brake Disc Thickness [mm] : 12
Minimum thickness [mm] : 9
Height [mm] : 37
Bolt Hole Circle Ø [mm] : 108
Brake Disc Type : solid
Centering Diameter [mm] : 63.6
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 16
  • Vendor BOSCH
  • SKU 0986479F41
  • Barcode 4047026576122
  • VOLVO : 31471476
  • APEC : DSK3443
  • BLUE PRINT : ADF124373
  • BORG & BECK : BBD5624
  • BREMBO : 08.D893.11
  • BREMBO : 08.D893.1X
  • DELPHI : BG5069C
  • FEBI BILSTEIN : 107517
  • FTE : 9082648
  • HELLA : 8DD 355 133-411
  • MEYLE : 515 523 0023/PD
  • MINTEX : MDC2983C
  • NAPA : NBD5910
  • TEXTAR : 92323803
  • VALEO : 673382
  • BOSCH : BD2786
  • BOSCH : E1 90 R - 02 C0371/0725
