BOSCH

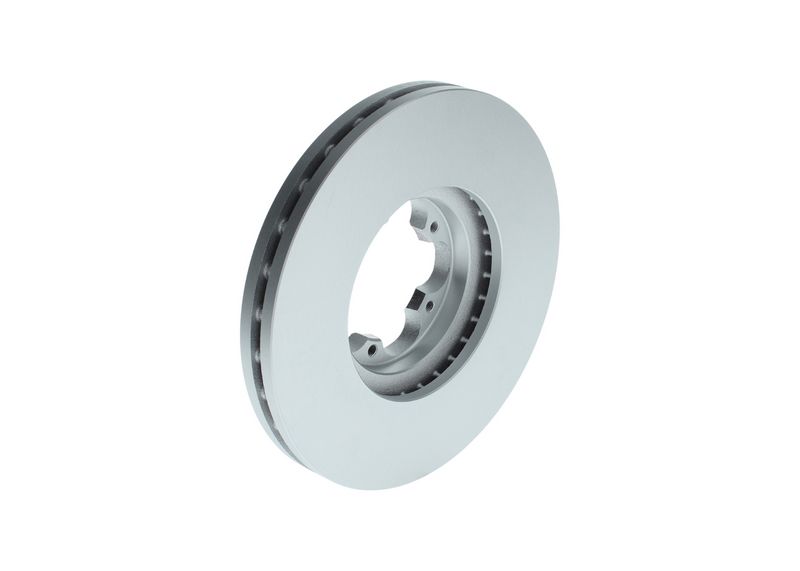

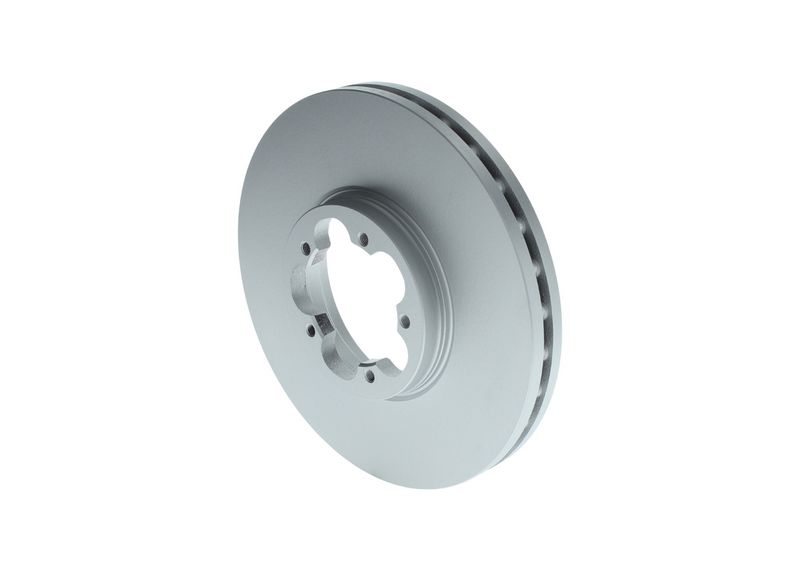

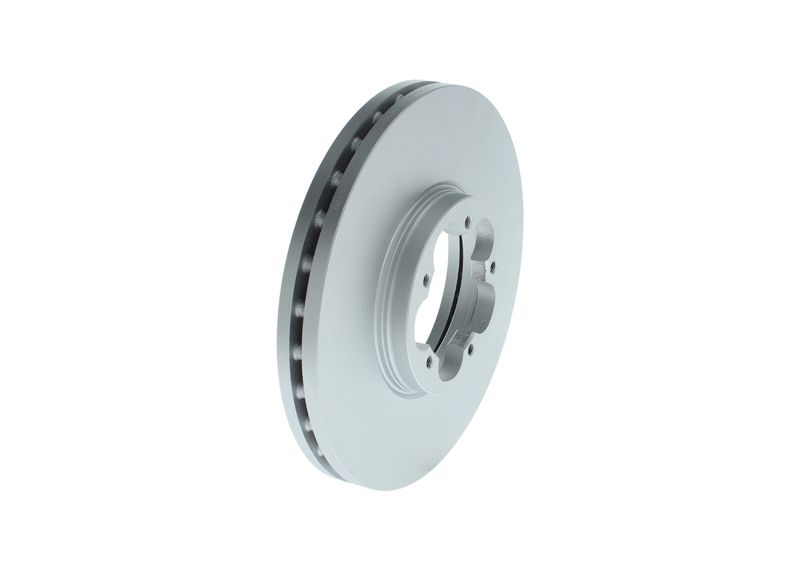

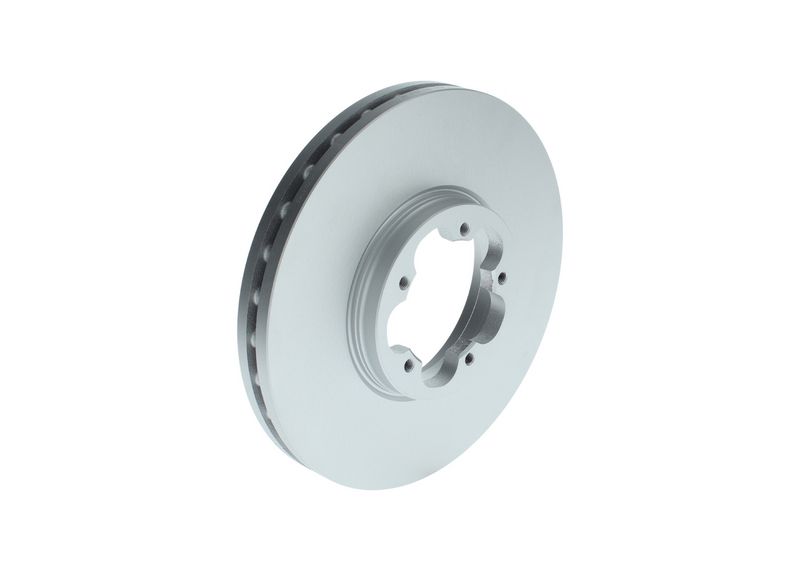

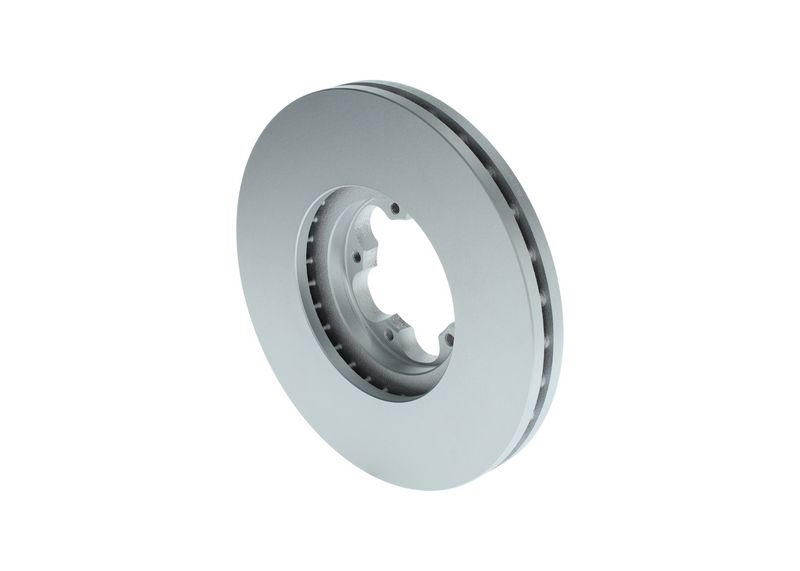

Bosch 0986479F46 Brake Disc

SKU: 0986479F46
Your selected vehicle
Only 4 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£57.18 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

FORD
TOURNEO CUSTOM V362 Bus (F3)
Description Cylinder Capacity Horse Power Year
2.0 EcoBlue 1995 CCM 105 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 130 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 170 HP 12/2015 - 12/2023
TRANSIT CUSTOM V362 Bus (F3)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 125 HP 09/2012 - 12/2015
2.2 TDCi 2198 CCM 155 HP 09/2012 - 12/2015
2.0 EcoBlue 1995 CCM 105 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 130 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 170 HP 12/2015 - 12/2023
TRANSIT CUSTOM V362 Van (FY, FZ)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 125 HP 09/2012 - 04/2016
2.2 TDCi 2198 CCM 155 HP 09/2012 - 12/2015
2.0 EcoBlue 1995 CCM 105 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 130 HP 12/2015 - 12/2023
2.0 EcoBlue 1995 CCM 170 HP 12/2015 - 12/2023
TRANSIT V363 Platform/Chassis (FED, FFD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 135 HP 08/2013 - 12/2018
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024
2.0 EcoBlue RWD 1995 CCM 105 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 130 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 170 HP 03/2016 - 06/2024
TRANSIT V363 Bus (FAD, FBD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 155 HP 12/2014 - 12/2018
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024
2.2 TDCi RWD 2198 CCM 135 HP 08/2013 - 12/2018
2.2 TDCi All-wheel Drive 2198 CCM 155 HP 08/2015 - 12/2018
TRANSIT V363 Van (FCD, FDD)
Description Cylinder Capacity Horse Power Year
2.2 TDCi RWD 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 155 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 4x4 2198 CCM 125 HP 08/2013 - 12/2018
2.2 TDCi 2198 CCM 100 HP 08/2013 - 12/2018
2.2 TDCi RWD 2198 CCM 100 HP 08/2013 - 12/2018
2.0 EcoBlue 1995 CCM 130 HP From 03/2016
2.0 EcoBlue 1995 CCM 105 HP From 03/2016
2.0 EcoBlue 1995 CCM 170 HP 03/2016 - 06/2024
2.0 EcoBlue RWD 1995 CCM 105 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 130 HP From 03/2016
2.0 EcoBlue RWD 1995 CCM 170 HP 03/2016 - 06/2024
2.0 EcoBlue 4x4 1995 CCM 130 HP From 01/2017

The Bosch 0986479F46 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 308 mm outer diameter, 33 mm brake disc thickness, 30 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

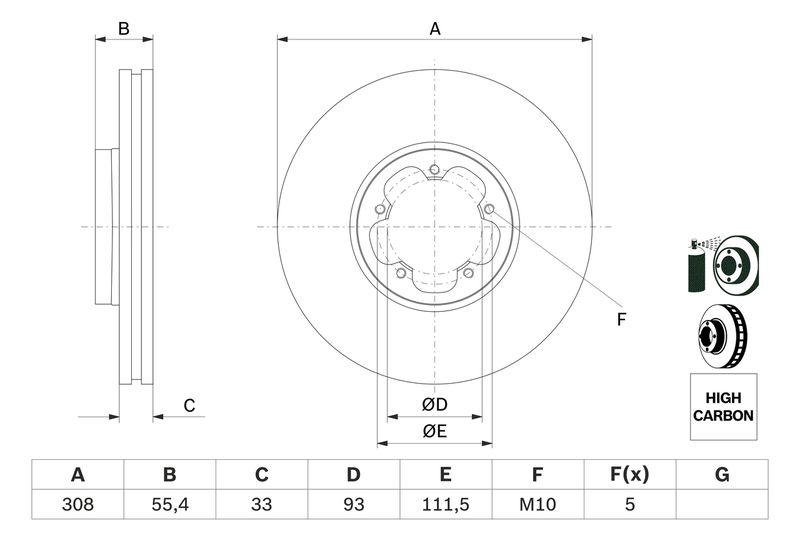

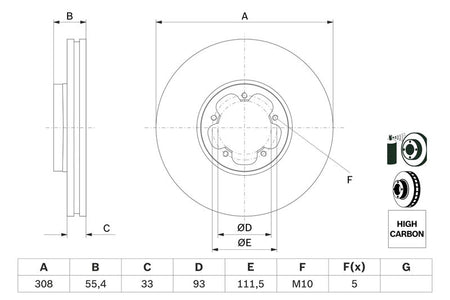

Function : Brake Disc
Outer Diameter [mm] : 308
Brake Disc Thickness [mm] : 33
Minimum thickness [mm] : 30
Height [mm] : 55.4
Bolt Hole Circle Ø [mm] : 111.5
Brake Disc Type : Vented
Centering Diameter [mm] : 93
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
  • Vendor BOSCH
  • SKU 0986479F46
  • Barcode 4047026417364
  • FORD : BK211125AC 1842633 1867729 2110014 2110200 2256034
  • BLUE PRINT : ADF124347
  • BORG & BECK : BBD6071S
  • BREMBO : 09.C243.10
  • DELPHI : BG9176C
  • FEBI BILSTEIN : 104497
  • FTE : 9071222
  • HELLA : 8DD 355 123-131
  • MEYLE : 715 521 0038/PD
  • MINTEX : MDC2719
  • SKF : VKBD 80211 V1
  • TEXTAR : 92273003
  • BOSCH : BD2791
  • BOSCH : E1 90R-02C0339/1783
