BOSCH

Bosch 0986479F49 Brake Disc

SKU: 0986479F49
Your selected vehicle
Only 2 left
Low inventory - Hurry! — Order by 17:00 for same-day dispatch
£42.98 inc. VAT
Pay in 3 interest-free payments with Klarna

Standard delivery

Free standard delivery is available for eligible UK mainland orders. Charges may apply for express services and non-mainland destinations. See our delivery information for details.

TOYOTA
C-HR (_X1_)
Description Cylinder Capacity Horse Power Year
1.2 (NGX10_, NGX10R) 1197 CCM 116 HP From 10/2016
1.2 4WD (NGX50_, NGX50R) 1197 CCM 116 HP From 10/2016
1.8 Hybrid (ZYX10_, ZYX11_, ZYX10R, ZYX11R) 1798 CCM 122 HP From 10/2016
1.2 4WD (NGX50) 1197 CCM 131 HP From 10/2016
2.0 Hybrid (MAXH10) 1987 CCM 184 HP From 10/2019
C-HR VAN (_X1_)
Description Cylinder Capacity Horse Power Year
1.8 Hybrid (ZYX10, ZYX11) 1798 CCM 122 HP From 10/2016
COROLLA Hatchback (_E21_, _EA1_, _EH1_)
Description Cylinder Capacity Horse Power Year
2.0 Hybrid (MZEH12) 1987 CCM 180 HP From 02/2019
2.0 Hybrid (MZEH12) 1987 CCM 184 HP From 05/2021
2.0 Hybrid (MZEH19) 1987 CCM 196 HP From 01/2023
2.0 Hybrid (MZEH19L) 1987 CCM 178 HP From 02/2025
COROLLA Estate (_E21_)
Description Cylinder Capacity Horse Power Year
2.0 Hybrid (MZEH12) 1987 CCM 180 HP From 02/2019
2.0 Hybrid (MZEH12) 1987 CCM 184 HP From 05/2021
2.0 Hybrid (MZEH19) 1987 CCM 196 HP From 01/2023
2.0 Hybrid (MZEH19L) 1987 CCM 178 HP From 02/2025

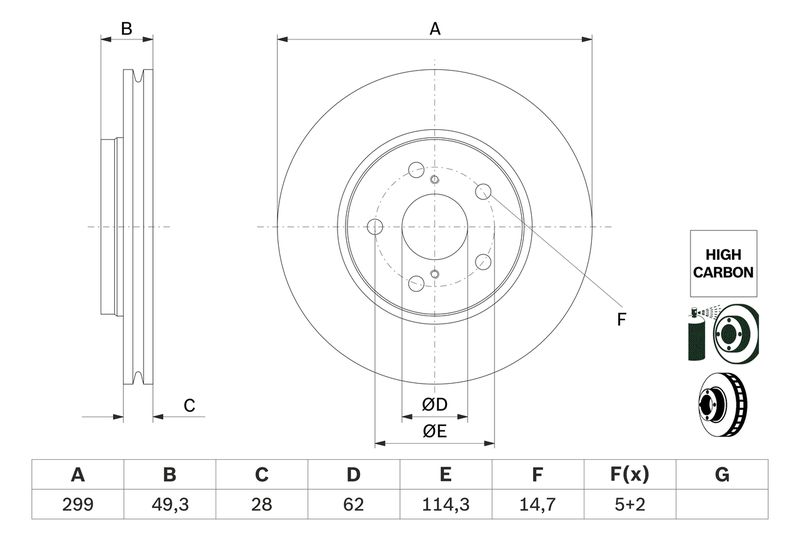

The Bosch 0986479F49 Brake Disc is a replacement braking component that provides the rotating friction surface acted on by the pads or shoes. Its catalogue specification records 299 mm outer diameter, 28 mm brake disc thickness, 25 mm minimum thickness, and vented disc construction. Match the reference, diameter, thickness, mounting pattern and vehicle application before fitting; braking components should be installed and checked by a competent person.

Function : Brake Disc
Outer Diameter [mm] : 299
Brake Disc Thickness [mm] : 28
Minimum thickness [mm] : 25
Height [mm] : 49.3
Bolt Hole Circle Ø [mm] : 114.3
Brake Disc Type : Vented
Centering Diameter [mm] : 62
Number of Holes : 5
Surface : Coated
Machining : High-carbon
fulfils ECE standard : ECE-R90
Bore Diameter up to [mm] : 14.7
  • Vendor BOSCH
  • SKU 0986479F49
  • Barcode 4047026370133
  • TOYOTA : 43512F4010
  • APEC : DSK3373
  • APEC : SDK6961
  • BLUE PRINT : ADT343316
  • BORG & BECK : BBD5502
  • BREMBO : 09.D417.11
  • BREMBO : 09.D417.1S
  • DELPHI : BG4952C
  • FTE : 9082638
  • MEYLE : 30-15 521 0134/PD
  • MINTEX : MDC2934C
  • NAPA : NBD5864
  • SKF : VKBD 81391 V1
  • TEXTAR : 92315703
  • TRW : DF6986S
  • VALEO : 672703
  • BOSCH : BD2794
  • BOSCH : E1 90 R - 02 C0381/0618
